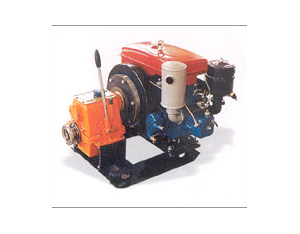

Single Cylinder Diesel Engine (11.8-17kW)
Inquire NowDescription
The Single Cylinder Diesel Engine is a powerful and versatile engine designed for a variety of applications. With a rated power range of 11.8 to 17 kW, this engine is perfect for tractors, three-wheelers, water pumps, power tillers, boats, generators, and grain processing machinery. Its robust construction and efficient performance make it an ideal choice for both commercial and agricultural use. Featuring advanced technology, this water-cooled or hopper-cooled, 4-stroke engine ensures optimal power output with minimal fuel consumption, allowing you to achieve more with less.
Specifications
| Attribute | Details |
|---|---|
| Model | 1105/1110/1115/1118/1120 |
| Type | Water forced circulation or hopper-cooled, 4-stroke, D.I. |
| Bore (mm) | 105/110/115/118/120 |
| Total Displacement (L) | 1-1.3 |
| Rated Power/Speed (kW/rpm) (12h) | 11.8-17/2000-2200 |
| Max. Torque (N.m) | 57-90 |
| Fuel Consumption (g/kW.h) | 238-242 |
| Starting Method | Hand cranking or electric starting |
| Net Weight (kg) | 180-200 |
| Applications | Tractor, three-wheeler, water pump, power tiller, boat, generator, and grain processing machinery. |
Additional Information
For optimal performance and longevity, regular maintenance is recommended. Ensure proper fuel quality and check for any necessary lubrication before operation. The engine can be started using either hand cranking or electric methods, providing flexibility in various situations.
