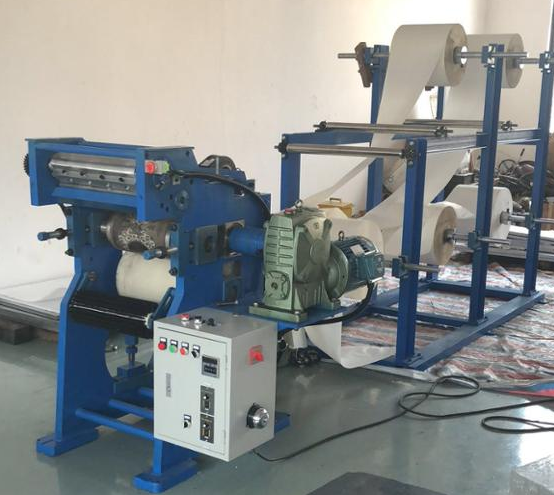

Single output paper doily machine
Inquire NowDescription
The Single Output Paper Doily Machine is designed for high-efficiency production of various paper doily shapes, including round, square, and oval. This advanced machine utilizes 45-300g pure white paper, achieving a remarkable production output of 55,000 pieces per hour in a 7.5-inch (Ø190mm) round shape. It features an automatic counting alarm and a pole-changing control main motor for streamlined operation. Capable of producing doilies with diameters ranging from 4.5 inches to 16.5 inches, this machine is perfect for businesses looking to enhance their output while maintaining high precision and stability.
Engineered for performance, it operates quietly, is energy-efficient, and is easy to install and debug. The machine’s robust structure ensures durability, making it a reliable choice for any production line.
Specifications
| Attribute | Details |
|---|---|
| Paper Weight | 45-300g pure white paper |
| Production Output | 55,000 pcs/hour (7.5 inches, Ø190mm) |
| Diameter Range | 4.5 inches to 16.5 inches (100mm to 410mm) |
| Maximum Size | Ø16.5 inches (25 x 16.5 inches for rectangle) |
| Power Consumption | Less than 4kW |
| Dimensions | 4500 x 1500 x 1900 mm (L x W x H) |
| Weight | 1800 kg |
Additional Information
For optimal performance, ensure the machine is set up in a well-ventilated area. Regular maintenance checks are recommended to keep the machine running smoothly. If larger doily sizes are required, please inform us before placing your order to receive the appropriate machine specifications.
