Single output paper doily machine
Inquire NowDescription

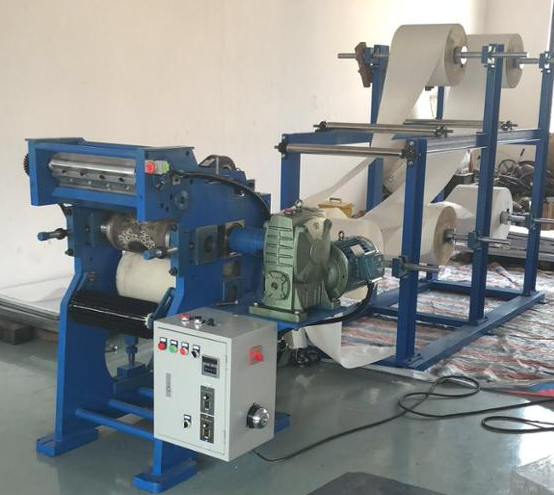

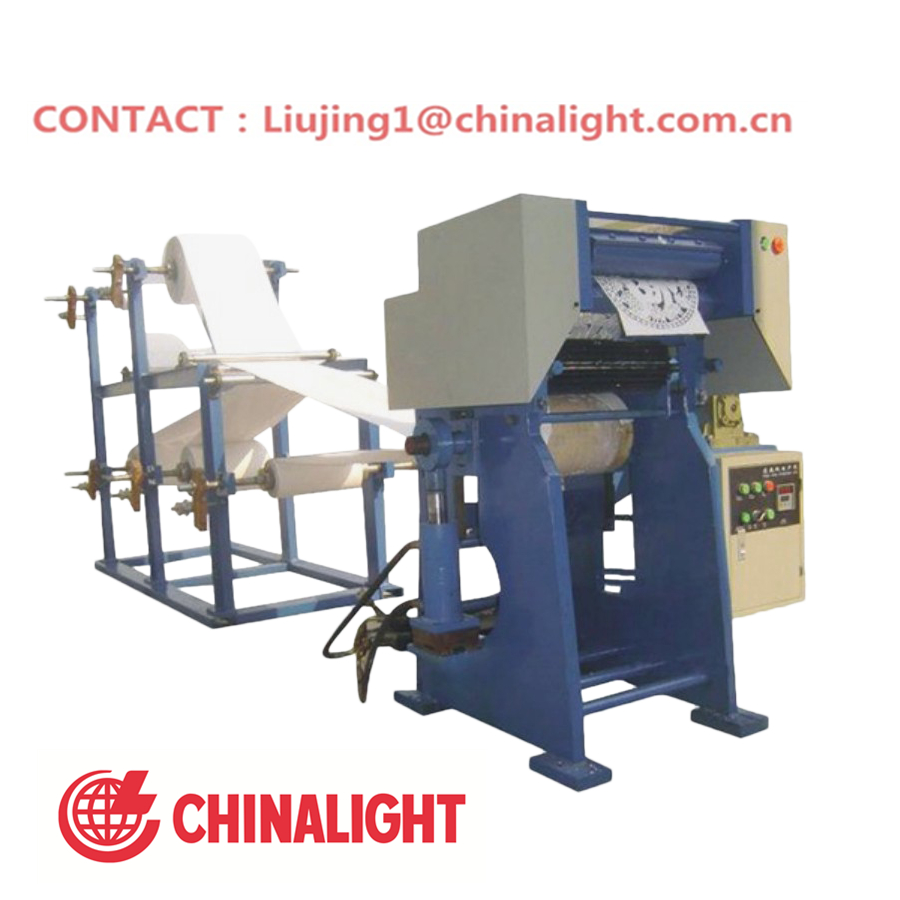

The Single Output Paper Doily Machine is designed for high-efficiency production of elegant paper doilies. Capable of utilizing 45-300g pure white paper, this machine can produce an impressive output of 55,000 pieces per hour in a 7.5-inch (Ø190mm) round shape. Its versatility allows for the creation of round, square, and oval-shaped doilies with diameters ranging from 4.5 inches to 16.5 inches. The machine features an automatic counting alarm and a pole-changing control for the main motor, ensuring smooth operation and ease of use. Built with high precision and stability, it operates quietly and is energy-efficient. Ideal for businesses looking to enhance their production capabilities with reliable machinery.
Specifications
| Attribute | Details |
|---|---|
| Paper Type | 45-300g pure white paper |
| Production Output | 55,000 pcs/hour |
| Maximum Doily Size | Ø16.5 inches (420-100mm diameter) |
| Power Consumption | Less than 4 kW |
| Dimensions | 4500 × 1500 × 1900 mm (L × W × H) |
| Weight | 1800 kg |
| Max Processing Size | 25 × 16.5 inches rectangular |
Additional Information
This machine is designed for easy installation and debugging, making it user-friendly for operators. It is capable of cutting, embossing, and shaping in one process, providing a comprehensive solution for doily production.
