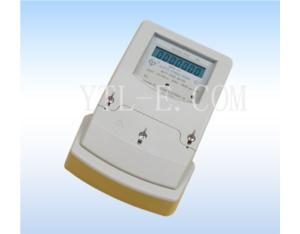

single phase electronic energy meter-00100L

Inquire Now

Description

The Single Phase Electronic Energy Meter-00100L is a high-performance metering solution designed for accurate measurement of electrical energy consumption. Ideal for residential and commercial applications, this energy meter features a user-friendly LCD display that provides clear readings of energy usage. Built to comply with international standards, it offers reliability and precision in monitoring energy consumption across various voltage levels.

Specifications

Attribute Details
Rated Voltage 110V; 220V; 230V; 240V
Rated Current 1.5(6)A; 5(30)A; 10(40)A; 20(80)A; 5(100)A
Frequency 50/60HZ
Connection Mode CT type; direct type
Display LCD, Counter
Accuracy Class 1.0; 2.0
Power Consumption ≤0.6W; ≤0.3VA
Start Current 0.004Ib
Constant 12800imp/kWh; 800/1600/3200/6400imp/kWh
Executive Standard GB/T17215-2002; IEC61036-2000

Additional Information

  • Ideal for both residential and commercial energy monitoring.
  • Easy installation with multiple connection modes.
  • Ensures accurate readings for effective energy management.
