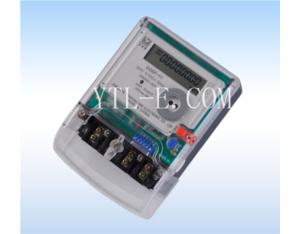

Single phase multi-tariff meter-007B40
Inquire NowDescription
The Single Phase Multi-Tariff Meter-007B40 is an advanced metering solution designed for efficient energy management. This meter supports multiple tariff rates, making it ideal for residential and commercial applications where energy consumption varies over time. With its robust design and high accuracy, the meter ensures precise billing and monitoring of electricity usage.
Featuring a user-friendly interface and direct connection mode, the meter simplifies installation and operation. Its low start current and reduced frequency consumption make it an energy-efficient choice, while the potential moving prevention design enhances reliability.
Specifications
| Specification Type | Details |
|---|---|
| Model | DDSF-1Y-007B40 |
| Rated Voltage | 110V; 220V; 230V; 240V |
| Rated Current | 5(30) A; 5(60) A; 5(80) A; 10(100) A |
| Rated Frequency | 50Hz/60Hz |
| Accuracy Class | 0.5; 1.0; 2.0 |
| Start Current | 0.4%Ib (1.0class) |
| Potential Moving | Prevent potential moving design |
| Frequency Consumption | ≤1W (220V 20A) |
| Connection Mode | Directly mode |
| Standard | IEC62052-11/IEC62053-21 |
Additional Information
- Optimized for energy efficiency and cost savings.
- Ideal for both residential and commercial use.
