Description

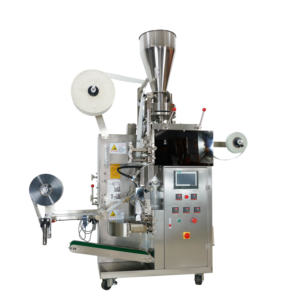

The SJB-NW Triangle inner and outer bag all-in-one machine is a state-of-the-art solution designed for diverse tea and herbal product packaging. Whether it’s green tea, black tea, scented tea, coffee, or health and herbal teas, this versatile machine can handle them all. It efficiently produces both flat and triangle tea bags, automating the entire process from loading and measuring to bag making, sealing, cutting, and conveyor of finished products.
Equipped with advanced imported ultrasonic sealing technology, the machine ensures perfect sealing and high cutting accuracy. It uses food-grade packing materials such as nylon, polyester net, non-woven fibers, and corn fiber to protect the integrity of your products.
Specifications
| Attribute | Details |
|---|---|
| Measuring Scope | 1 – 7 g |
| Packing Speed | 40 bags/min |
| Inner Bag Size | (L) 80-140 mm (W) 80-130 mm |
| Outer Bag Size | (L) 40-80 mm (W) 60-80 mm |
| Weight | 450 kg |
| Total Power | AC220V / 50Hz / 3.8W |
| Dimension (L*W*H) | 1500*1100*2300 mm |
| Gas Source | ≥0.6 m³/min |
Additional Information
Sealing Type: Ree-dimensional / Three sides sealing
