Description

The SJLL Mechanical Aluminium Lug is expertly designed for seamless transition connections between copper cables, aluminium cables, or aluminium alloy cables with the copper ends of electrical equipment in low voltage applications. This innovative lug eliminates the need for crimping tools, allowing for easy installation with just a socket spanner or wrench.

Crafted from high-strength aluminium alloy, the body and bolts ensure durability and reliability. The tin-plated surface enhances conductivity while preventing corrosion. With features such as torque-controlled shear head bolts, this product ensures stable performance and prevents damage to conductors during installation. The threaded design on the inner surface provides superior electrical and mechanical performance, making it suitable for a wide range of applications. Additionally, it comes prefilled with jointing compound for convenience.

This product adheres to the IEC 61238-1:2003 standard, assuring compliance and quality.

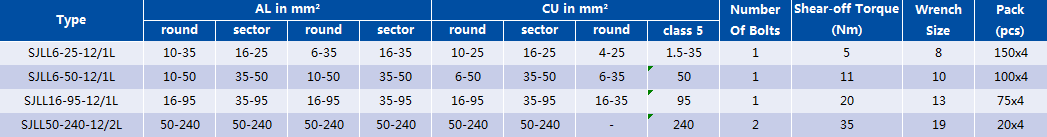

Specifications

Additional Information

Note: Shear-off torque is only a reference during installation. Depending on different conductor materials or types, indicated values may differ from test values according to IEC 61238-1. The use of class 5 conductors must be approved by MELEC.
