Slant bed CNC lathe KDCL-28
Inquire NowDescription
The KDCL-28 Slant Bed CNC Lathe is an advanced machining tool designed to offer precision and efficiency in various applications. With a maximum swing over the bed of Ф520mm and a spindle bore of Ф65mm, this lathe is engineered for versatile machining tasks. The spindle speed reaches up to 4000 rpm, ensuring optimal performance while handling different materials. Its rapid feed rate of 30m/min in both X and Z axes enhances productivity, making it an ideal choice for professional workshops. The robust main motor, available in 11/15kw, provides the necessary power to handle demanding operations.
Specifications
| ITEMS | KDCL-28 |
|---|---|
| Max. swing over bed | Ф520mm |
| Max. cutting dia. for disc parts | Ф420mm |
| Max. cutting dia. for axle parts | Ф250mm |
| Max. cutting length for axle parts | 500mm |
| Spindle bore | Ф65mm |
| Spindle nose | A2-6 |
| Spindle speed | 4000/5000 rpm (sleeve spindle) |
| Max. travel of Axis X | 255mm |
| Max. travel of Axis Z | 600mm |
| Rapid feed for Axis X | 30m/min |
| Rapid feed for Axis Z | 30m/min |
| Tool post stations | 12-way |
| Outside dia. cutting tool shank | 25x25mm |
| Max inner dia. cutting tool shank | Ф40mm |

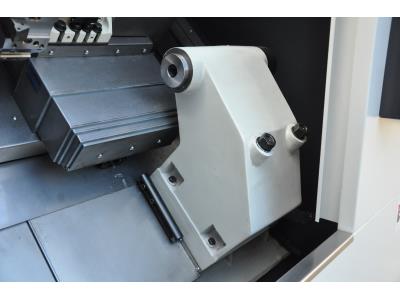

| External diameter of tailstock sleeve | Ф80mm |
| Max. travel of tailstock sleeve | 120mm |
| Taper of tailstock sleeve | MT-4 |
| Power of main motor | 11/15kw |
| Bed structure | 45° slant slide |
| Min. input | 0.001mm |
| Repeatability | ≤0.006mm |
| Chuck dia. | 8″ |
| Overall dimensions (L x W x H) | 4500x1850x2000mm |
| Net weight | 4300kg |
Additional Information
The descriptions, illustrations, and specifications given here are subject to alteration without notice and thus without any obligation.
