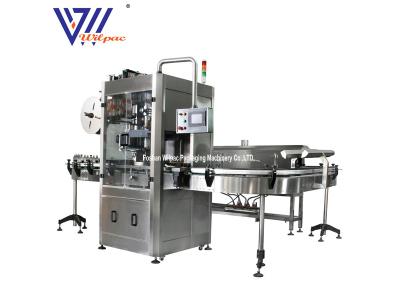

Sleeve Label Machine
Inquire NowDescription
The Sleeve Label Machine is a highly efficient solution designed for packaging operations across various industries, including food and beverage, cleaning products, cosmetics, and pharmaceuticals. This machine features an adjustable cutter head with a unique cyclotron cut-off mechanism, ensuring precise label application on a wide range of bottle types and sizes. Its double positioning central column stabilizes the label during conveyance, while a synchronous bottle distributor prevents sloshing, guaranteeing smooth operation.
Equipped with a touch screen control cabinet, users can easily customize operations to fit their specific needs. The machine is capable of handling various bottle dimensions and types, including round, square, and irregular shapes, making it versatile for diverse packaging requirements.
Specifications
| Model | WP-SL250 | WP-SL350 | WP-SL400 | WP-SL450 |
|---|---|---|---|---|
| Amount of working position | 1 | 1 | 1 | 1 |
| Applicable bottle dimension range | X50~X125mm | X50~X125mm | X50~X125mm | X50~X125mm |
| Bottle height | 100~320mm | 100~320mm | 100~320mm | 100~320mm |
| Applicable bottle type | Round, square, irregular | Round, square, irregular | Round, square, irregular | Round, square, irregular |
| Label thickness | 0.03~0.08mm | 0.03~0.08mm | 0.03~0.08mm | 0.03~0.08mm |
| Speed | 250 bottles/min | 350 bottles/min | 400 bottles/min | 450 bottles/min |
| Applicable label material | PVC/PET/OPS | PVC/PET/OPS | PVC/PET/OPS | PVC/PET/OPS |
| Label length | 30~190mm (Max.) | 30~190mm (Max.) | 30~190mm (Max.) | 30~190mm (Max.) |
| Power requirement | 3KW/220V/50(60)Hz | 3KW/220V/50(60)Hz | 3KW/220V/50(60)Hz | 3KW/220V/50(60)Hz |
| Machine size | L*W*H=2100*1150*2000 | L*W*H=2100*1150*2000 | L*W*H=2100*1150*2000 | L*W*H=2100*1150*2000 |
| Machine weight | 400KG | 400KG | 400KG | 400KG |
Additional Information
The price is for reference only; please consult for specific quotation.
