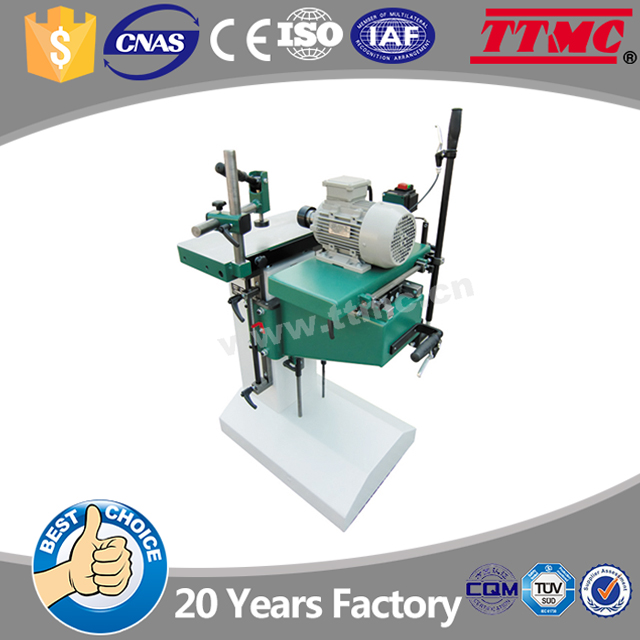

Slot boring machine
Inquire NowDescription
Introducing the Slot Boring Machine, a precision tool designed for professionals in woodworking and manufacturing. Engineered to provide exceptional functionality, this machine is equipped with advanced features to enhance your productivity and accuracy in creating slots and bore holes. Key features include adjustable stops for height, depth, and crossways; dual clamp bearing blocks on the workpiece table; and a robust heavy ball guidance system. The integrated height scale allows for easy adjustments, ensuring optimal performance.
Specifications
Attribute | Details |
---|---|
Item No. | 575001 |
Model | MGX16 |
Table Size | 545 x 265 mm |
Cross Travel | 170 mm |
Longitudinal Travel | 220 mm |
Vertical Stroke | 150 mm |
Drill Chuck Size | 16 mm |
Speed | 2800 rpm |
Motor | 2.2 kW |
Packing Size | 86 x 66 x 133 cm |
G.W./N.W. | 215/172 kg |
Additional Information
- Standard Accessories: None
- Optional Accessories: None
