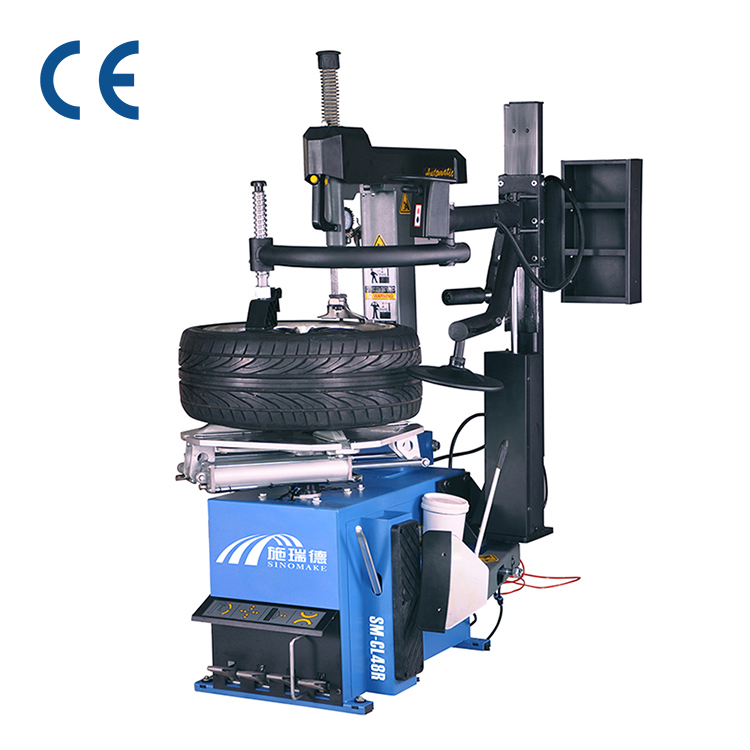

SM-CL48R automatic tire changer tilt column with right helper 24 inch clamp
Inquire NowProduct Description
The SM-CL48R automatic tire changer is designed for efficiency and convenience in tire service. With a tilt column and a right helper, this machine simplifies the process of demounting and mounting tires, especially stubborn ones. The pneumatic features allow for smooth operation, while the durable clamp, made from special materials, ensures a reliable grip. The mounting head is crafted from wear-resistant steel, promising longevity and strength. Additionally, the universal switch boasts a robust 40A capacity with a pure silver contact point, ensuring it can handle heavy loads for extended periods.
Specifications
| Feature | Specification |
|---|---|
| Rim clamping from outside | 11″-20″ |
| Rim clamping from inside | 12″-24″ |
| Max wheel diameter | 950 mm |
| Wheel width | 3″-12″ |
| Working pressure | 8-10 bar |
| Motor power | 0.75/1.1 kw |
| Power supply | 110/220/380 V |
| Noise level | 75 db |
| Net weight | 288 kg |
| Gross weight | 349 kg |
| Packing dimension | 980*760*1010 mm / 1280*550*450 mm |
| Volume | 1.07 CBM |
| Quantity in 20″ container | 26 |
| Quantity in 40″ container | 60 |
Additional Information
Export standard packaging ensures the safety of goods during transportation. The tire changer is packaged in a wooden box, making it suitable for international shipping. The product comes with a warranty of 12 months, and free replacement parts are provided during this period.
