SM-PK3-5210
Inquire NowDescription

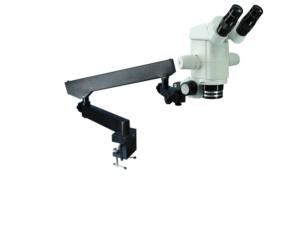

The SM-PK3-5210 is a state-of-the-art zoom stereo microscope designed for precision and clarity. Featuring a dual parallel beam path optical system, it ensures high-resolution, distortion-free images across its entire zoom range. With a remarkable zoom ratio of 8:1, this microscope is perfect for professionals seeking detailed observations. Its modular design allows for various configurations to meet specific needs, making it a versatile addition to any laboratory or workshop.
Specifications
| Feature | Details |
|---|---|
| Zoom Range | 0.62x – 5x |
| Zoom Ratio | 8:1 |
| Magnification | 6.2x – 50x (with accessory lens: 1.9x – 250x) |
| Working Distance | 80mm (with accessory lens: 26mm – 278mm) |
| Field of View | 33.9mm – 4.2mm (with accessory lens: 106mm – 0.6mm) |
| Interpupillary Distance | 50mm – 75mm |
| Dioptric Correction | +5 to -5 |
| Eyepiece | WFH10X-D/21 High eye point, wide-field, distortion-free |
| Objective | 1x Planachromatic objective |
| Optional Objective | Planachromatic 0.5x |
| Optional Eyepiece | WF20x, WF25x |
| Clamp Max Opening | 57mm |
| Flexible Arm Travel Distance | 265mm vertical, 745mm horizontal |

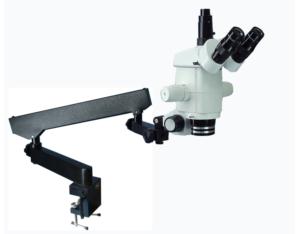

| Trinocular Head | Compatible with CCD, Camera, TV, or computer |
| Fluorescent Ring Light | 8w bulb, input 110V, max opening 60mm, min opening 48mm |
Additional Information
The SM-PK3-5210’s design emphasizes user-friendliness and adaptability, making it suitable for a range of applications from education to industrial inspection. It includes a flexible arm clamp stand that enhances maneuverability and usability. The fluorescent ring light provides optimal illumination, ensuring clear visibility of specimens without shadows.
