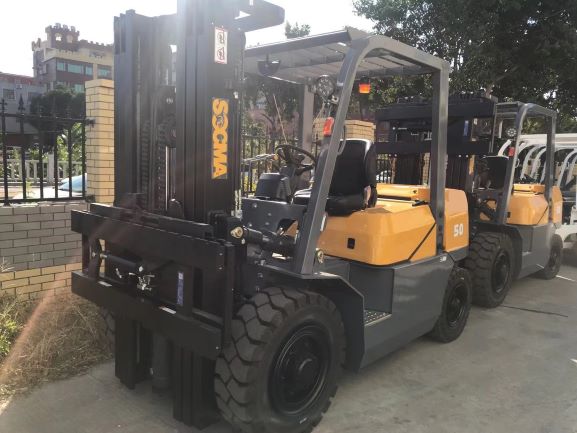

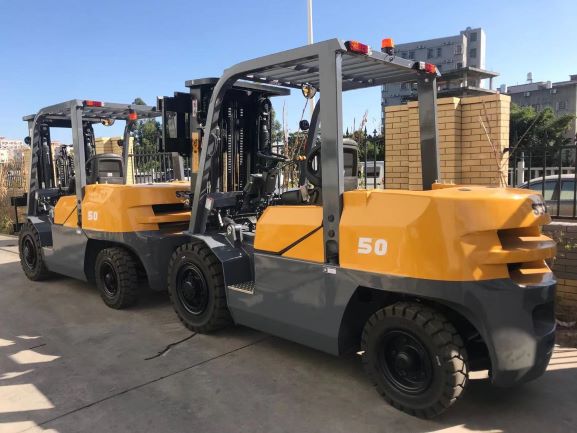

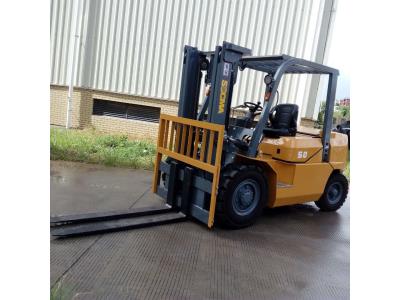

Small 5Ton Diesel Forklift work in Container LIft Height 4.5 Meter
Inquire NowDescription
Introducing the Small 5Ton Diesel Forklift, designed for high efficiency and energy savings in container lifting operations. With an impressive lift height of 4.5 meters, this forklift redefines industry standards by addressing the needs of managers, drivers, and the handling of piled goods. A product of radical innovation, it combines exclusive durability with advanced features, ensuring operational capacity and security.

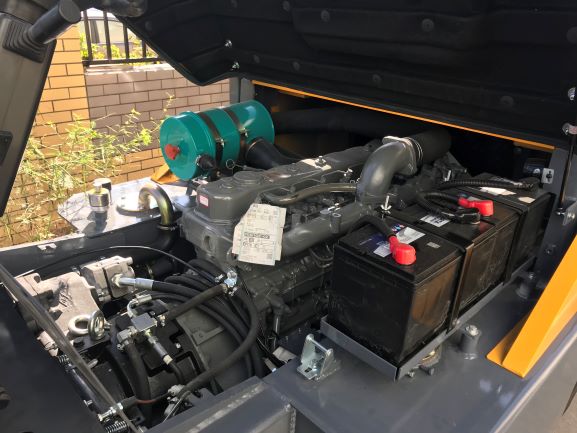

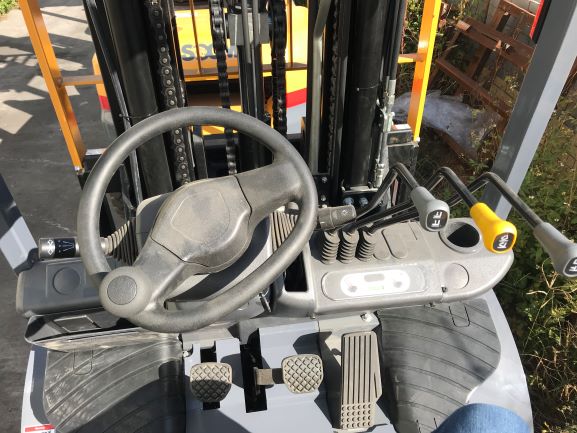

The Small 5Ton Diesel Forklift boasts an enhanced hydraulic system, a comfortable cab design, and an intuitive operating lever. It includes several improvements, such as:
- Removable side cover for easy inspection and repairs.
- Integrated control box for fuses and relays for convenient maintenance.
- Aluminum radiator for superior cooling effects.
- Advanced noise reduction via a large double muffler.
- New adjustable suspension system for driver comfort.
- Lower step height for easy access.
- Safety features to prevent operator hand slips.
- Spacious steering area for enhanced maneuverability.
- Embedded LCD instrument for engine safety.
- Double protection brake lever to prevent misuse.
- Advanced design for all-weather operation.
Specifications
| Model | Unit | Value |
|---|---|---|
| FD50TC | ||
| Power Unit | Diesel | |
| Operator Type | Driver/seat | |
| Transmission Box Type | Electronic hydraulic transmission | |
| Rated Capacity | kg | 5000 |
| Load Center | mm | 500 |
| Max. Lifting Height | mm | 3000 |
| Tire Type | Pneumatic Tire | |
| Tire Number – Front | 2 | |
| Tire Number – Rear | 2 | |
| Tire Size – Front | 300-15-18PR | |
| Tire Size – Rear | 7.00-12-12PR | |
| Lifting Speed – Loaded | mm/s | 480 |
| Lifting Speed – Unloaded | mm/s | 520 |
| Lowering Speed – Loaded | mm/s | 480 |
| Lowering Speed – Unloaded | mm/s | 450 |
| Travelling Speed – Loaded | km/h | 19 |
| Travelling Speed – Unloaded | km/h | 20 |
| Max. Gradeability (Loaded) | % | 20 |
| Mast Tilting Angle (Fwd/Bwd) | deg | 6/12 |
| Free Lifting Height | mm | 150 |
| Turning Radius | mm | 2850 |
| Overall Length (with fork) | mm | 4300 |
| Overall Width | mm | 1490 |
| Overhead Guard Height | 2255 | |
| Fork Size (L×W×T) | mm | 1220×150×55 |
| Mast Height (Fork lowered) | mm | 2245 |
| Truck Weight | kg | 6900 |
| Fuel Tank Capacity | L | 140 |
Additional Information
The advanced engineering behind the Small 5Ton Diesel Forklift aims to provide comfort and safety for the operator during extended use. It is designed to meet rigorous operational standards whilst ensuring ease of maintenance and inspection.
