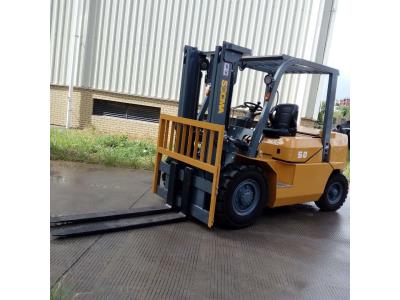

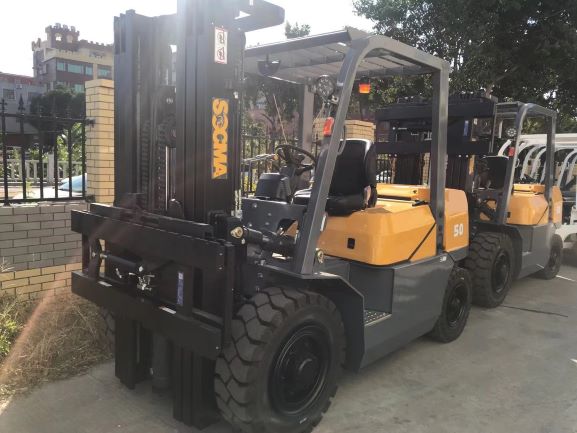

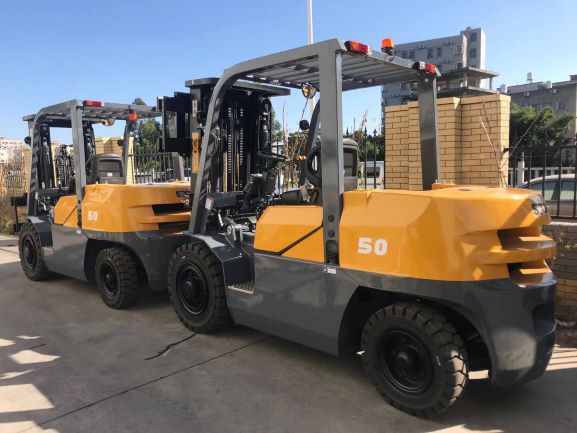

Small 5Ton Diesel Forklift work in Container LIft Height 4.5 Meter
Inquire NowDescription
Introducing the Small 5 Ton Diesel Forklift, a revolutionary piece of equipment designed for efficiency and effectiveness in container handling. With a lift height of 4.5 meters, this forklift excels in high-demand environments, allowing operators to stack and retrieve materials with ease and precision.
Socma has engineered this forklift with a focus on high efficiency and energy savings, catering to the requirements of managers and operators. Built with innovative hydraulic technology, it ensures durability and reliability while enhancing operational capacity and safety.

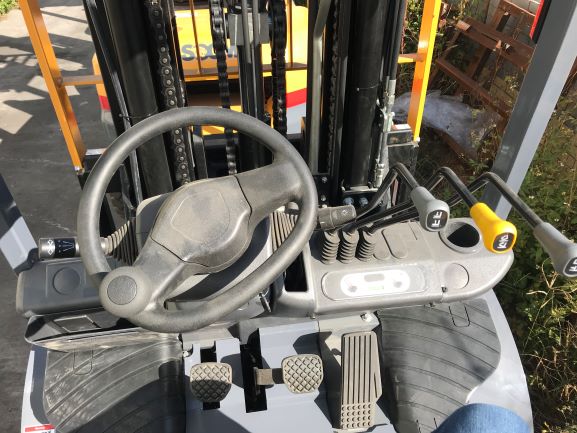

The forklift features an improved uploading system, a thoughtfully designed cab, and an ergonomic operating lever for user-friendly navigation. Each detail has been meticulously crafted to offer superior performance, making it ideal for warehouse operations and construction sites alike.
Key benefits include:
- Easy maintenance with a removable side cover for inspections and repairs.
- Integrated control box for convenient electric element access.
- Enhanced cooling with aluminum heat sinks and a larger radiator.
- Noise reduction through a double muffler system.
- Comfort-driven design with an adjustable seat to minimize operator fatigue.
- Safe operation features such as a double protection brake lever and embedded LCD instrument display.
Specifications
| Model | Unit | FD50TC | |
|---|---|---|---|
| Specifications | Power Unit | Diesel | |
| Operator Type | Driver/seat | ||
| Transmission Box Type | Electronic hydraulic transmission | ||
| Rated Capacity | 5000 kg | ||
| Load Center | 500 mm | ||
| Max. Lifting Height | 3000 mm | ||
| Tire Type | Pneumatic Tyre | ||
| Tire Number | Front | 2 | |
| Rear | 2 | ||
| Tire Size | Front | 300-15-18PR | |
| Rear | 7.00-12-12PR | ||
| Performance | Lifting Speed | Loaded | 480 mm/s |
| Unloaded | 520 mm/s | ||
| Lowering Speed | Loaded | 480 mm/s | |
| Unloaded | 450 mm/s | ||
| Travelling Speed | Loaded | 19 km/h | |
| Unloaded | 20 km/h | ||
| Max. Gradeability (Loaded) | 20% | ||
| Mast Tilting Angle (Fwd/Bwd) | 6/12 deg | ||
| Free Lifting Height | 150 mm | ||
| Turning Radius | 2850 mm | ||
| Dimensions | Overall Length (with fork) | 4300 mm | |
| Overall Width | 1490 mm | ||
| Overhead Guard Height | 2255 mm | ||
| Fork Size (L×W×T) | 1220×150×55 mm | ||
| Mast Height (Fork lowered) | 2245 mm | ||
| Battery (Voltage/Capacity) | 2×12/90 V/Ah | ||
| Truck Weight | 6900 kg | ||
| Fuel Tank Capacity | 140 L | ||

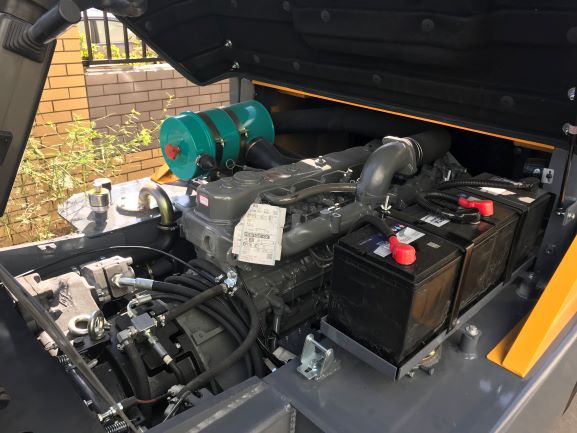

| Engine | Brand | Xinchai / MITSUBISH | |
| Model | 4DX23 / S6S | ||
| Rated Power | 60/2200 kw/rpm / 52/2300 | ||
| Rated Torque | 320/1400～1700 n-m/rpm / 248/1700 | ||
| Number Of Cylinder | 4 / 6 | ||
| Displacement | 3.857 / 4.996 |
Additional Information
Experience unparalleled performance and ease of use with the Small 5 Ton Diesel Forklift, designed to meet the changing demands of modern operations. Its advanced features and user-centric design ensure that both safety and efficiency are prioritized in every aspect of its functionality.
