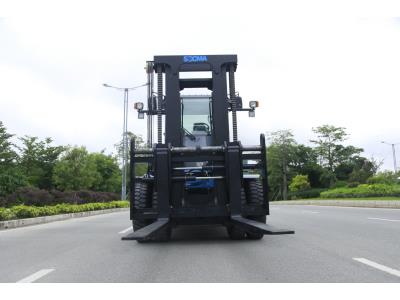

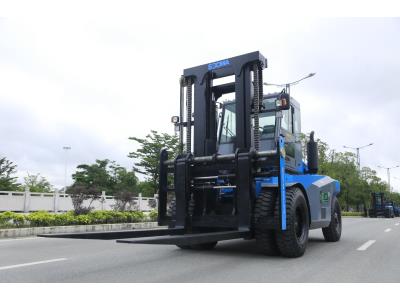

SOCMA 12T Diesel Engine Big Forklift for port
Inquire NowDescription
The SOCMA 12T Diesel Engine Big Forklift is a robust and reliable material handling solution designed specifically for port operations. Manufactured by Fujian Southchina Heavy Machinery Manufacture Co. Ltd, this forklift is engineered to meet the demands of heavy-duty applications, ensuring efficiency and safety in lifting and transporting loads. With a rated load capacity of 12 tons and an impressive lifting height of up to 4600 mm, this forklift is adept at managing substantial weights with ease.
Equipped with advanced features such as a powerful diesel engine option, sturdy chassis, and high-quality tyres, the SOCMA forklift guarantees superior performance and durability. The hydraulic system ensures smooth operation while maintaining high speed and productivity, making it an essential asset for any port or material handling environment.
Specifications
| Item | Specification | Value |
|---|---|---|
| Rated Load (Q) | Q(t) | 12 |
| Load Center | c(mm) | 600 |
| Wheelbase | y(mm) | 3000 |
| Weight | Weight (kg) | 18000 |
| Tyre Specs: Front | 10.00-20-16PR | |
| Tyre Specs: Rear | 10.00-20-16PR | |
| Wheel Tread: Front | b10(mm) | 1650 |
| Wheel Tread: Rear | b11(mm) | 1970 |
| Mast Height (Fork Lowering) | h1(mm) | 3100 |
| Max. Lifting Height | h4(mm) | 4600 |
| Overall Length (with forks) | l1(mm) | 6055 |
| Overall Width | b1/b2(mm) | 2250 |
| Fork Dimension | s/e(mm) | 1200X180X90 |
| Max. Lifting Speed (with load/without load) | mm/s | 220/270 |
| Max. Lowering Speed (with load/without load) | mm/s | 450/300 |
| Engine Brand/Model | Yuchai engine (YC6J150-T301) or Dongfeng Cummins (QSB4.5-C130) | |
| Cylinder No. | 6 |
Additional Information
- Driving Brake: Hydraulic clamp disc
- Travel Speed (with load/without load): 23/26 km/h
- Grade Ability (with load/without load): 20/22%
- Attachments Working Pressure: 16 Mpa
- Attachments Using Oil Amount: 40 l/min
