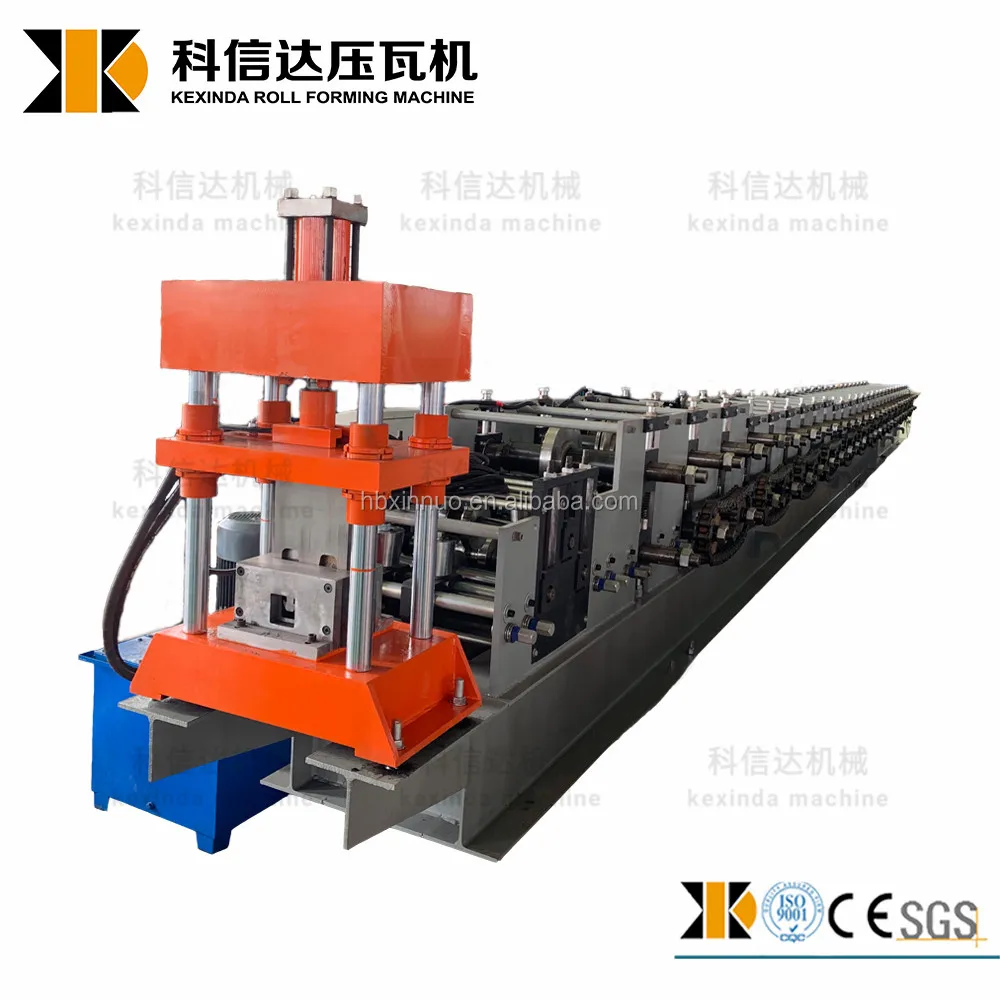

Solar Bracket Roll Forming machinery
Inquire NowProduct Description

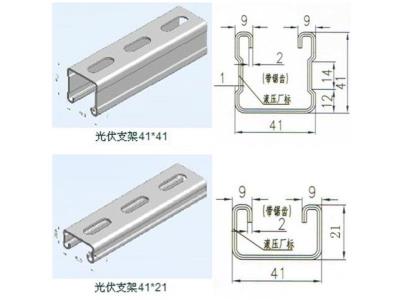

The Solar Bracket Roll Forming Machine is an essential piece of equipment for the production of solar struts and metal roofing components. Engineered for efficiency, this machine offers a robust solution for manufacturing solar panel support structures. With the ability to handle a variety of materials, including Q235 and Q345 cold steel strips and hot galvanized strips, it guarantees high-quality outputs suitable for the demanding solar industry.
Key features include a feeding material width range of 40-300mm, a thickness capability of 1.5-2.5mm, and a production speed of 20m/min. This machine ensures precision with minimal error margins in product straightness, angle, and length, making it a reliable choice for manufacturers.
Specifications
| Feature | Specification |
|---|---|
| Feeding Material Width Range | 40-300mm |
| Feeding Material Thickness | 1.5-2.5mm |
| Suitable Material | Q235, Q345 cold steel strips, hot galvanized strips |
| Produce Speed | 20m/min |
| Minimum Length of Product | 2000mm |
| Straightness Error | ≤±1.5 mm /1500 mm |
| Angle Error | ≤±1.5 mm /1000 mm |
| Length Error | 10m±1.5 mm |
Production Process
3T automatic decoiler and straightener → servo feeding → punching machine with mould → main roll forming machine → sizing → tracking hydraulic cutting → output table
Additional Information
Guarantee: 12 Months guarantee. If any part of the machine is broken, we will supply the best part. However, if the damage is due to operational error, the buyer will be responsible for shipping fees.
After-sale Service: We send a technician to your country to fix the machine. The buyer should bear all costs including visa, round-trip ticket, suitable accommodation, and pay a salary of $100/day.
