Solar Combiner Box, Briidea PV Combiner Box 2 String with 10A Circuit Breakers & Lightning
Inquire NowDescription
Elevate your solar energy game with the high-performance Solar Combiner Box, designed specifically for optimizing your photovoltaic system’s potential. The Briidea PV Combiner Box features a robust construction and advanced technology that efficiently combines and manages the output of two strings of solar panels. With a maximum voltage capacity of 1000V and a current rating of 25A, this combiner box ensures superior compatibility and safety for your solar setup.
Key benefits include:
- Maximize Efficiency: Optimize the output of your solar panels, ensuring maximum energy harvested from the sun.
- Enhanced Safety: Durable construction and high voltage capacity guarantee safe operation.
- Easy Installation: User-friendly components for a hassle-free setup.
- Weather-Resistant: Built to withstand diverse weather conditions, maintaining consistent performance.
- Space-Saving Design: Compact without compromising functionality, perfect for various installations.
Specifications
Attribute | Details |
---|---|
Model No. | MDJB-2/2 |
Input | 2 strings |
Output | 2 strings |
Maximum Voltage | 1000V |
Max DC Short Circuit Current Per Input (Isc) | 16A (Changeable) |
Maximum Current Output | 32A |
Enclosure | Plastic |
Material Type | Polycarbonate/ABS |

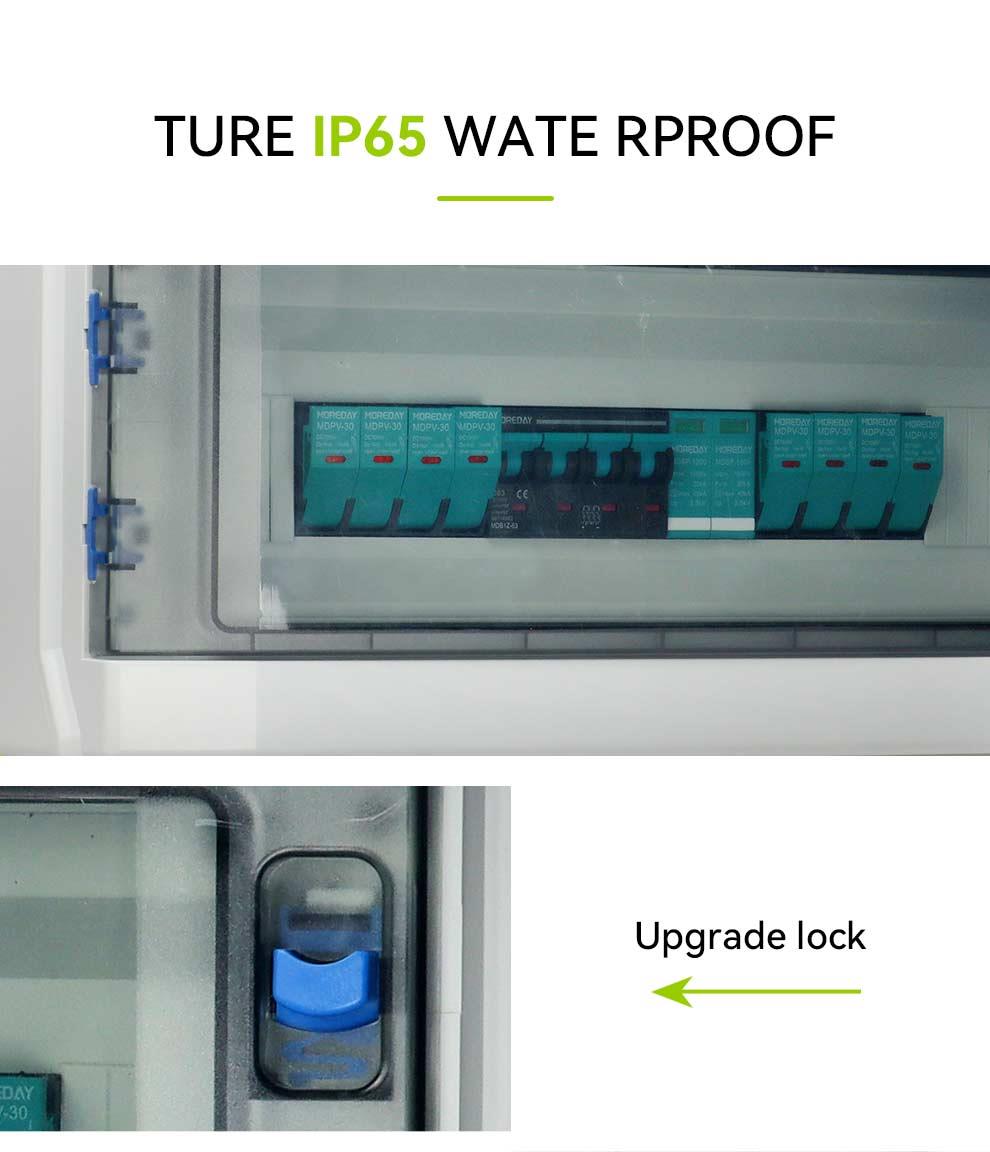

Degree of Protection | IP65 |
Degree of Resistance to Impacts | IK10 |
Dimensions (W*H*D) | 292*195*132mm |
Cable Input Entry | PG09 Cable Gland, 2.5-16mm² |
Output Cable Gland | PG21 2.5-16mm² |
DC Switch Disconnector | MDIS |
Rated Insulation Voltage (Ui) | 1000V |
Rated Current (Le) | 32A |
Certification | TUV, CB, CE |
DC Surge Arrester | MDSP |
Max Operation Voltage (Ucpv) | 1000V |
Maximum Discharge Current | 40KA |
DC Fuse Holder | MDFU |
Rated Working Voltage | 1000V |
Fuse Link | 10*38mm Littel 16A |
Additional Information
This combiner box is built to provide overcurrent protection, safeguarding your system from potential damage. Its compact and reliable design ensures space efficiency without compromising performance. Ideal for various installations, it is perfect for both residential and commercial solar setups.
