SOLAR PANELS
Inquire NowSOLAR PANELS

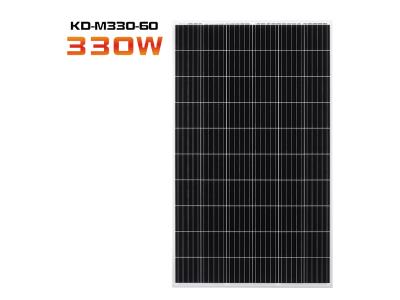

KDM high Efficiency solar panel half cell solar panel
| Size | 1684*1002*35mm |
| Product name | A grade solar panel |
| Certificate | TUV/IEC61215/IEC61730/CEC/CE/PID/ISO/INMETRO |
| Solar cell | Poly 156*156 Cell |
Product Description
| Model | KD-M300 | KD-M305 | KD-M335 | KD-M345 | KD-M350 | KD-M355 | KD-M360 | KD-M365 | KD-M370 | KD-M340 |
| Wattage | 300W | 305W | 335W | 345W | 350W | 355W | 360W | 365W | 370W | 340W |
| Open circuit voltage (Voc) | 44.62 | 44.85 | 46.73 | 47.13 | 47.37 | 47.63 | 47.2 | 47.3 | 47.55 | 46.91 |
| Maximum Power Voltage(Vmp/V) | 37.62 | 37.69 | 38.09 | 38.39 | 38.55 | 38.7 | 38.9 | 309.1 | 39.21 | 38.17 |
| Short Circuit Current(Isc/A) | 8.56 | 8.59 | 9.32 | 9.46 | 9.55 | 9.65 | 9.79 | 9.88 | 9.94 | 9.41 |
| Maximum Power Current(Imp/A) | 7.98 | 8.1 | 8.79 | 8.99 | 9.09 | 9.18 | 9.26 | 9.34 | 9.44 | 8.91 |
| Module Efficiency | 15.45% | 15.71% | 17.26% | 17.77% | 18.03% | 18.29% | 18.54% | 18.50% | 19.05% | 17.51% |
| Standard Test Condition(STC) | Irradiance 1000w/m2, Cell Temperature 25 Centigrade, Air Mass 1.5 | |||||||||
Packing Details
| 40HQ CONTAINER | 806 PCS |
