solar support strut channel roll forming machine
Inquire NowDescription

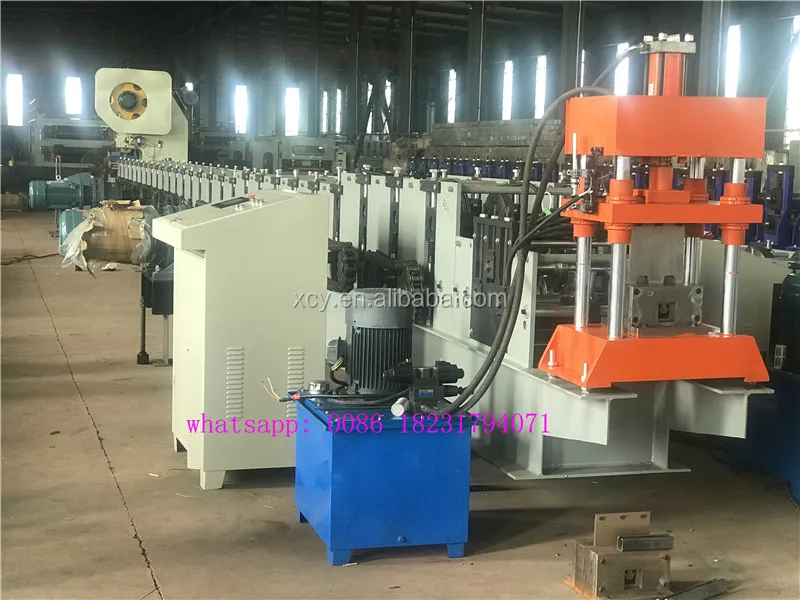

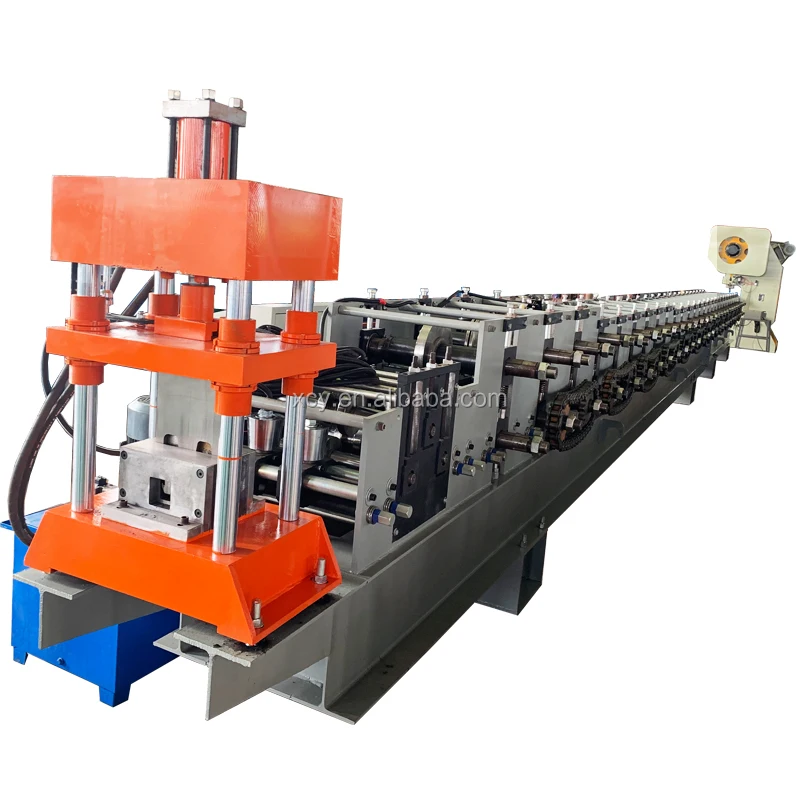

The Solar Support Strut Channel Roll Forming Machine is a fully automatic production line specifically designed for manufacturing solar support strut channels. It offers versatility with the ability to produce six different profile sizes, and customization options are available to meet specific production needs. This advanced machine is ideal for creating photovoltaic stents and solar energy mounting brackets, making it a perfect addition to any solar energy production facility.
Specifications
| Attribute | Details |
|---|---|
| Diameter of Shaft | 90mm, for forming |
| Thickness of Material | 2mm/2.5mm/3mm |
| Frame | 450H steel |
| Roller Stations | 25 roller stations |
| Punching Type | 63 T punching machine |
| Dimension | 14500*2200*1500mm |
Additional Information
The Solar Support Strut Channel Roll Forming Machine comes with a 12-month warranty, ensuring reliable performance and service throughout its lifecycle. Our dedicated after-sales service team is available to assist with any issues, providing professional engineers for onsite repairs as needed, ensuring quick and accurate resolutions to any problems that may arise.
Images
