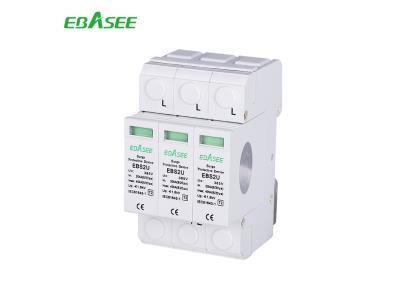

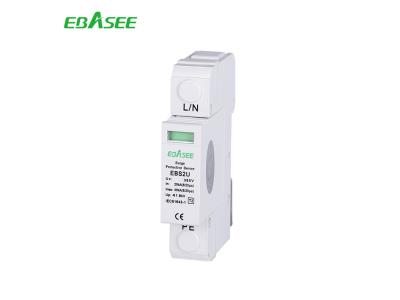

SPD Surge Protective Device EBS2U
Inquire NowDescription
The SPD Surge Protective Device EBS2U is an essential component for safeguarding electrical systems from voltage spikes and surges. Commonly referred to as a surge protector, this device plays a crucial role in protecting sensitive electronic equipment by diverting excess voltage away from connected devices. Its robust design and adherence to international standards ensure reliable performance in various environments, making it a key asset for both residential and commercial applications.

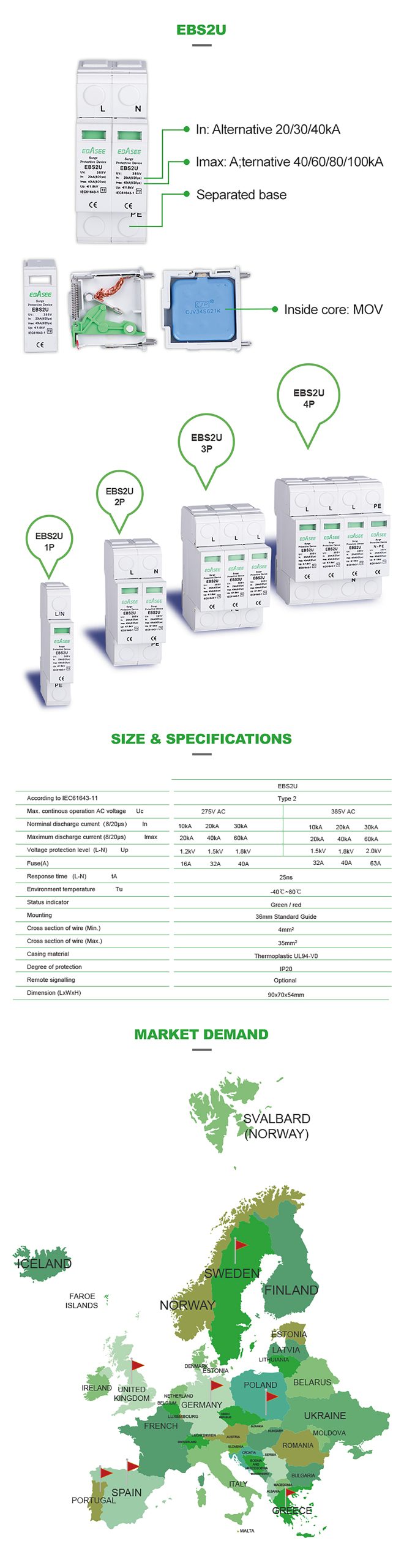

Specifications
| Attribute | Value 1 | Value 2 |
|---|---|---|
| Model Name | EBS2U-40 | EBS2U-40 N-PE |
| Standard | IEC61643-11 | IEC61643-11 |
| Poles | 1P, 2P, 3P, 4P | 1P, 2P, 3P, 4P |
| Max. Continuous Operation AC Voltage Uc | 275V AC | 255V AC |
| Peak Current (10/350) Ipeak | 12.5kA | |
| Environment Temperature Tu | -40~80℃ | -40~80℃ |
| Nominal Discharge Current (8/20μs) In | 20kA | 20kA |
| Maximum Discharge Current (8/20μs) Imax | 40kA | |
| Voltage Protection Level (L-N) Up | 1.5kV | 1.5kV |
| Response Time (L-N) tA | 25ns | 25ns |
| Mounting | 36mm Standard Guide | 36mm Standard Guide |
| Cross Section of Wire (Min.) | 4mm² | 4mm² |
| Cross Section of Wire (Max.) | 35mm² | 35mm² |
| Casing Material | Thermoplastic UL94-V0 | Thermoplastic UL94-V0 |
| Dimension (L*W*H) | 90*70*54mm | 90*70*54mm |
Additional Information
- Ideal for protecting sensitive electronic devices from power surges.
- Compact design allows for easy installation in various setups.
- Reliable under extreme temperatures ranging from -40 to 80 degrees Celsius.
