Description
SPD Suspension Clamps are engineered specifically for the installation and suspension of four-core self-supporting low voltage aerial cables on poles or walls. They are suitable for creating straight lines and accommodating angles of up to 90°. Crafted from a corrosion-resistant aluminum alloy, these clamps offer high mechanical strength and durability. The plastic components are designed to withstand weather elements and are resistant to UV damage. With features like a shear head bolt and wing nut, these clamps can be installed without the need for additional tools, ensuring a smooth and efficient installation process while protecting the cable’s insulation layer from damage.

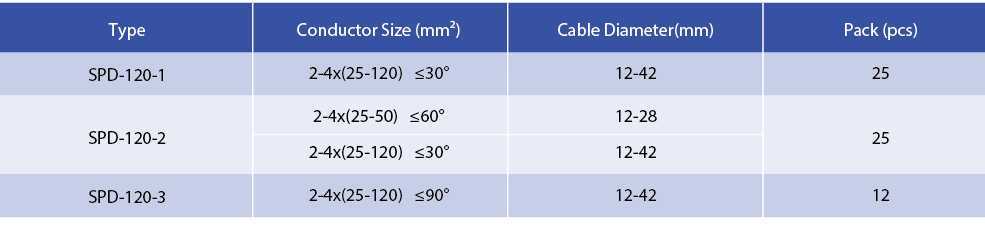

Specifications
| Attribute | Details |
|---|---|
| Material | Corrosion-resistant aluminum alloy and weather-resistant, anti-UV plastic |
| Application | Installation of four-core low voltage aerial cables |
| Standard | EN 50483-2 |
Additional Information
- Shear head bolt and wing nut allow no additional tool during installation.
- Constant installation torque prevents damage to cable insulation.
- No loose parts fall to the ground during installation.
