Description

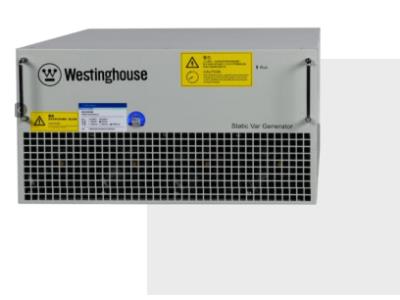

The Static Var Generator (SVG) is engineered for environments where dynamic reactive power is prevalent and requires harmonic control. This innovative device primarily compensates for reactive power and manages three-phase imbalances, ensuring optimal performance and stability in electrical systems.

With support for low-capacity harmonic compensation across low orders (3, 5, 7, 9, 11) at 50% rated power, the SVG is capable of real-time dynamic stepless adjustments, eliminating concerns of overcompensation or undercompensation. Utilizing a current source mechanism, it effectively circumvents resonance issues and generates no harmonics while simultaneously absorbing them.

The SVG utilizes external current transformers (CT) to monitor load current in real-time. By calculating the reactive components and harmonics via an internal DSP, it produces PWM signals to control the inverter, thereby generating the necessary reactive power and low-order harmonic currents. This process enables efficient reactive power compensation and harmonic management.

• Safe and effective reactive power compensation
• Real-time dynamic stepless adjustment to prevent compensation errors
• Controllable current source to avoid resonance phenomena
• No harmonic generation, with filtering of 11th and below odd harmonics
• Modular design for flexible application
• Easy installation due to cabinet installation engineering design

Specifications

Additional Information

For optimal performance, it is essential to follow proper installation guidelines provided with the SVG. Regular maintenance checks are recommended to ensure the device functions at peak efficiency.
