Steel drum/barrel package production line
Inquire NowDescription

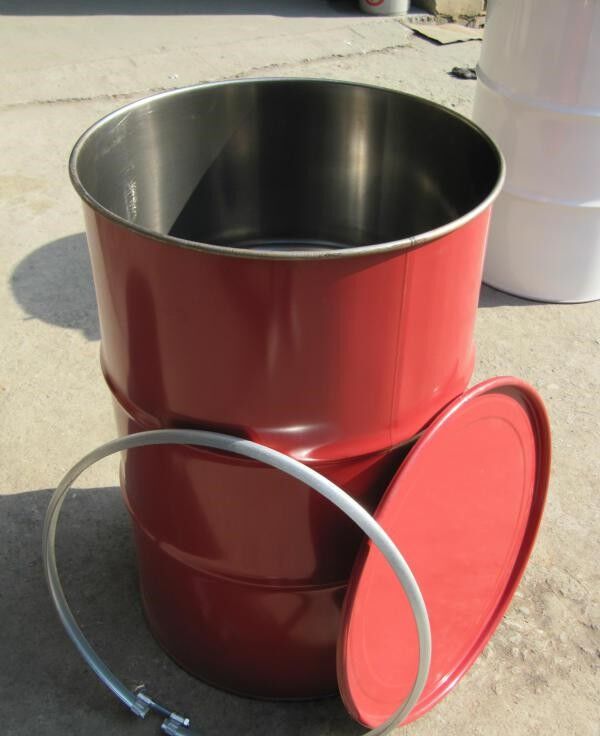

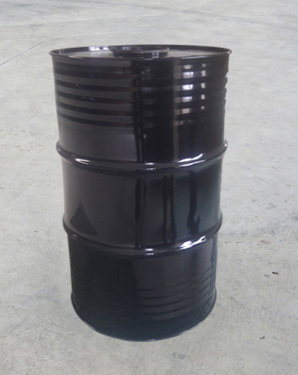

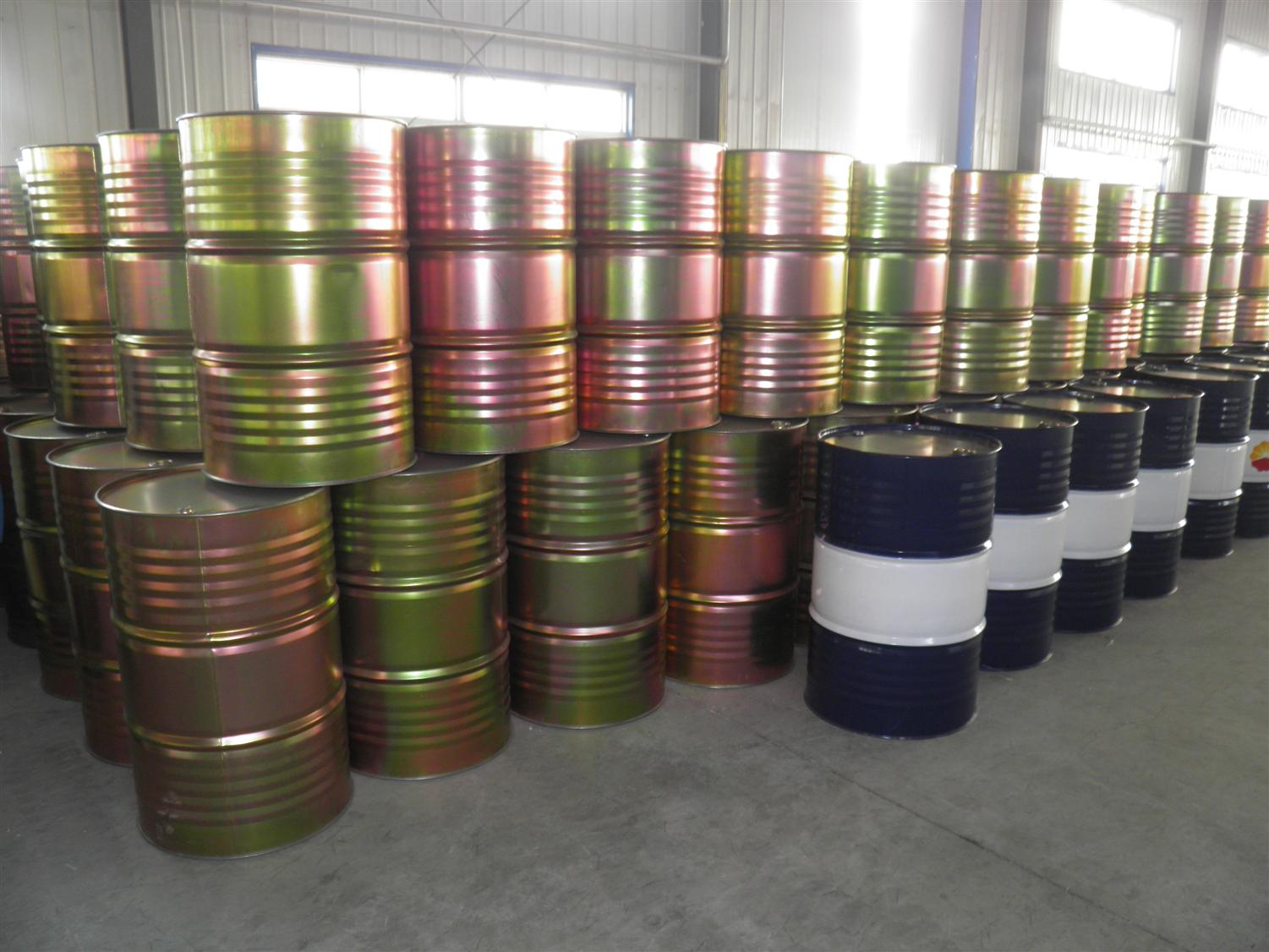

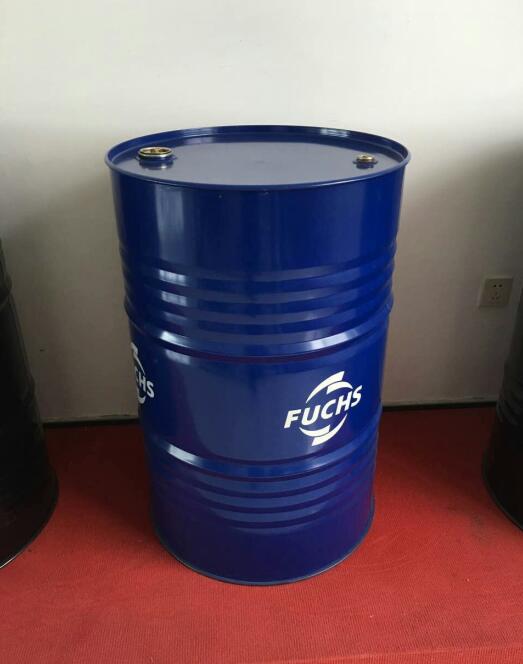

Our steel drum production line is an advanced manufacturing solution designed to produce a variety of steel drums, including closed, open, conical, and bituminous drums. This versatile line operates at varying speeds to meet different production needs: low speed (1-2 pcs/min), medium speed (5-6 pcs/min), and high speed (7-8 pcs/min). Capable of producing drums ranging from 100 to 220 liters, this production line is widely used in industries such as oil, chemicals, food, and beverages.
Specifications

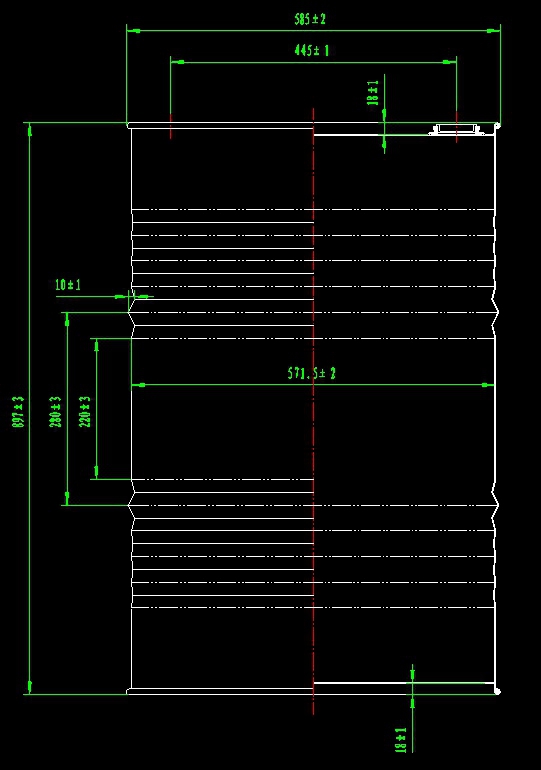

| Specification | Details |
|---|---|
| Applied Sheet | SPCC steel plate or cold-rolled sheet |
| Drum Inner Diameter | 571.5 mm |
| Drum Outside Diameter | 585 mm |
| Drum Height | 897 mm |
| Outside Painting | Nitro bake paint |
| Paint Thickness | Minimum 18 microns |
| Body Color | One color or multicolor |
| Drum Capacity | 216.5 L (55 Gallon, US) |
| Weight | 16-18 kg |
| Closures | 2 closures |
| Top Holes | One 3/4 Inch + one 2 Inch |
| Numbers of Corrugations | 6-10 |
| Material Thickness | 0.8-1.2 mm |
Additional Information
- Note: The drum specification can be changed according to customer requirements.
- Service: We offer high-quality drum-production equipment at competitive prices. Our equipment is designed to meet various output needs and investment scales, ensuring optimal solutions for different production requirements.
