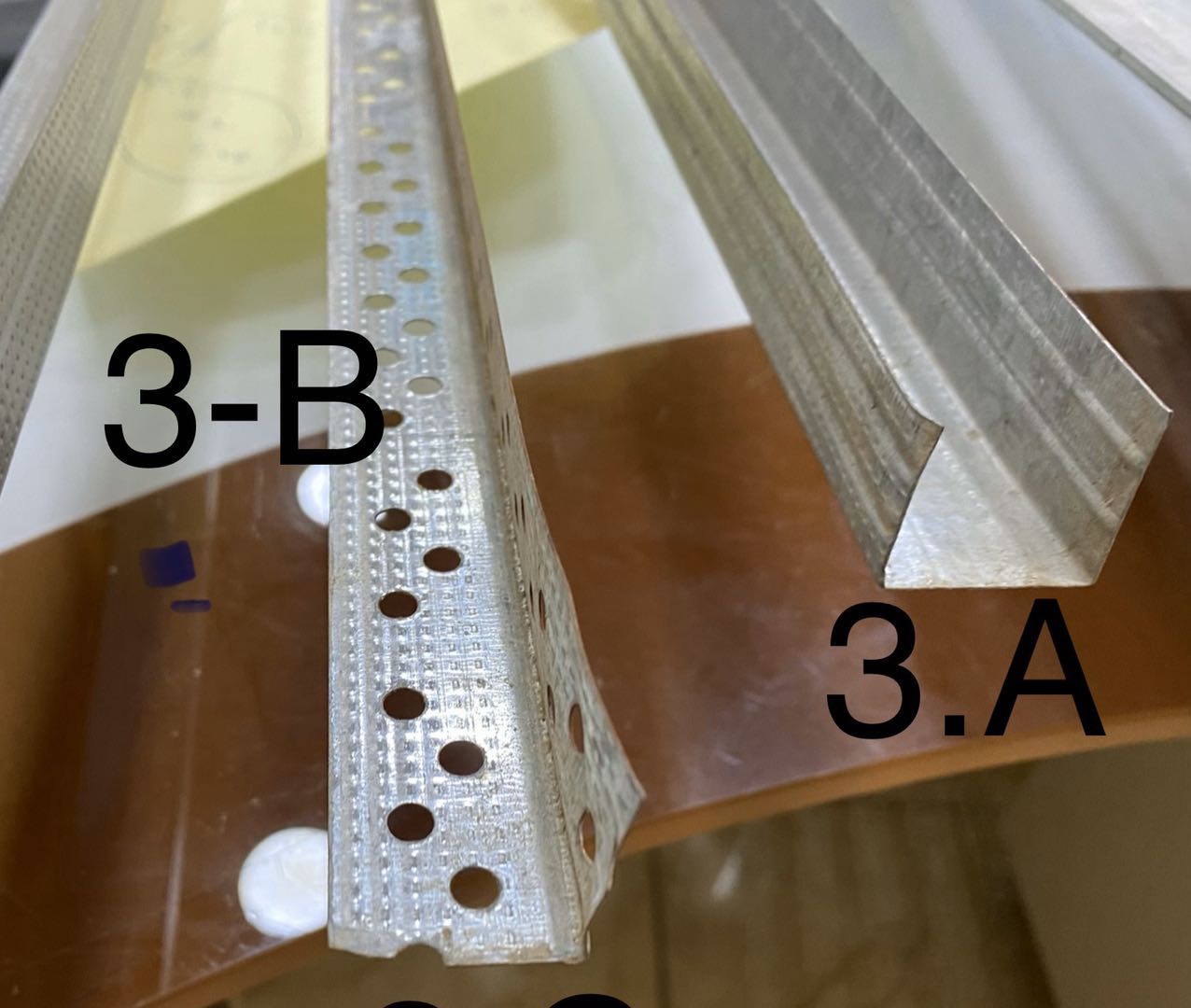

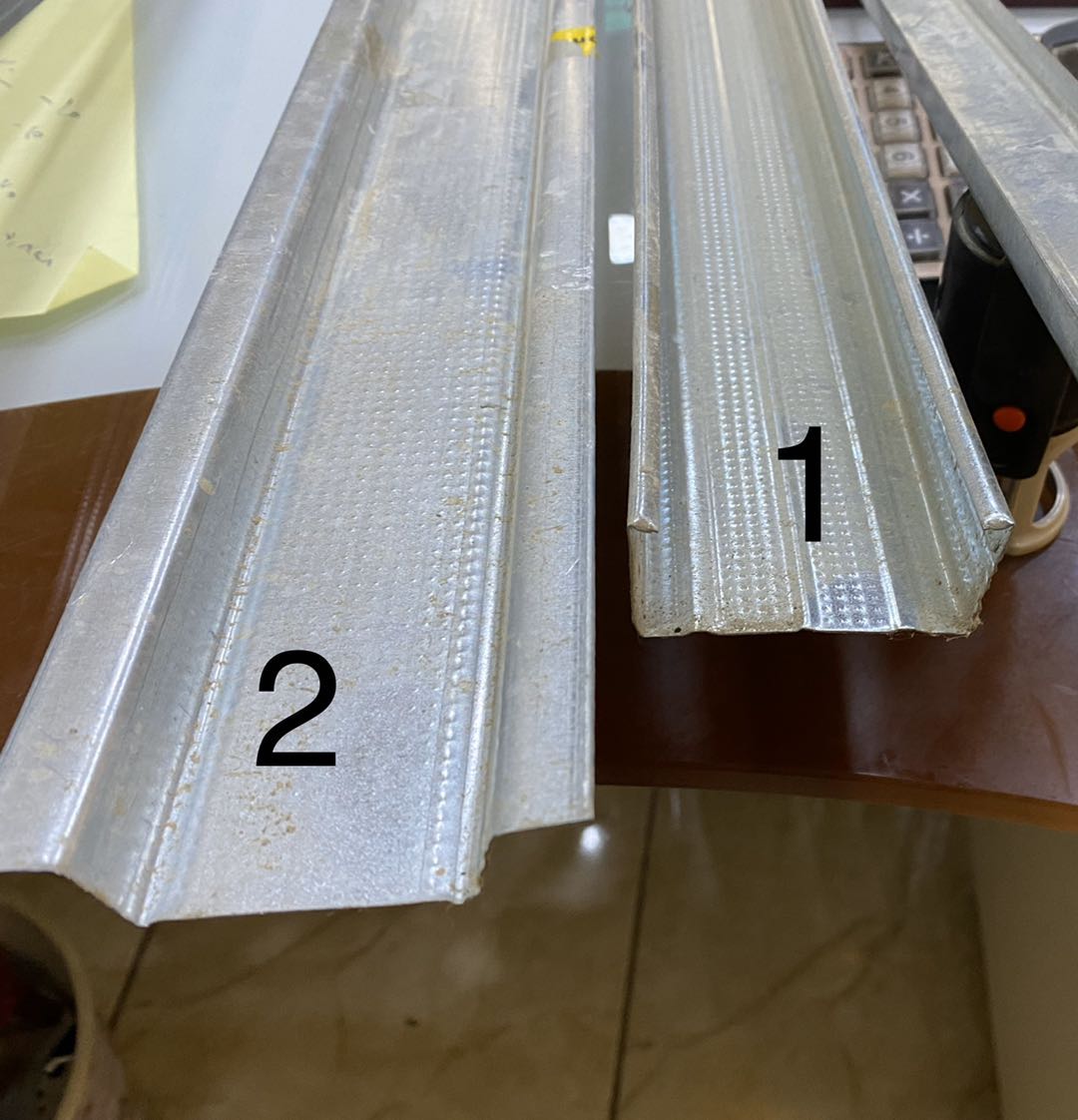

Steel light keel UCZ purlin roll forming machine
Inquire NowDescription
The Steel Light Keel UCZ Purlin Roll Forming Machine is engineered for precision and efficiency in the production of metal light keel UCZ purlins. Constructed with high-quality materials, this machine ensures durability and reliability, making it an essential asset for any manufacturing facility. It features a complete square frame design, ensuring stability during operation, while its advanced forming type and speed capability allow for efficient production processes. Ideal for users seeking high-performance machinery, this roll forming machine is equipped to handle various production needs with ease.
Specifications
| Attribute | Details |
|---|---|
| Production Name | Metal light keel UCZ purlin roll forming machine |
| Rolling Material | Galvanized Steel Sheet |
| Frame of Machine | Completed square frame |
| Forming Type | Archway type |
| Forming Speed | 0~50m/min |
| Step of Rollers | 10-11 Steps, leveling rollers |
| Wallboard Thickness | 16mm |
| Transmission Type | Gear drive |
| Material of Main Shaft | 45# quality steel, quenching |
| Spindle Diameter | ￠50 mm |
| Main Motor Power | 5.5 KW |
| Hydraulic Station Motor Power | 3.0 KW |
| Hydraulic Station Pressure | 12MPa |
| Material of Cutting Blade | Cr12, Quenched |
| Cutting Type | Hydraulic Cutting |
| Servo Moving Continuous Cutting | 1.5KW |
| Electric Control System | Whole Machine Adopts PLC |
| Machine Size | 5000x1000x1200mm |
Additional Information
Machine Composition:
- Main machine
- Decoiler: 1.5T
- Run-out table: 2 sets
- Add punching
