steel sheets metal roofing tile machine
Inquire NowDescription

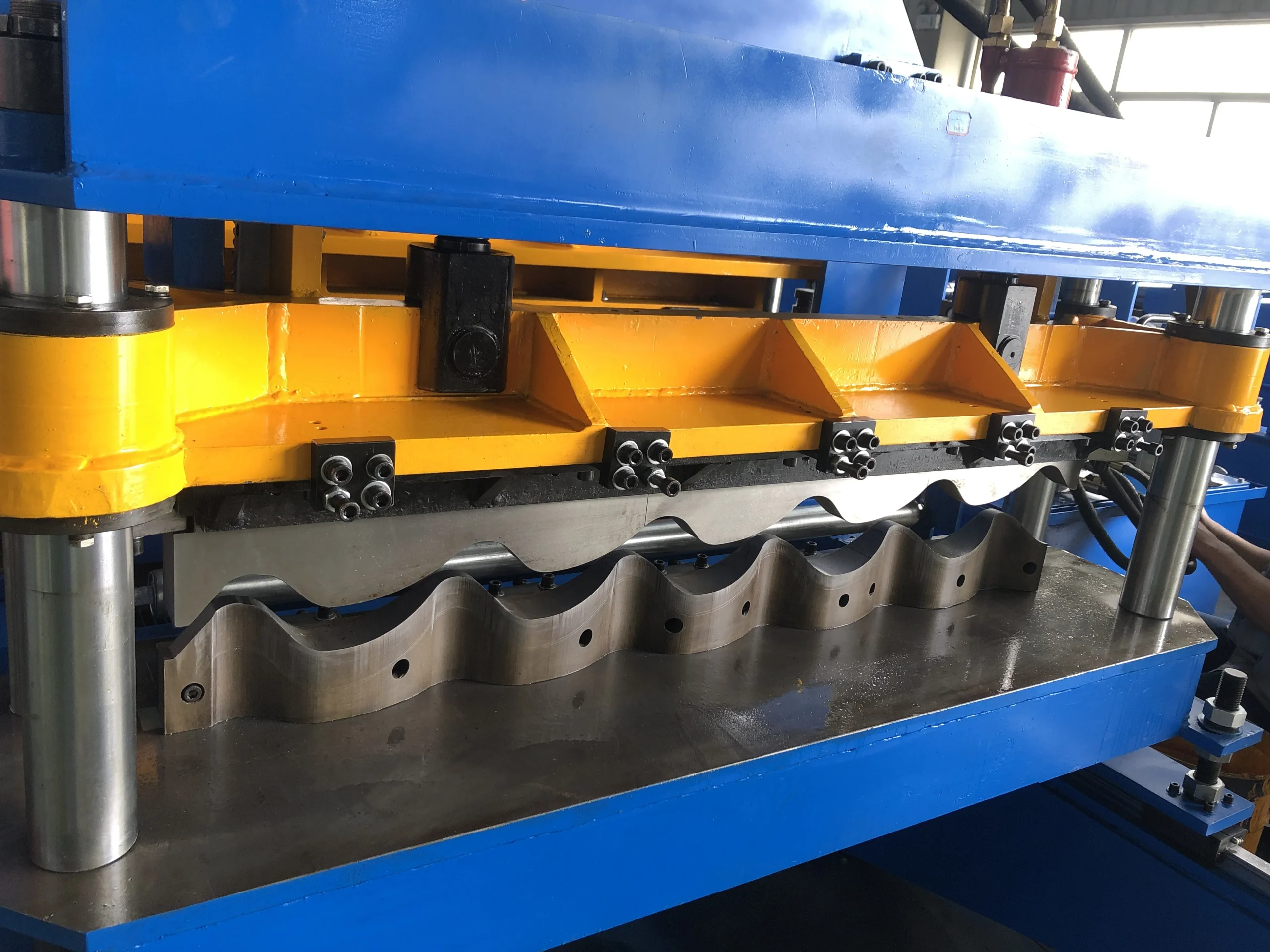

The Steel Roof Tile Forming Machine is designed for efficiency and ease of use, featuring a user-friendly remote control for seamless operation. This machine is perfect for producing high-quality steel roofing tiles, making it an essential tool for manufacturers in the construction industry. With a lifetime video online service, users can rely on continuous support and guidance. The machine is constructed with pre-painted and galvanized steel coils, ensuring durability and longevity in various weather conditions.
Specifications
| Product Name | Steel Roof Tile Forming Machine |
|---|---|
| Material | Pre-painted & Galvanized Steel Coil |
| Thickness (mm) | 0.3 – 0.6 |
| Yield Stress (MPa) | Q235 – 345 |
| Max Forming Speed (m/min) | 2-3; 5-6 |

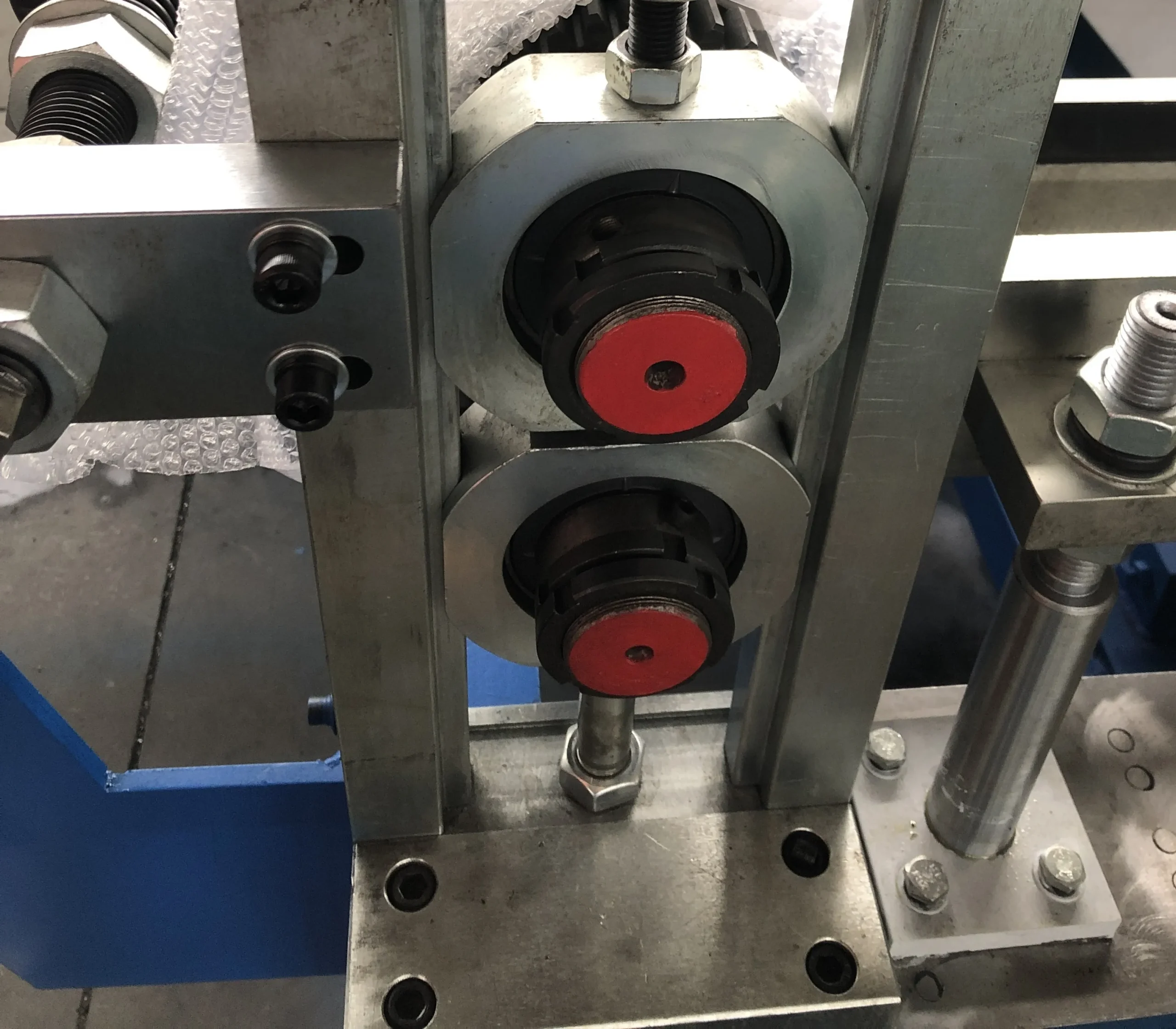

| Roller Material | #45 Steel with Hard Chrome Treatment |
| Roller Driven Type | Chain Transmission |
| Controller | PLC |
| Operation | Touch Screen and Button |
| Hydraulic System Pressure (MPa) | 12 |
| Main Motor Power (KW) | 5.5 |
| Hydraulic Station Motor Power (KW) | 5.5 |
| Dimension (L*W*H) | About 8000*1500*1500 mm |
| Weight (KG) | About 8000 |
Additional Information
Our service includes pre-sales consultation, on-purchase support, and after-sales service available 24/7. We offer technical suggestions, machine testing before shipment, and provide technical guidance on usage. A one-year warranty is included, and spare parts are available at cost price post-warranty. We also collect feedback on machine performance and offer long-term technical assistance.
