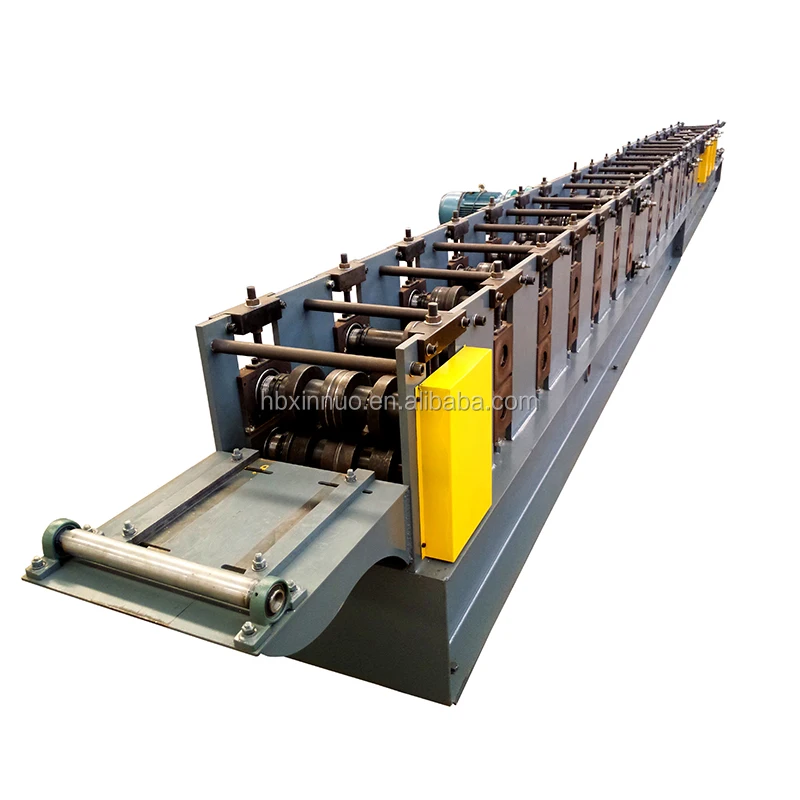

storage rack roll forming machine
Inquire NowDescription

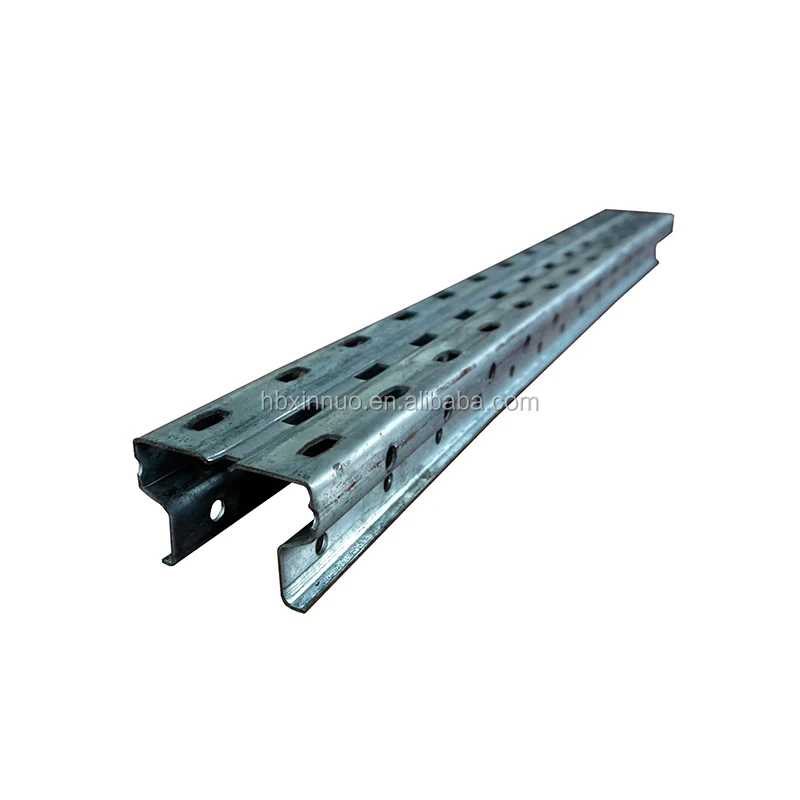

The storage rack roll forming machine is designed to efficiently produce cold steel profiles, specifically for applications in solar panel manufacturing and metal roofing. This robust machine is perfect for various industrial settings, including factories, civilian buildings, and warehouses, offering a blend of durability and aesthetic appeal. Its advanced engineering ensures that it meets the rigorous demands of the steel building manufacturing industry.
Specifications
| No. | Main Parameter | Details |
|---|---|---|
| 1 | Suitable to process | Color steel plate |
| 2 | Width of the plate | As customer need |
| 3 | Thickness of the plate | 0.8 – 2.0 mm |
| 4 | De-coiler | Manual, can load 5 tons raw material |
| 5 | Rollers for forming | 20 rows |
| 6 | Diameter of the roller | Φ 52 mm |
| 7 | Rolling material | Carbon Steel 45# |
| 8 | Main motor power | 4 kW |
| 9 | Productivity | 8-12 m/min |

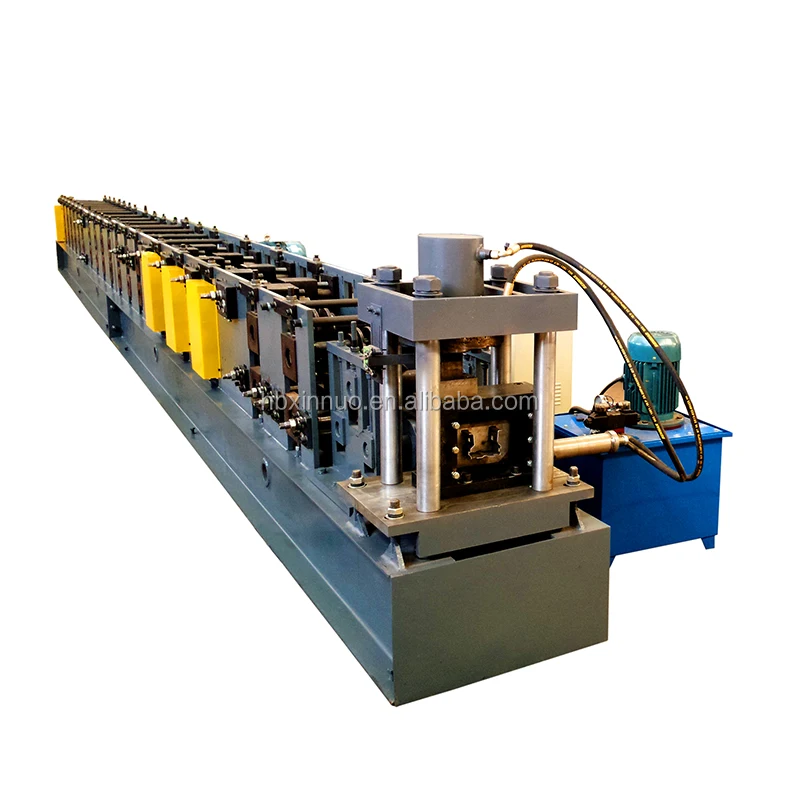

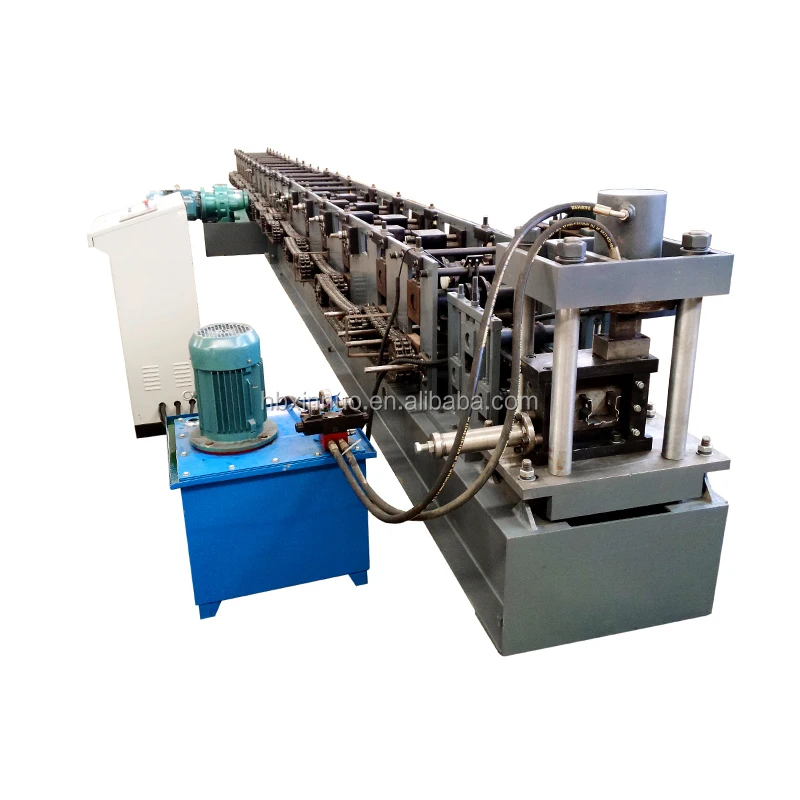

| 10 | Cutting method | Hydraulic mould cutting |
| 11 | Material of the cutting blade | Cr12 |
| 12 | Hydraulic cutting power | 3 kW |
| 13 | Processing precision | Within 1.00 mm |
| 14 | Control system | Delta PLC control |
| 15 | Side panel of machine | 14 mm |
| 16 | Main structure of the machine | 300 H steel |
| 17 | Weight | About 3.5T |
| 18 | Dimensions | 7.5 * 1.0 * 1.5 m |
| 19 | Voltage | 380V 50Hz 3phases (changeable as needed) |
| 20 | Certificate | CE/ISO/TUV |
Additional Information
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% to be paid by T/T after inspection by the buyer in the seller’s factory before delivery.
Delivery: 30 days after receipt of advance payment.
Service: We send a technician to your country to fix the machine. The buyer should bear all costs including visa, round-trip tickets, suitable accommodation, and a salary of $80/day.
