storage rack roll forming machine roofing sheet making machine metal roof tile making mach
Inquire NowDescription
The Storage Rack Roll Forming Machine is designed for the efficient production of roofing sheets and metal roof tiles. This robust machine is ideal for fabricating high-quality metal structures that meet the demands of modern construction. With its advanced PLC colored touch screen control system, operators can easily manage the production process, ensuring precision and consistency in every batch. Built with a durable 350H steel main frame and featuring a side plate thickness of 18mm, this machine is engineered for longevity and reliability.
Specifications
| Feature | Specification |
|---|---|
| Control System | PLC Colored Touch Screen |
| Main Frame | 350H STEEL |
| Side Plate Thickness | 18mm |
| Main Power | 15kw + 4kw |
| Power Supply | 380V, 3-Phase, 50Hz or any |
| Forming Speed | 8-12m/min |
| Roll Station | 19 stands |
| Shaft Diameter | 80mm |
| Feeding Thickness | 1.5-2.5mm |
| Cutter Standard | Cr12 |
| Roller Standard | 45# Plating Cr |
| Customization | Customized according to customer requirements |
Additional Information
Guarantee: 12 months guarantee. If any part of the machine is broken, we will supply the best part. If the damaged parts are due to operational error, the buyer will pay for the shipping fee.
After-sale Service: We send technicians to your country to fix the machine. The buyer should bear all costs including visa, roundtrip ticket, suitable accommodation, and a salary of $100/day.

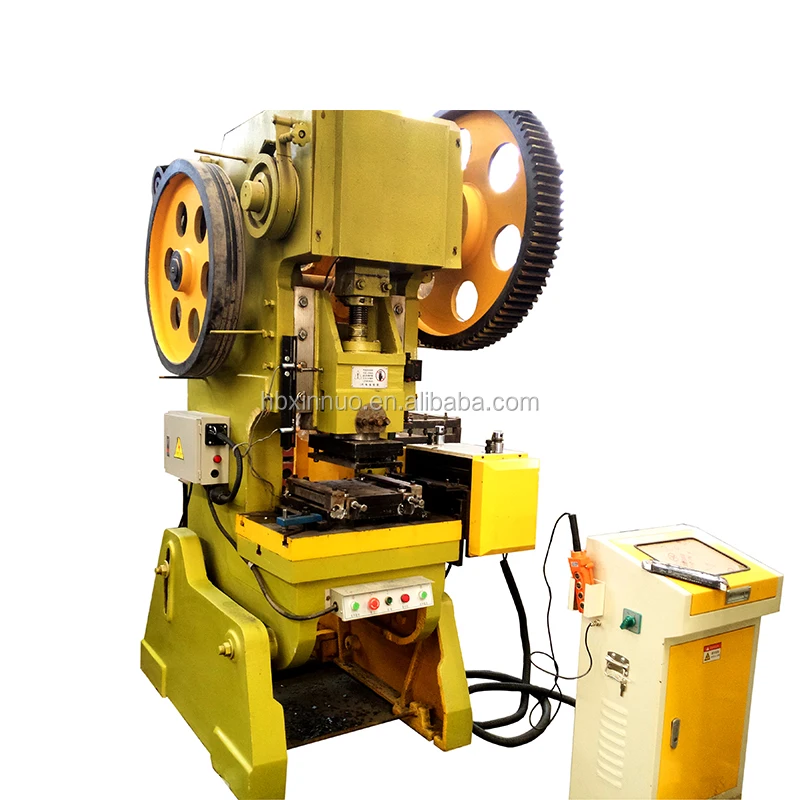

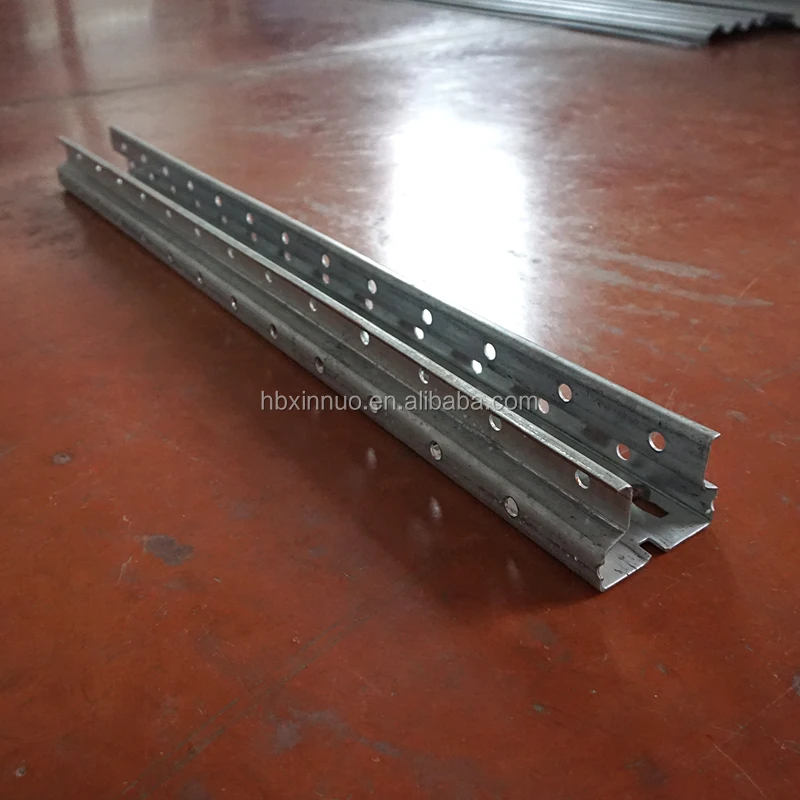

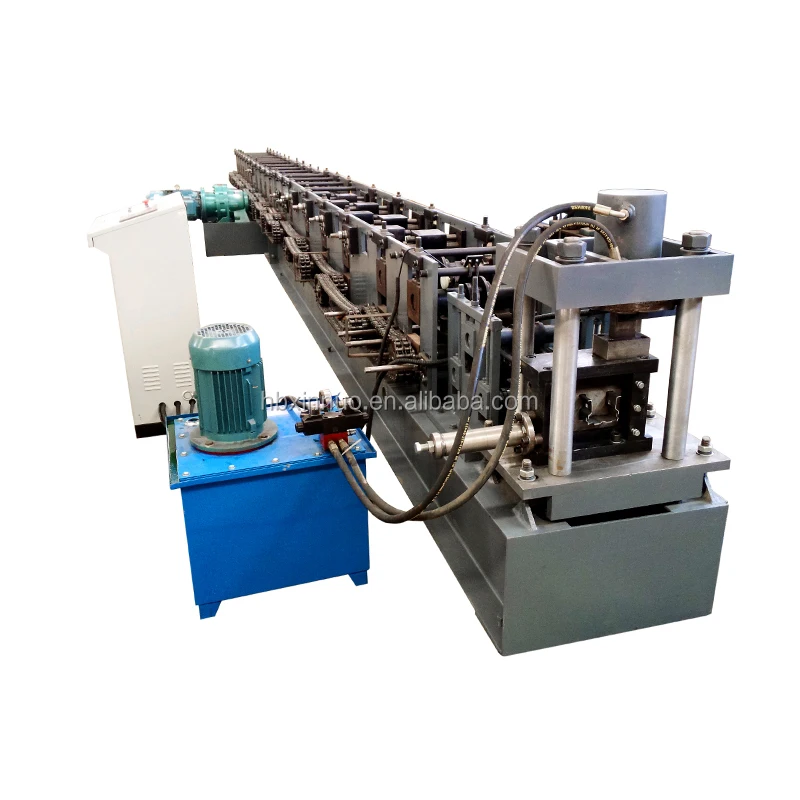

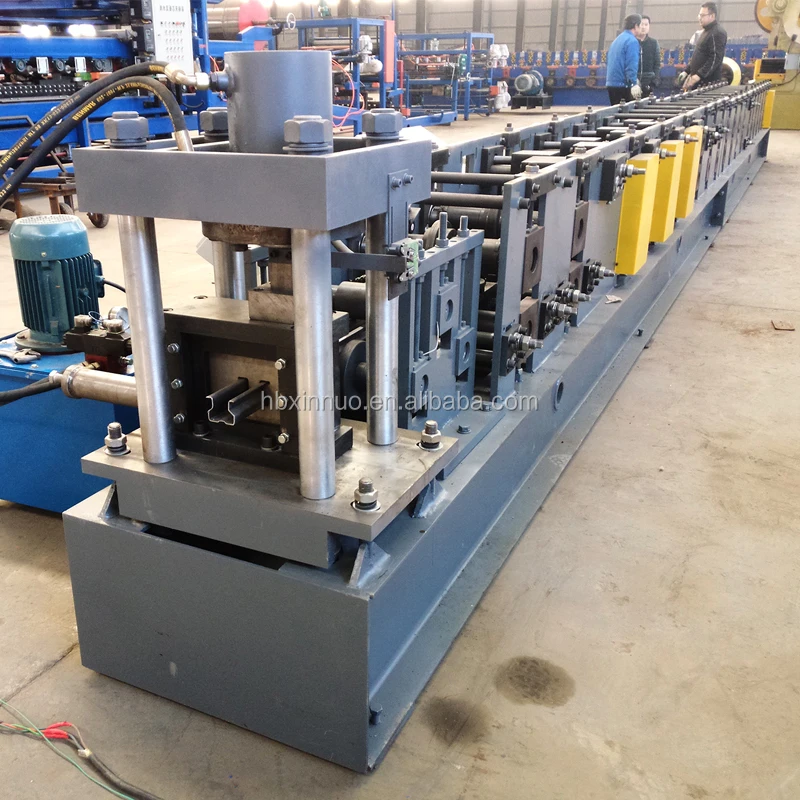

Product Pictures
