straighten and cutting machine for thickness less 1.5mm
Inquire NowDescription

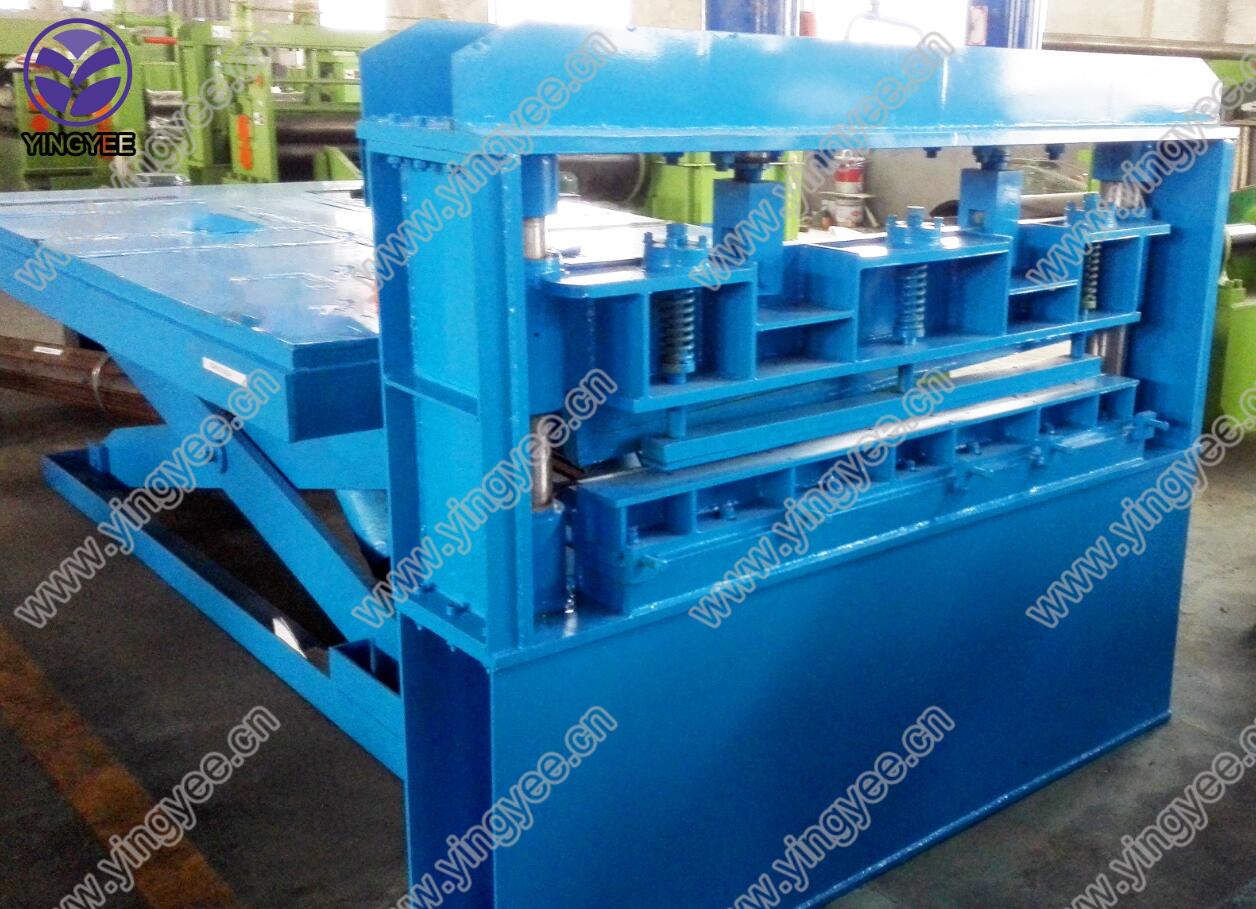

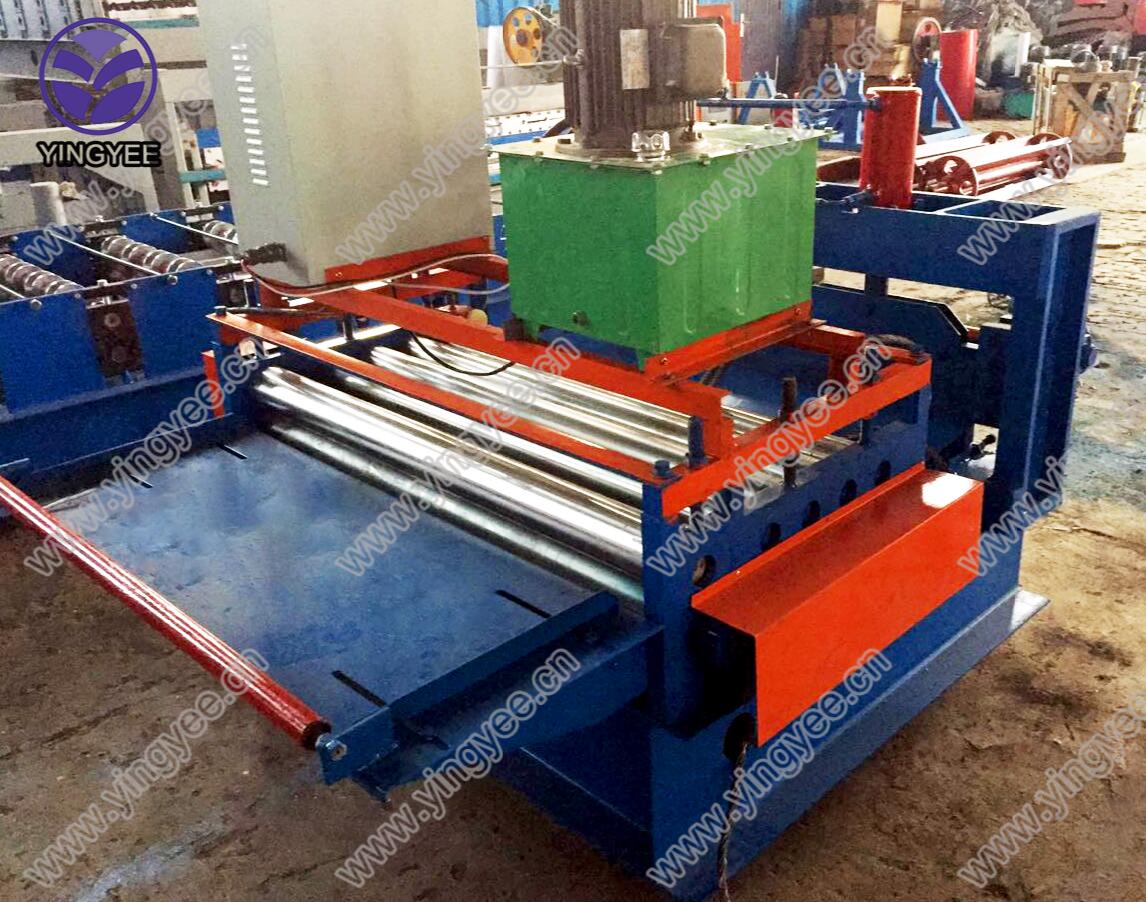

The Straightening Machine is an advanced, high-precision tool designed for leveling and cutting materials with a thickness of less than 1.5mm. This machine integrates both traction and leveling functions, equipped with a robust set of traction rollers and multiple leveling rollers to ensure superior performance. With its hard chromium-plated surfaces, the leveling and traction rollers offer enhanced durability and longevity, making this machine a reliable choice for various industrial applications.
Featuring a user-friendly hydraulic lifting system for the upper rollers, this machine guarantees ease of operation and efficiency. It works in conjunction with a cutting machine to deliver precise results, making it an essential addition to any workshop focused on quality and accuracy.
Specifications
| Attribute | Details |
|---|---|
| Material Thickness | 0.3 – 1.5 mm |
| Main Power | 5.5 KW (Hydraulic Motor) |
| Speed | 10 – 15 m/min |
| Straightening Rollers | 4+5 |
| Shaft Material | #45 Heat Treatment |
| Blade Material | GCr12 |
| Power Supply | 415V/50HZ/3 Phase |
| Manual Decoiler Capacity | 5 Ton |
| Control System | PLC System Integrated |
Additional Information
Designed for high efficiency, this straightening machine is perfect for various metalworking tasks. Ensure regular maintenance and check the hydraulic system to prolong the machine’s lifespan.
