straighten and cutting machine for thickness less 2.0mm

Inquire Now

Description

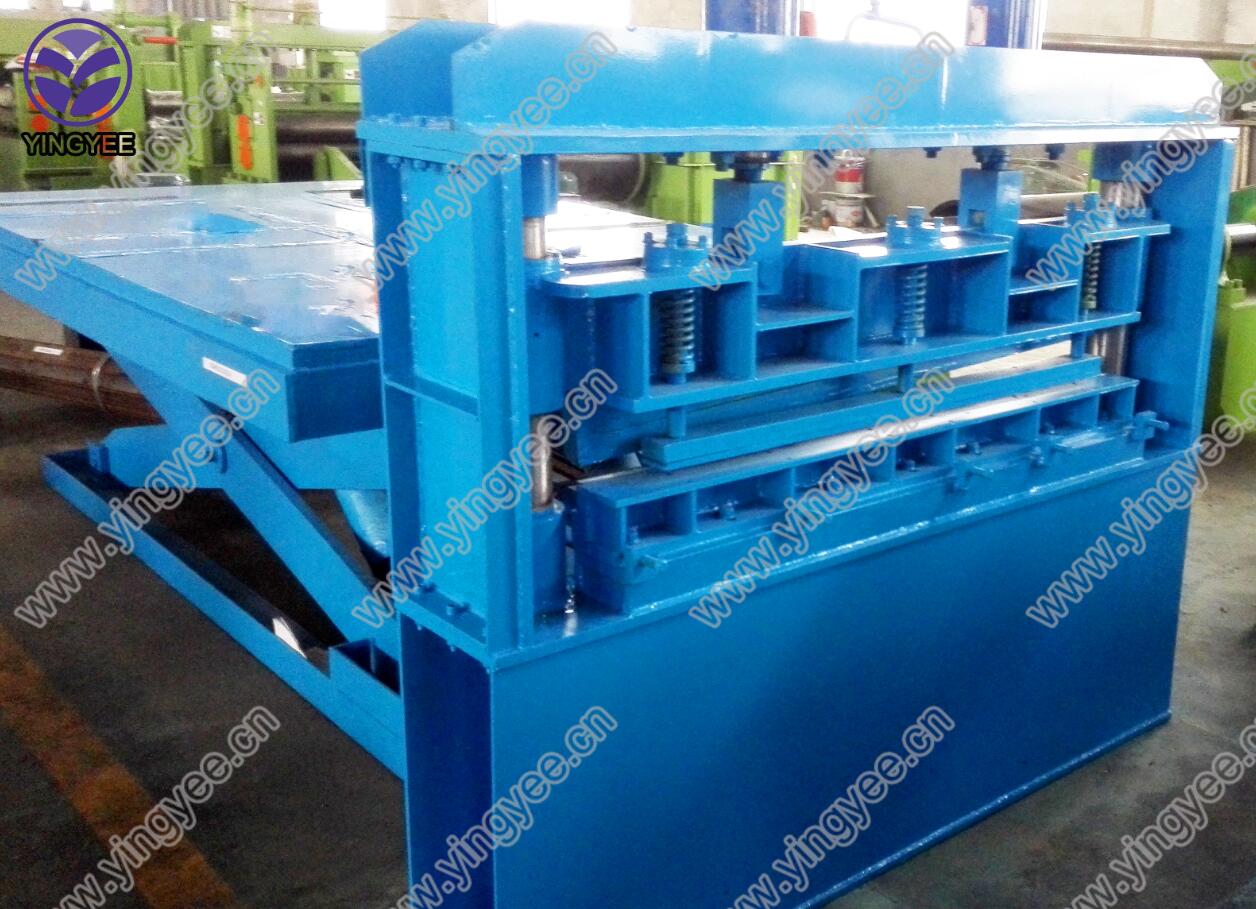

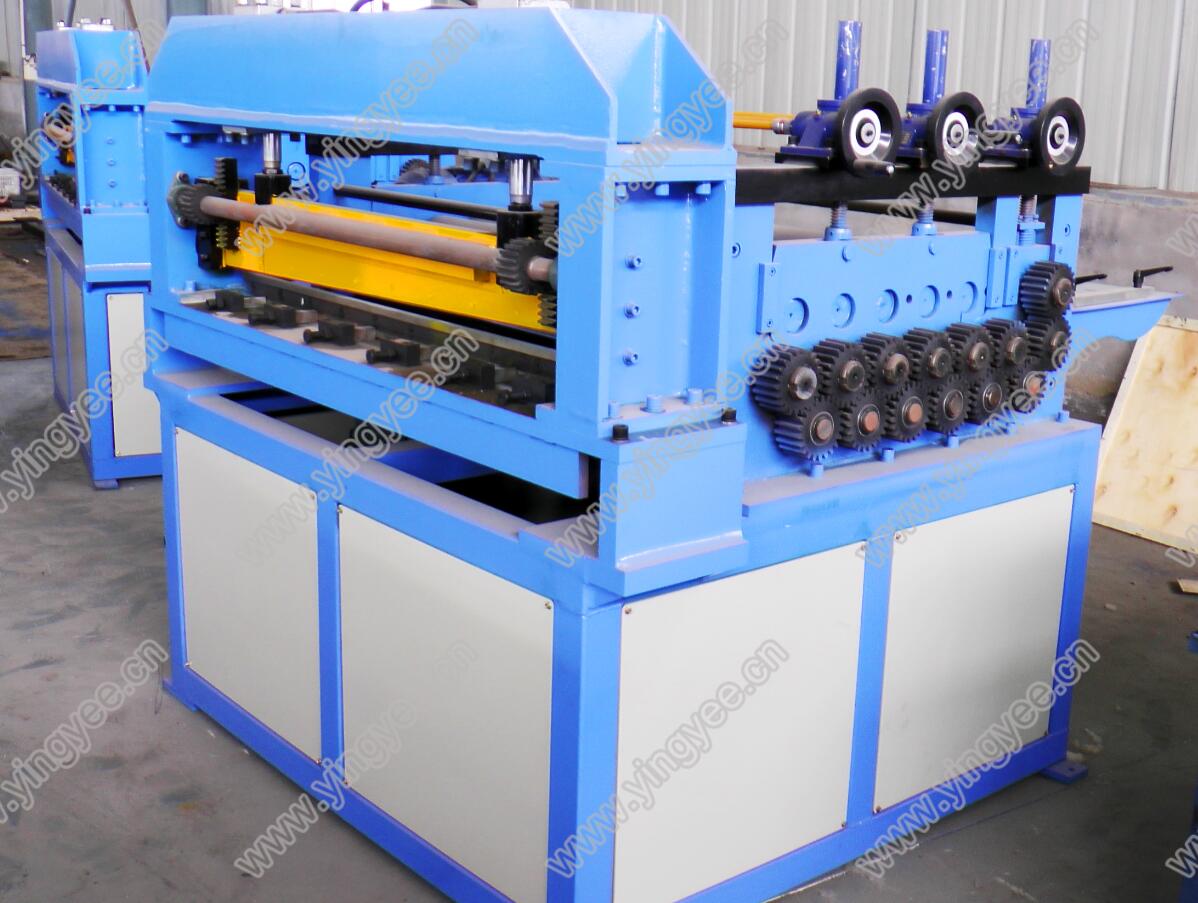

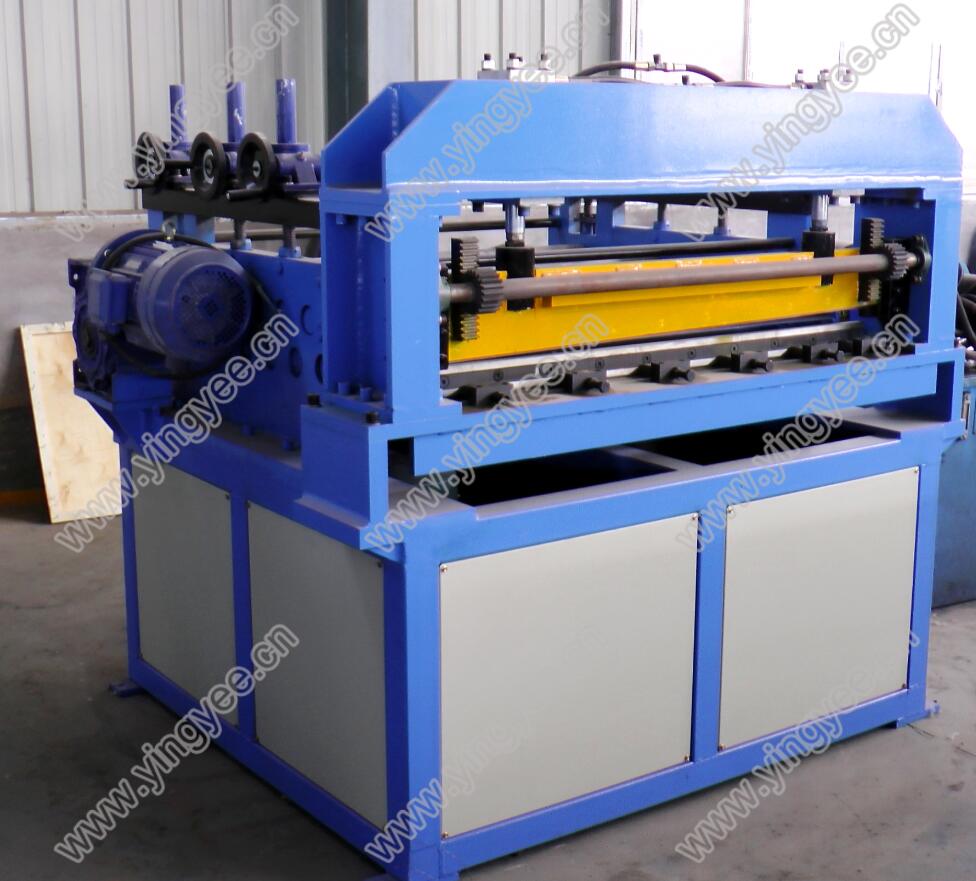

The Straightening and Cutting Machine is designed for materials with a thickness of less than 2.0mm, offering high precision in leveling and cutting operations. This advanced machine integrates both traction and leveling functions, making it an essential tool for metal working and fabrication industries. It is equipped with a set of traction rollers and four groups of leveling rollers, all featuring hard chromium plating to enhance durability and lifespan. The cylinder lifting mechanism of the upper roller ensures ease of operation, while the entire system is compatible with a cutting machine for streamlined processing.

Specifications

Parameter Details
Material Thickness Capability 0.3 – 1.5mm
Main Power 5.5KW (Hydraulic Motor)
Speed 10 – 15m/min
Straightening Rollers 4 + 5
Shaft Material #45 Heat Treatment
Blade Material GCr12
Power Supply 415V/50HZ/3 Phase
Manual Decoiler Capacity 5T
Control System PLC System Included

Additional Information

  • Ideal for high precision metal straightening and cutting.
  • Ensures increased durability with hard chromium plating on rollers.
  • Easy operation with advanced hydraulic lifting technology.
