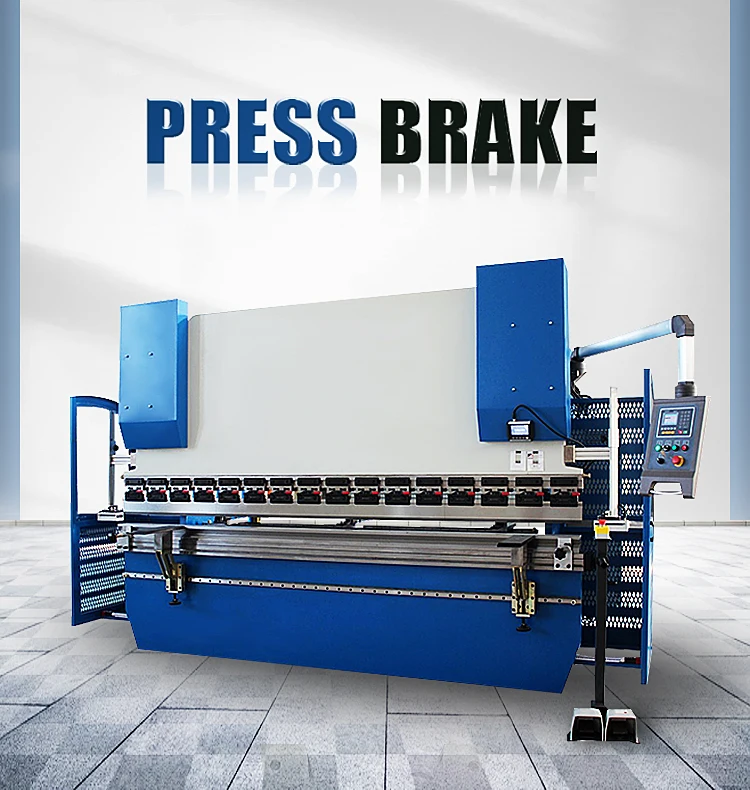

Strong Power Hydraulic Metal Press Brake Machine
Inquire NowDescription
The Strong Power Hydraulic Metal Press Brake Machine is engineered for precision and reliability in metal forming applications. Featuring an all-steel welded structure treated for internal stress relief, this robust machine stands out for its exceptional rigidity and stability. It integrates a high-performance hydraulic transmission system, enabling a wide range of speed regulation and ensuring stable performance during operation.
Notably, the machine incorporates electrical adjustments for the rear stopper and sliding block, facilitating manual fine-tuning with digital indication. The adjustment mechanism operates independently from the oil cylinder assembly, enhancing the sealing effect. Additionally, the upper mold is equipped with a tilting warp offset mechanism, ensuring accuracy in metal bending processes.
This versatile machine allows for combined operation of multiple units, making it an essential tool in any industrial metalworking environment.
Specifications
| Model | PB-300/5000 |
|---|---|
| Pessing force (KN) | 3000 |
| Working length (mm) | 5000 |
| Dist between housings (mm) | 3820 |
| Depth of throat (mm/s) | 400 |
| Stroke of the ram (mm) | 250 |
| Approaching speed (mm/x) | 60 |
| Working Speed (mm/x) | 5 |
| Returning speed (mm/s) | 48 |
| Adjustment of ram travel (mm) | 110 |
| Day light (mm) | 560 |
| Motor power (kw) | 15 |
| Weight (kg) | 26000 |
| L*W*H (mm) | 5100x2245x4210 |
Additional Information
The Strong Power Hydraulic Metal Press Brake Machine also offers various service options including overseas after-sales support in multiple countries, ensuring that customers have access to assistance when needed.
