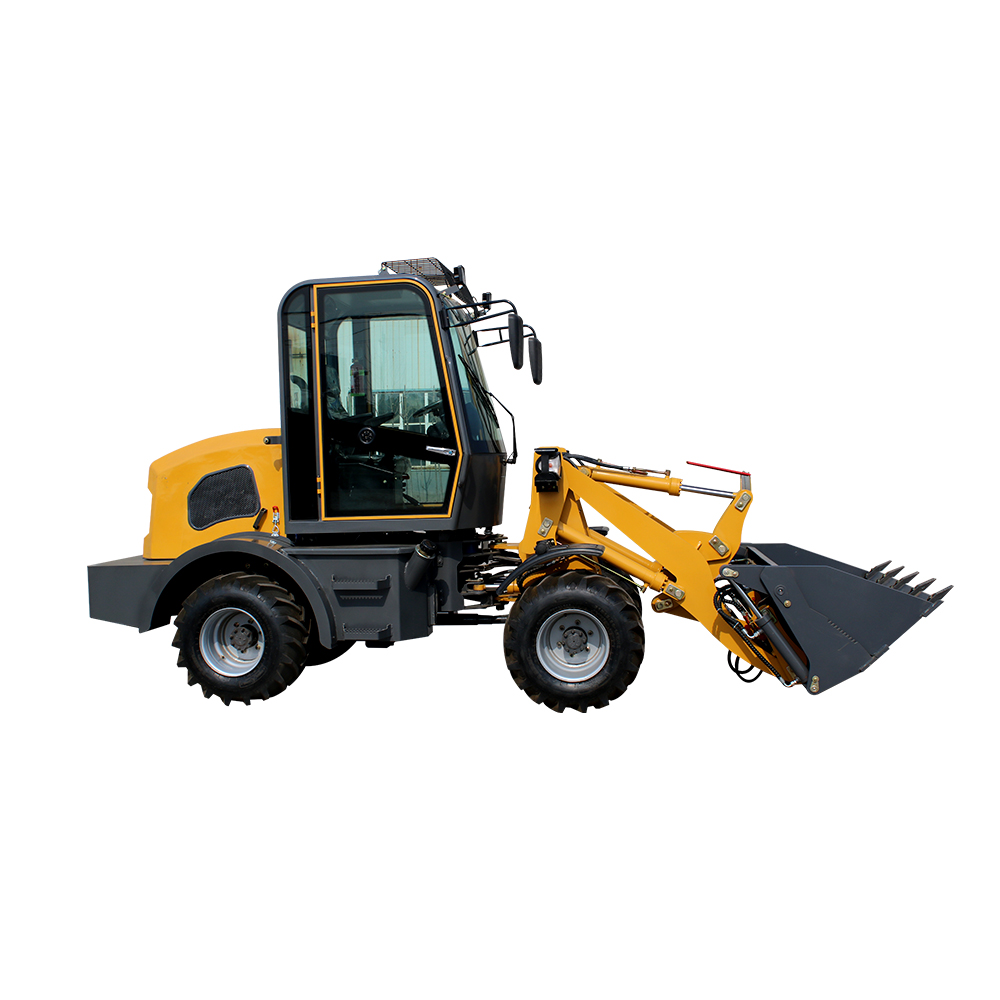

strongbull mini wheel loader zl808
Inquire NowDescription
The Strongbull Mini Wheel Loader ZL808 is a compact yet powerful machine designed for various construction and agricultural tasks. Its robust build and versatile bucket make it ideal for loading, lifting, and transporting materials in tight spaces. Engineered for efficiency, it features an articulate, full hydraulic steering system that ensures excellent maneuverability. With a rated load capacity of 800 kg and a bucket capacity of 0.4 m³, this mini loader is perfect for small to medium-sized projects.
Specifications
| Attribute | Details |
|---|---|
| Overall Dimension | 5050 * 1600 * 2550 mm |
| Overall Weight | 2880 kg |
| Bucket Capacity | 0.4 m³ |
| Rated Load | 800 kg |
| Unloading Height | 2500 mm |
| Min. Unloading Distance | 1000 mm |
| Min. Ground Clearance | 230 mm |
| Wheel Tread | 1200 mm |
| Wheel Base | 1960 mm |
| Engine Model | ZN390Q |
| Rated Power | 25 kW |
| Max. Torque | 102 N·m |
| Steering Pattern | Articulate, full hydraulic |
| Steering Angle | 34° ± 1° |
| Converter Model | 240 |
| Gearbox Pattern | Hydraulic transmission |
| Gear Shifts | 2 forward, 2 reverse |
| Tire Size | 20.5-16 |
