stud track roll forming machine sheet forming roll machine building material machinery

Inquire Now

Description

The stud track roll forming machine is an essential piece of building material machinery designed to efficiently produce metal components such as stud tracks and sheet forming rolls. This robust machine offers precision and reliability, making it ideal for the construction and manufacturing industries. It processes various materials including color steel plates, galvanized sheets, and aluminum coils, ensuring versatility for diverse applications. With an advanced PLC colored touch screen control system, operators can easily manage settings and monitor production, enhancing productivity and operational efficiency.

Specifications

No. Specification Details
1 Suitable to process Color steel plate, galvanized sheet, aluminum coils, etc.
2 Control System PLC Colored Touch Screen
3 Roller station 10 rows or custom
4 Thickness of feeding material 0.3-1.5 mm
5 Productivity 35-50 m/min
6 Rollers’ material 45# Plating Cr
7 Diameter of shaft 42 mm
8 Weight About 2.5 T
9 Size 5000*800*1600 mm
10 Voltage 380V 50Hz 3 phases
11 Cutter Standard GCr12
12 Main frame 18 mm steel welding
13 Motor power 5.5 + 4 kw

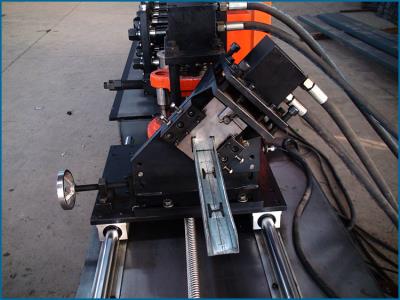

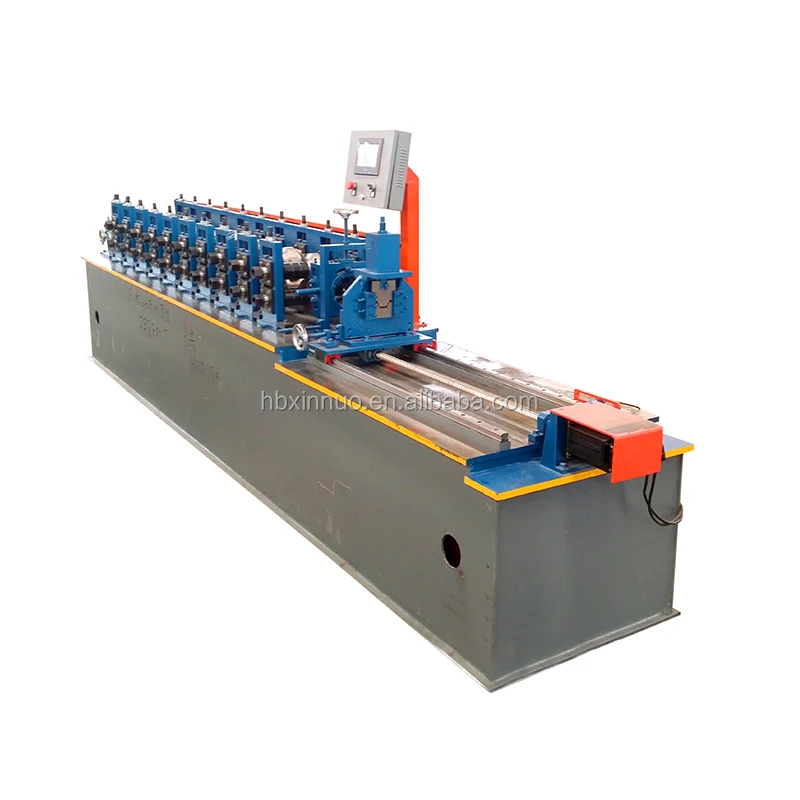

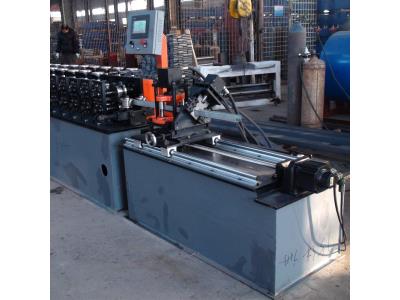

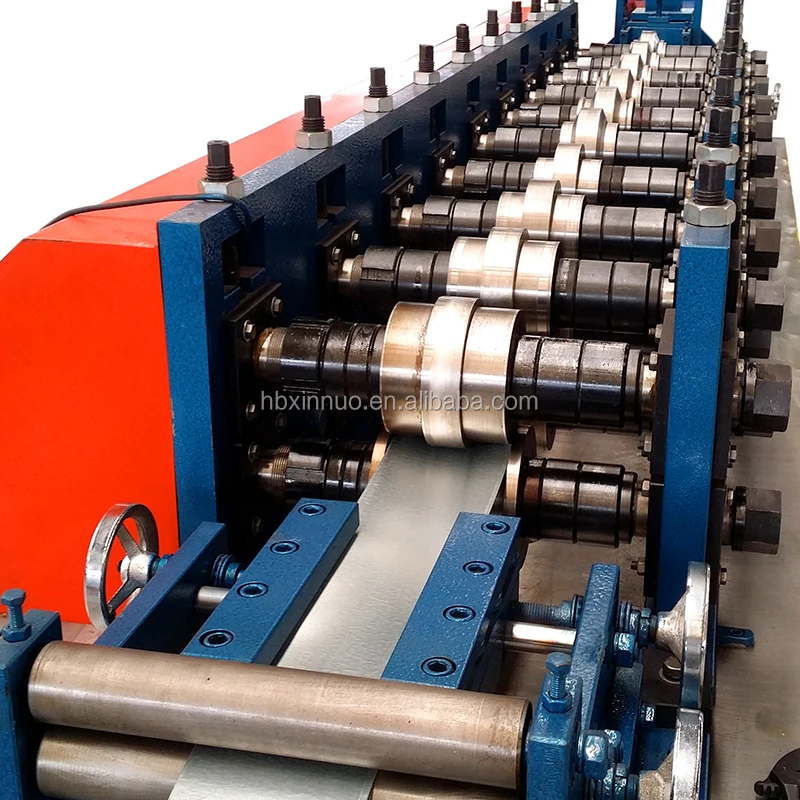

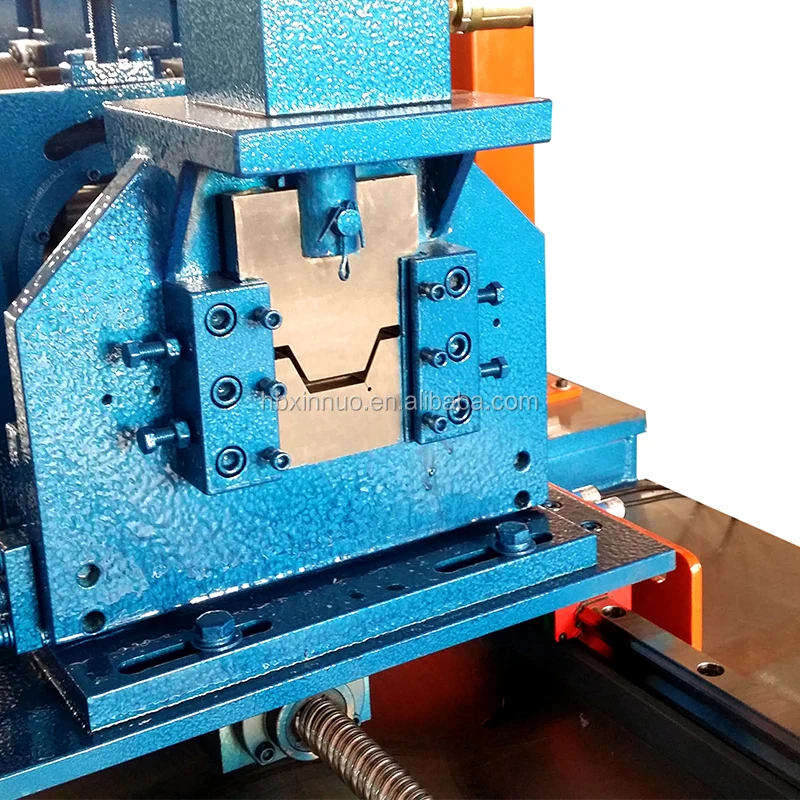

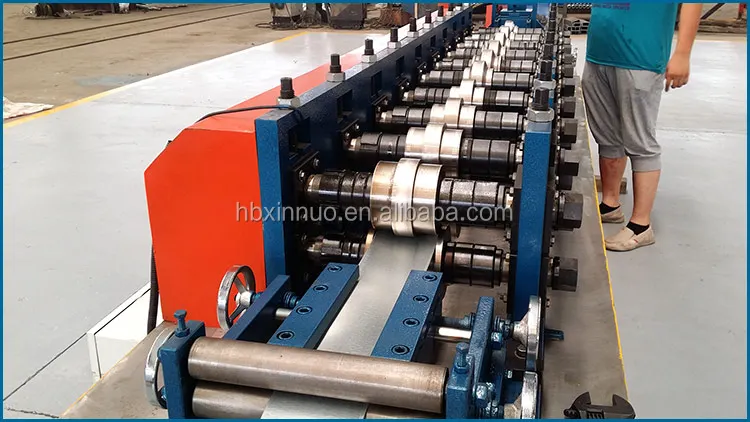

Product Pictures
