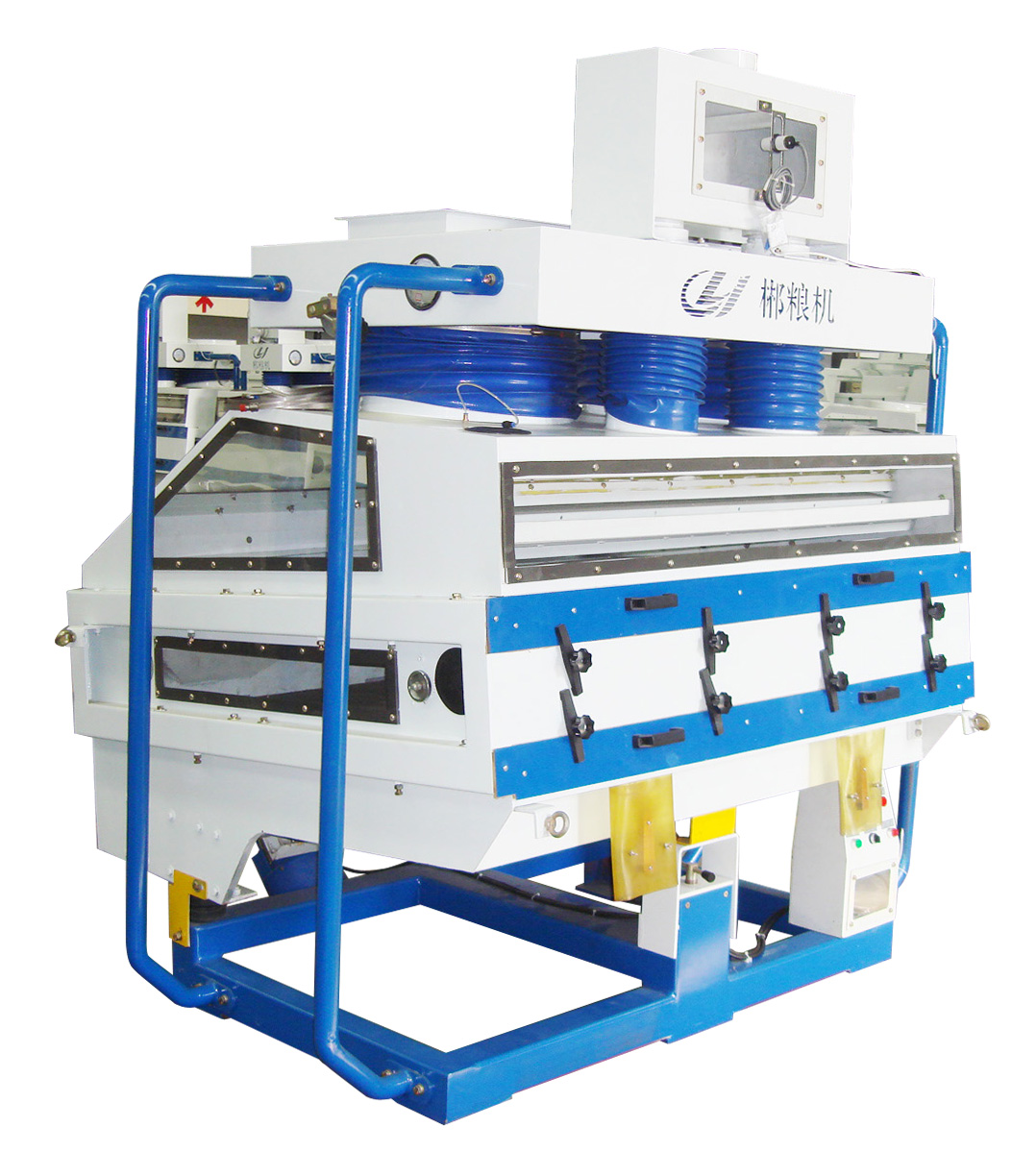

Suction Type Vibrating Stoner
Inquire NowDescription
Suction Type Vibrating Stoner is an advanced processing machine designed for efficient material handling and separation. This innovative equipment utilizes two motors to ensure smooth and stable operation, powered by an Intelligent Control System that enhances usability and performance. The state-of-the-art touch screen control board allows for easy operation with features such as automatic start for incoming materials and automatic shut-off when no materials are detected. The digital displays provide real-time feedback on negative pressure, motorized ventilation door control, amplitude number, and feeding quantity, making it an essential tool for modern processing facilities.
Specifications
| Model | Yield Capacity (Paddy) | Power | Air Volume | Dimensions (W x H) |
|---|---|---|---|---|
| TQS × 120 × 2 | 7-10t / h | 2 × 0.25kW | 7500 ~ 8500 m³ / h | 1650 × 1570 × 2260 mm |
| TQSX160 × 2A | 12 ~ 15t / h | 2 × 0.3kW | 10000 ~ 12500 m³ / h | 1710 × 2010 × 2320 mm |
| TQSX180 × 2 | 16 ~ 20t / h | 2 × 0.3kW | 12000 ~ 14000 m³ / h | 2200 × 2300 × 2240 mm |
Additional Information
For optimal performance, ensure the machine is regularly maintained and operated in accordance with the provided guidelines. The touch screen control interface includes an operation guide to assist users in familiarizing themselves with the machine’s features and settings.
