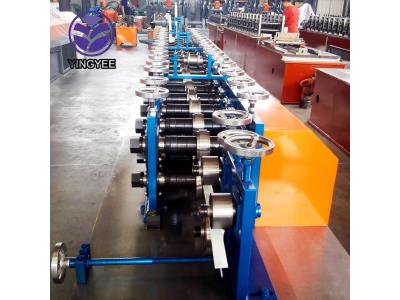

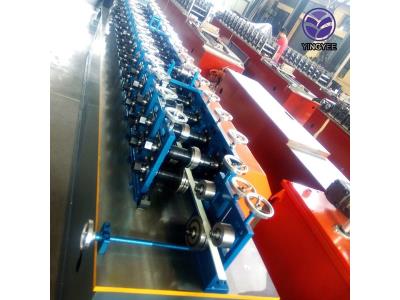

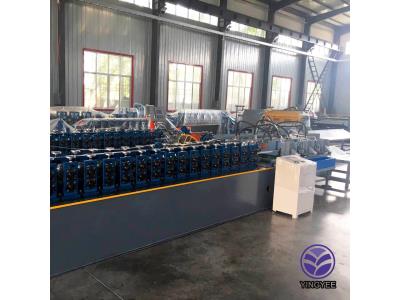

T-Ceiling production line

Inquire Now

Description

The T-Ceiling production line is a sophisticated and efficient system designed for manufacturing ceiling panels and structures. It offers a robust solution for various production needs, utilizing advanced roll forming technology to ensure high precision and quality. The production line includes multiple components such as a manual de-coiler, roll forming machines, and a receiving table, all engineered to work seamlessly together.

With capabilities to handle materials like PPGI and galvanized steel, the T-Ceiling production line can produce panels with thicknesses ranging from 0.3 to 0.5 mm. The inclusion of a PLC-controlled system enhances automation, providing efficient operation and consistent results in manufacturing.

Specifications

Component Description
Main Tee
  • 2 tons manual de-coiler (vertical type) x2
  • Main tee roll forming machine x1
  • Matching Material: PPGI/GI
  • Thickness: 0.3-0.5mm
  • Main Power: 5.5kW
  • Wall Panel: Standing plate with iron casting
  • Forming Speed: Up to 25m/min (with punch)
  • Shaft Material and Diameter: #45 steel, 50mm
  • Roller Material: Cr12
  • Cutter Blade Material: Cr 12 mould steel, HRC 58-62℃
  • Forming Steps: 16 steps
Cross Tee
  • 2 tons manual de-coiler (vertical type) x2
  • Cross tee roll forming machine x1
  • Matching Material: PPGI/GI
  • Thickness: 0.3-0.5mm
  • Main Power: 5.5kW
  • Wall Panel: Standing plate with iron casting
  • Forming Speed: Up to 25m/min
  • Shaft Material and Diameter: #45 steel, 50mm
  • Roller Material: Cr12
  • Cutter Blade Material: Cr 12 mould steel, HRC 58-62℃
  • Forming Steps: 16 steps
Angle
  • 2 tons manual de-coiler (vertical type)
  • Angle roll forming machine:
    • Matching Material: Galvanized steel, thickness: 0.3-0.5mm
    • Speed: 0-40m/min with servo tracking punch and cutting (automatic control)
    • Material of Forming Rollers: Cr12
    • Material of Cutter Blade: Cr 12 mould steel with quenched treatment, HRC 58-62℃
    • Controlling System: PLC
    • Roll Forming Steps: 8 steps

Additional Information

For optimal performance, ensure regular maintenance of the machinery and check all components for wear and tear. This production line is best suited for industrial settings where high-volume ceiling panel production is required.
