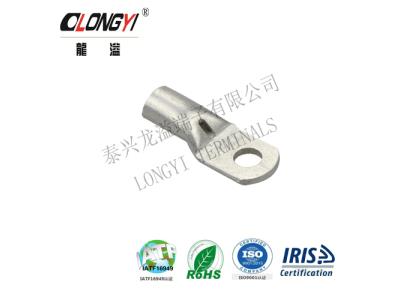

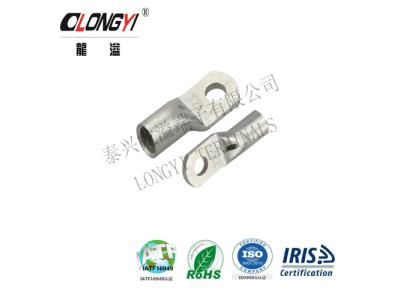

T COPPER TUBE TERMINALS
Inquire NowDescription
The T Copper Tube Terminals are engineered for reliable performance in various electrical applications. These terminals are designed to securely connect copper conductors, ensuring optimal conductivity and durability. With a range of sizes and specifications, they are perfect for both professional electricians and DIY enthusiasts seeking to achieve a robust connection in their electrical systems. Each terminal is crafted with precision, featuring standardized sizes to fit different wire gauges, making installation straightforward and efficient.
Specifications
| Part No | Item No | ΦE | ΦD | Φd | W | B | L |
|---|---|---|---|---|---|---|---|
| LY0001-0001 | T1.5-4 | 4.3 | 4.0 | 2.4 | 8.7 | 7.0 | 19.0 |
| LY0001-0002 | T1.5-5 | 5.3 | 4.0 | 2.4 | 8.7 | 7.0 | 19.0 |
| LY0001-0003 | T1.5-6 | 6.4 | 4.0 | 2.4 | 10.0 | 7.0 | 20.0 |
| LY0001-0004 | T2.5-4 | 4.3 | 4.3 | 2.7 | 8.7 | 7.0 | 19.0 |
| LY0001-0005 | T2.5-5 | 5.3 | 4.3 | 2.7 | 8.7 | 7.0 | 19.0 |
| LY0001-0006 | T2.5-6 | 6.4 | 4.3 | 2.7 | 10.3 | 7.0 | 21.0 |
| LY0001-0007 | T2.5-8 | 8.3 | 4.3 | 2.7 | 12.0 | 7.0 | 23.0 |
| LY0001-0008 | T4-4 | 4.3 | 4.8 | 3.1 | 8.7 | 9.5 | 21.5 |
| LY0001-0009 | T4-5 | 5.3 | 4.8 | 3.1 | 8.7 | 9.5 | 21.5 |
| LY0001-0010 | T4-6 | 6.4 | 4.8 | 3.1 | 10.3 | 9.5 | 23.5 |
| LY0001-0011 | T4-8 | 8.3 | 4.8 | 3.1 | 12.5 | 9.5 | 28.5 |
| LY0001-0012 | T6-4 | 4.3 | 5.5 | 3.8 | 10.3 | 10.0 | 26.0 |
| LY0001-0013 | T6-5 | 5.3 | 5.5 | 3.8 | 10.3 | 10.0 | 26.0 |
| LY0001-0014 | T6-6 | 6.4 | 5.5 | 3.8 | 10.3 | 10.0 | 26.0 |
| LY0001-0015 | T6-8 | 8.3 | 5.5 | 3.8 | 13.9 | 10.0 | 29.0 |
| LY0001-0016 | T6-10 | 10.5 | 5.5 | 3.8 | 13.9 | 10.0 | 29.0 |
| LY0001-0017 | T10-4 | 4.3 | 6.9 | 4.7 | 11.9 | 11.5 | 27.5 |
| LY0001-0018 | T10-5 | 5.3 | 6.9 | 4.7 | 11.9 | 11.5 | 27.5 |
| LY0001-0019 | T10-6 | 6.4 | 6.9 | 4.7 | 11.9 | 11.5 | 27.5 |
| LY0001-0020 | T10-8 | 8.3 | 6.9 | 4.7 | 13.5 | 11.5 | 30.5 |
| LY0001-0021 | T10-10 | 10.5 | 6.9 | 4.7 | 15.0 | 11.5 | 30.5 |
| LY0001-0022 | T10-12 | 13.2 | 6.9 | 4.7 | 17.0 | 11.5 | 34.0 |
| LY0001-0023 | T16-5 | 5.3 | 7.8 | 5.6 | 12.0 | 12.0 | 27.5 |
| LY0001-0024 | T16-6 | 6.4 | 7.8 | 5.6 | 12.0 | 12.0 | 27.5 |
Additional Information
- Ideal for electrical installations.
- Ensure to match the terminal size with the conductor gauge for optimal performance.
