Description

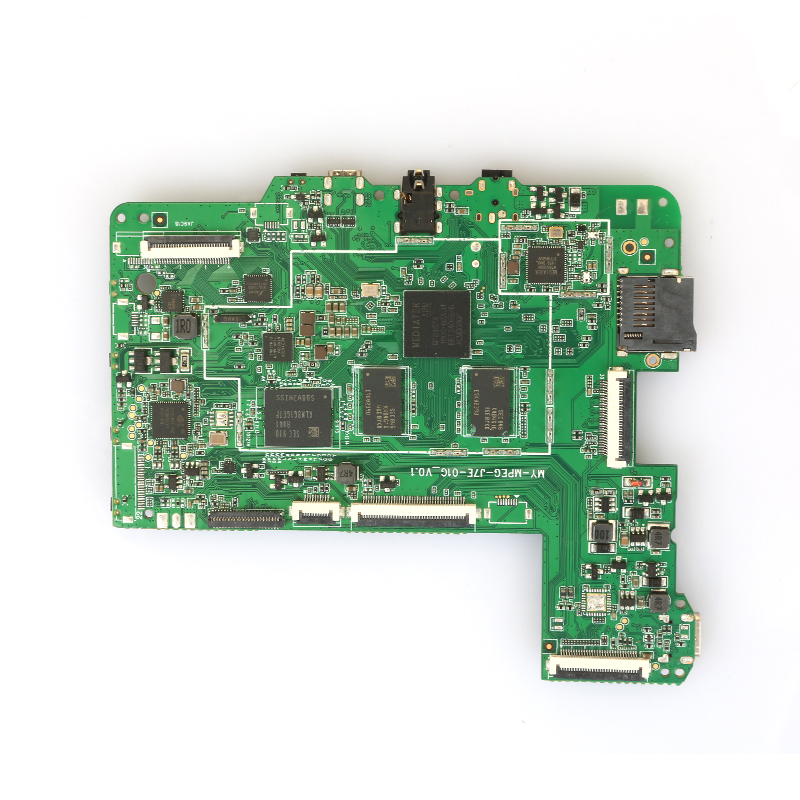

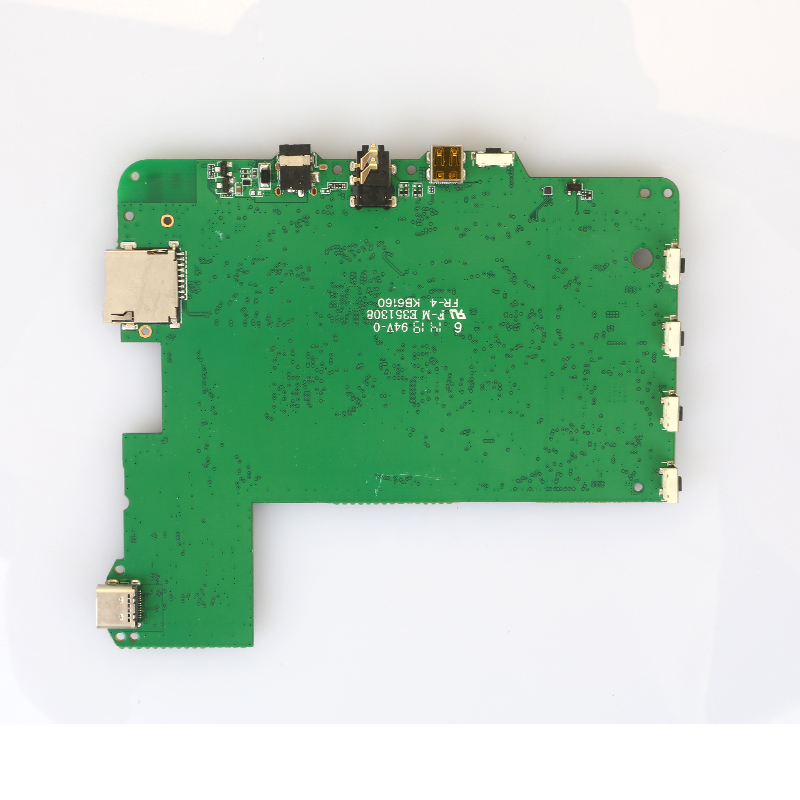

The Tablet PCBA is a powerful and versatile circuit board designed for modern tablets, offering advanced processing capabilities and connectivity options. Featuring the MTK Quad-Core, Cortex-A35 MPCore processor, this device operates at a speed of 1.3GHz, ensuring smooth performance for a variety of applications. With options for RAM and storage, the Tablet PCBA can be customized to meet different user needs.
This innovative product supports various connectivity features, including dual-band WiFi, Bluetooth 4.1, and multiple navigation systems such as GPS, Glonass, and Beidou. It also includes a Micro USB switch to Ethernet network support, enhancing its versatility in connectivity. The Tablet PCBA is designed to accommodate external memory through a Micro SD/SDHC slot, and it features essential ports like Micro HDMI, a Type-C charging connector, and a standard 3.5mm headphone jack.
Whether for personal use or embedded in a larger system, the Tablet PCBA stands out with its robust specifications and features that cater to modern tablet requirements.
Specifications
| Component | Details |
|---|---|
| CPU Type | MTK Quad-Core, Cortex-A35 MPCore, MT8167B |
| CPU Speed | 1.3GHz |
| GPU Type & Speed | IMG GE8300 500MHz |
| RAM Type | LPDDR3*2 |
| RAM Size | 2G/4G Optional |
| ROM Type | eMMC |
| ROM Size | 16GB/32GB/64GB Optional |
| WiFi Module | MT6630Q: 2.4G+5G: 802.11a/b/g/ac |
| Bluetooth Module | BT4.1 |
| Navigation Type | GPS/Glonass/Beidou |
| Ethernet Network | Supported via Micro USB switch |
| Memory Card Socket | Micro SD/SDHC |
| HDMI Type | Micro HDMI (1.4a) |
| Charging Connector Type | Type-C |
| USB Interface Type | Type-C USB 2.0/OTG |
| Headphone Jack | ∮ 3.5mm standard headphone jack CTIA |
| Keyboard Pogo-pin | Built-in |
| SIM Card Interface | Built-in |
Additional Information
- Flexible configuration options for memory and storage allow customization based on user needs.
- Designed for efficient power management to enhance battery life.
