Description

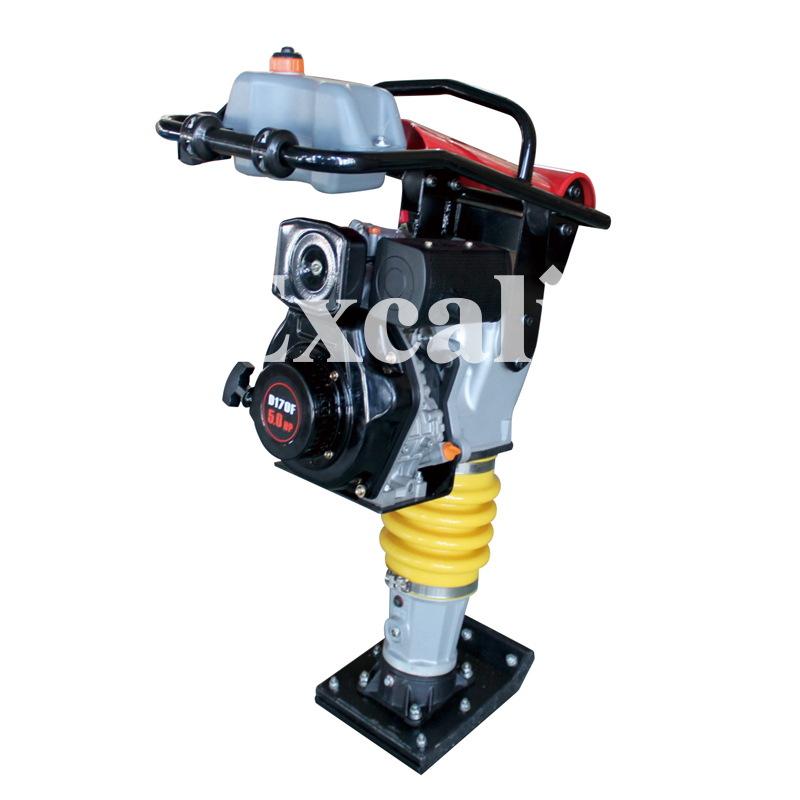

The Excalibur Tamping Rammer is a powerful compacting machine designed for effective impact vibration to compact backfill in layers. This robust equipment excels at impact compaction, particularly for cohesive soils, making it an essential tool in construction. It is particularly suitable for a variety of environments including building sites, courtyards, subgrades, bridge piles, trenches, and narrow spaces where larger machinery may fall short. While this rammer is highly efficient for detailed compaction tasks, it is important to note its limitations with large-area earth compaction.
Specifications
| Attribute | Specification |
|---|---|
| Model | SR75 |
| Bottom Plate Size (mm) | 300 x 280 |
| Impact Frequency (t/min) | 640 – 680 |
| Jump Stroke | 55 – 85 |
| Impact Force (KN) | 12 |
| Fuel Tank Capacity (L) | 2.8 |
| Starting System | Recoil Starter |
| Engine Model | Loncin 149cc |
| Packing Size (mm) | 775 x 550 x 1120 |
| Net Weight (KG) | 75 |
Additional Information
For optimal performance, ensure the tamping rammer is used in environments that require precise compaction, and always adhere to operational guidelines for safety and efficiency.
