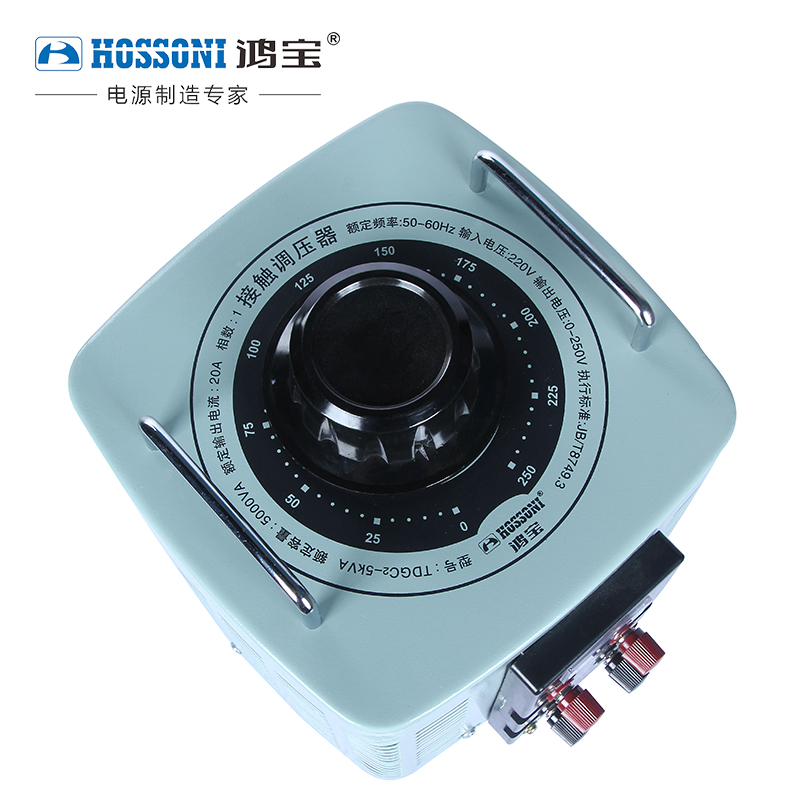

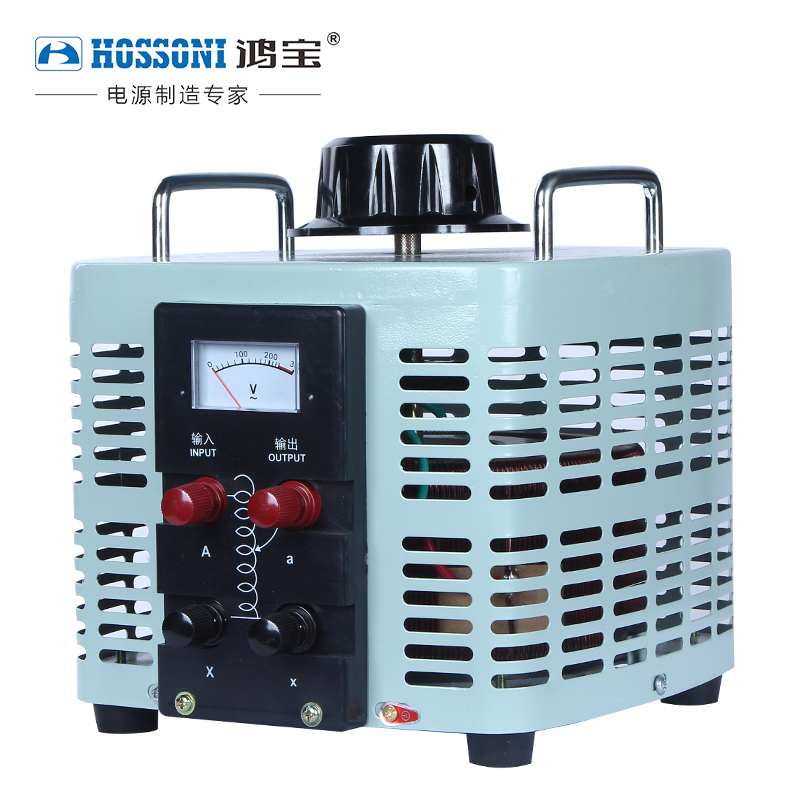

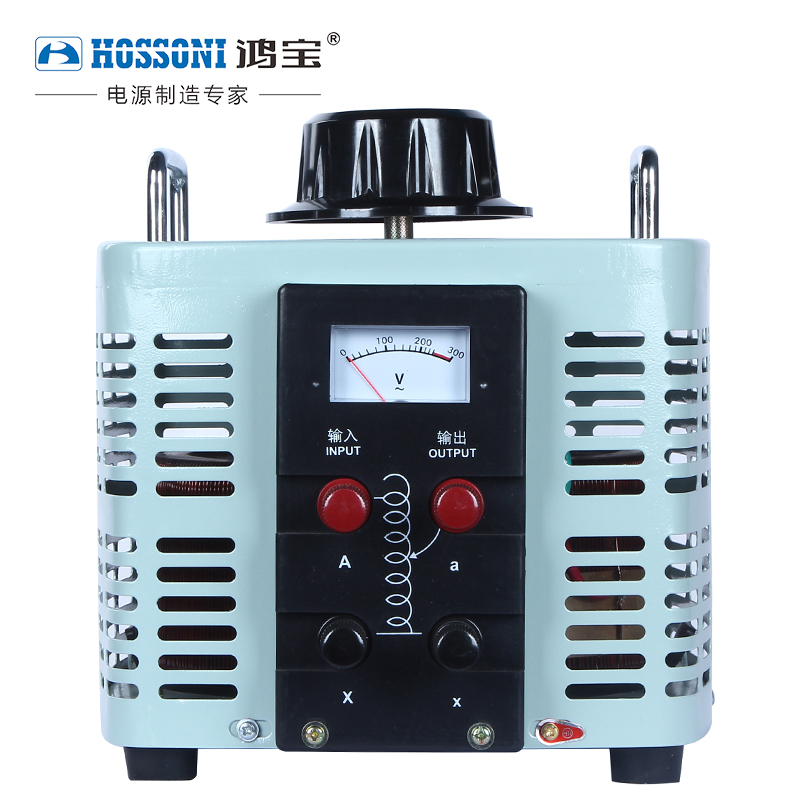

TDGC2-5KVA AC REGULATOR 0-250V 0-300V With Pure Copper Wiring
Inquire NowDescription
The TDGC2-5KVA AC Regulator is a high-quality, single-phase voltage regulator designed for efficient voltage regulation across a variety of applications. With a capacity of 5KVA, it operates within a voltage range of 0-250V and 0-300V, making it suitable for various industrial and household needs. This regulator features pure copper wiring, ensuring durability and reliability. It is CE and ISO9001 certified, reflecting its adherence to international quality standards.
Service Occasions: This voltage regulator is utilized widely for tasks such as voltage regulation, temperature control, speed adjustment, lighting changes, and power control. It finds applications in industries such as chemical, metallurgy, instrumentation, machinery manufacturing, light industry, public equipment, and household appliances.
Power 100%: (Notice: 1KVA = 1000VA = 800W)
Model Variants: Available in capacities of 200VA, 500VA, 1000VA, 2000VA, 3000VA, and 5000VA.
Note: We exclusively use pure copper to ensure maximum power efficiency.
Specifications
| A) Input Voltage (Standard): | 220V | Frequency: | 50HZ/60HZ |
|---|---|---|---|
| B) Input Voltage (Special): | 230V/240V (different price) | Adjustable Time: | <1s (when input voltage changes by 10%) |
| A) Standard Output: | 0-250V | Ambient Temperature: | -5 ºC to +45 ºC |
| B) Especial Output: | 0-300V | Load Power Factor: | 0.8 |
| Dielectric Strength: | 1500V/1min | Efficiency: | >90% |
| Insulation Resistance: | ≥2MΩ | Waveform Distortion: | No additional waveform distortion |
