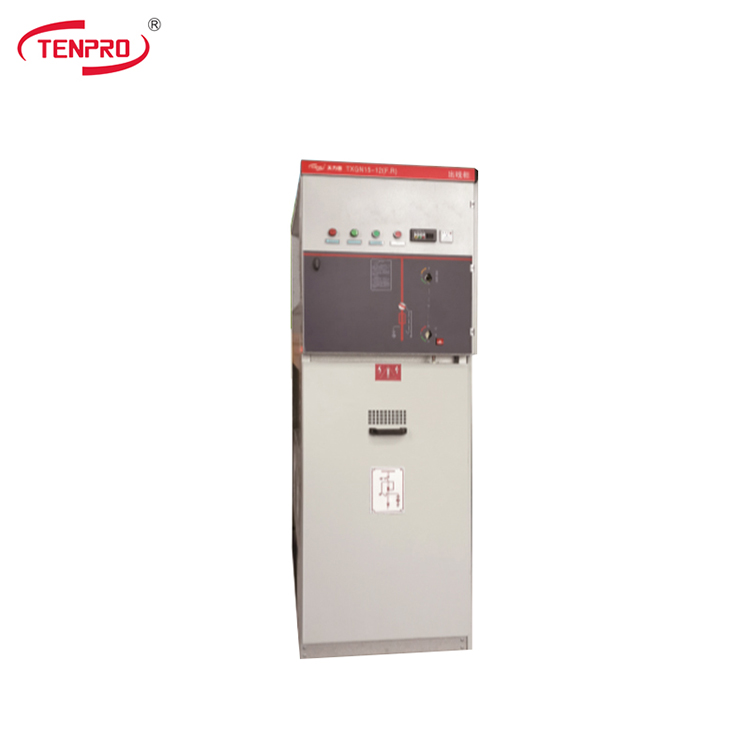

TENPRO TXGN15-12(F R) High Voltage ring network cabinet SF6 cabinet
Inquire NowDescription
The TENPRO TXGN15-12(F R) High Voltage Ring Network Cabinet is a state-of-the-art SF6 cabinet designed for efficient and safe electrical distribution. Utilizing superior SF6 gas as an arc-extinguishing insulating medium, this cabinet features a compact and lightweight design, making it easy to install and operate. Its innovative structure ensures enhanced safety and reliability, widely recognized in 10 kV power supply and distribution systems.
This cabinet is built with user convenience in mind. Its standardized design allows for versatile wiring schemes, accommodating intelligent control units for enhanced functionality. The operational mode is simplified, featuring a single-line diagram and an analog display for easy monitoring of internal components. The interlocking mechanisms prevent misoperation, ensuring a safe and efficient user experience.
Constructed from high-quality imported aluminum and zinc plates, the cabinet undergoes a plastic spraying process for added durability. It is equipped with a main earthing busbar for seamless connection to adjacent cabinets and features a pressure relief door to manage gas discharge safely during internal arc occurrences. The precise engineering of the TXGN15-12 ensures robust performance and operational safety under demanding conditions.
Specifications
| Attribute | Details |
|---|---|
| Material | Imported Aluminum and Zinc Plate |
| Insulating Medium | SF6 Gas |
| Application | 10 kV Power Supply and Distribution Systems |
| Cabinet Features | Compact, Lightweight, User-friendly Design |
| Safety Features | Interlocking Mechanisms, Pressure Relief Door, Main Earthing Busbar |
Additional Information
- Easy installation and operation with detailed instructions.
- Designed to prevent misoperation through effective interlocking features.
- Multiple insulated intervals enhance operational safety.
