Tensile Enhanced Nylon Cable Ties
Inquire NowDescription
Tensile Enhanced Nylon Cable Ties are expertly designed self-locking ties made from high-quality Nylon 66, certified by UL with a flame rating of 94V-2. These cable ties provide exceptional tensile strength and are suitable for a wide range of applications including color coding, identification, packaging continuity, and bundling aesthetics. They are ideal for use in various industries such as electrical, electronic, lighting, hardware, pharmaceutical, and chemical sectors.

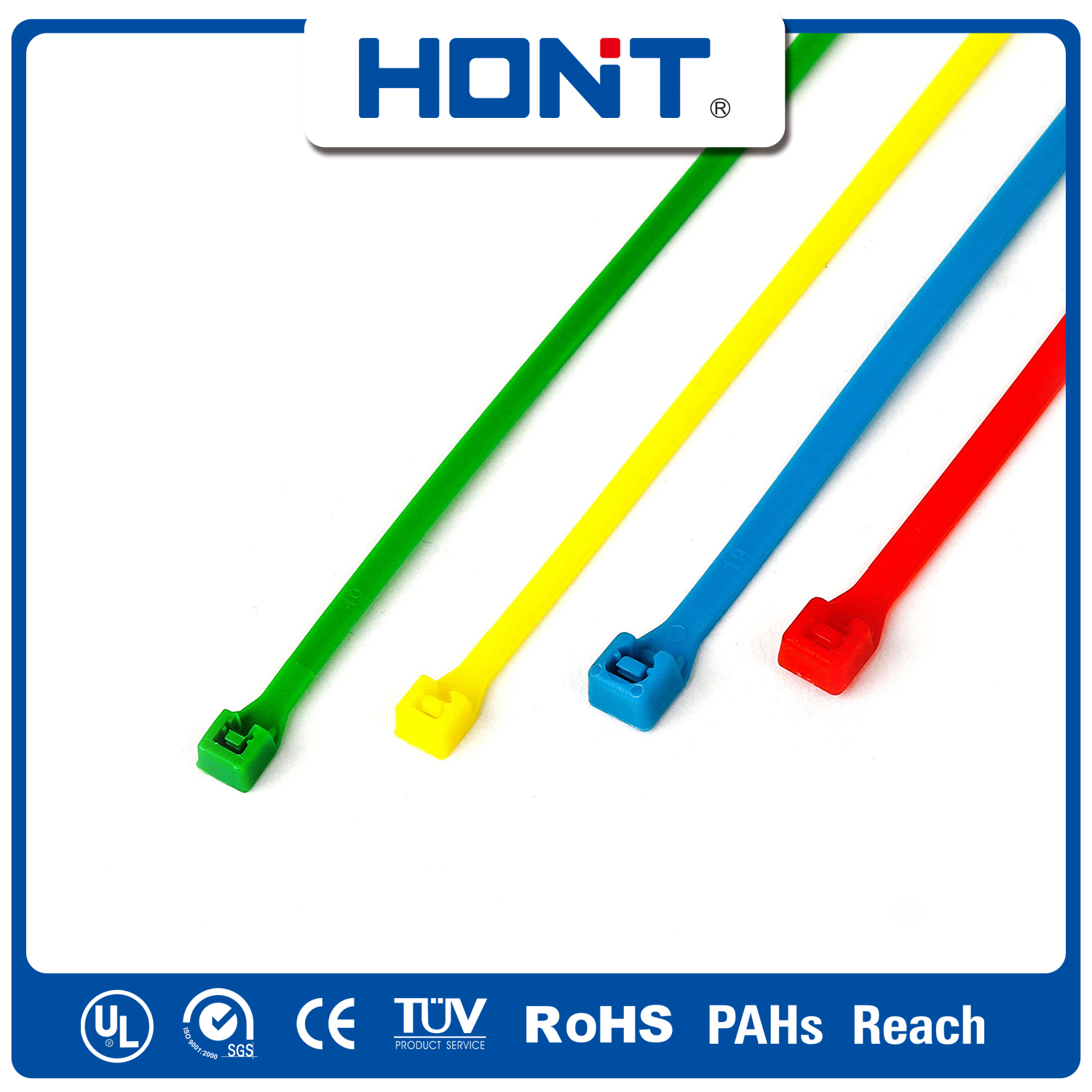

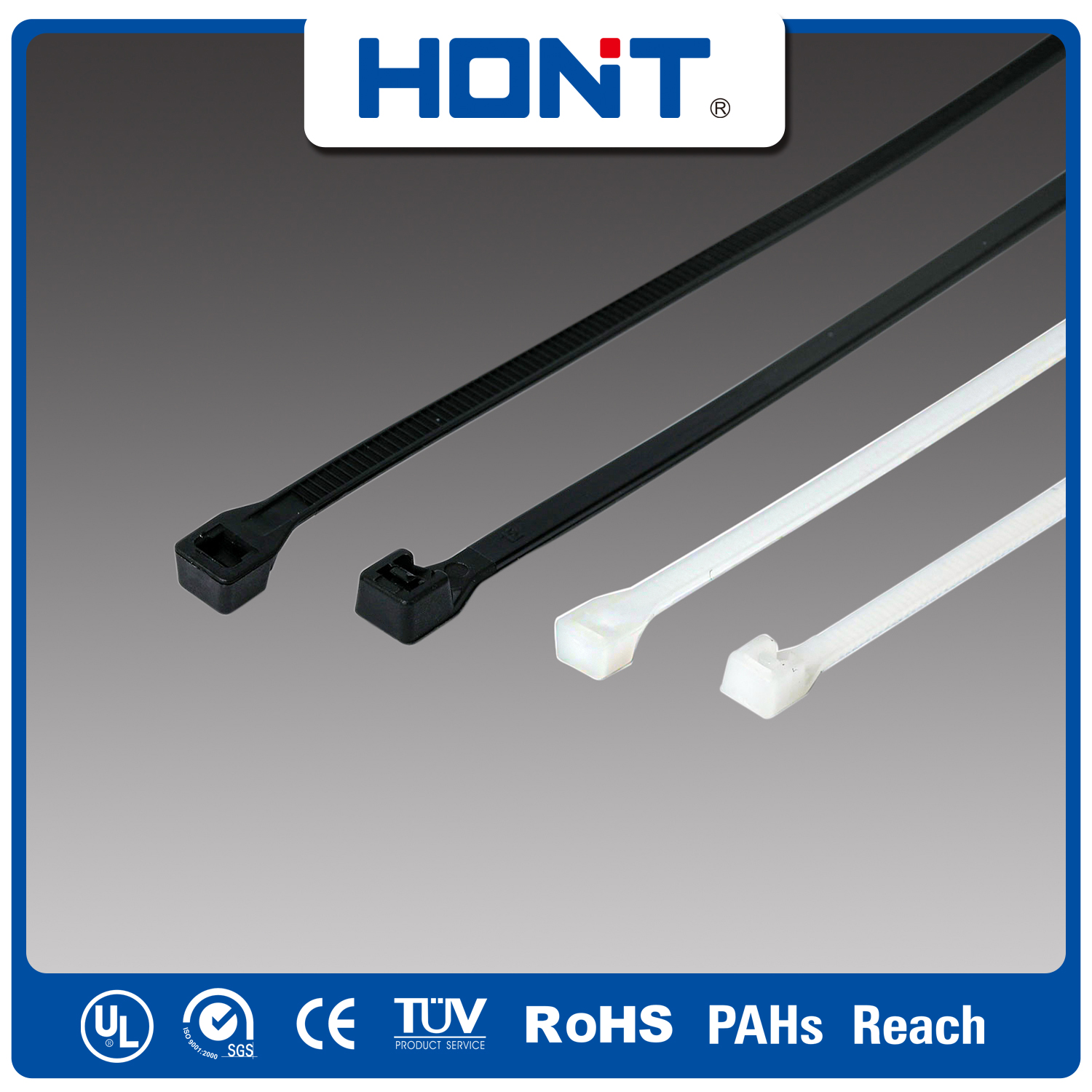

With a temperature resistance ranging from -40°C to 80°C, and capable of withstanding short bursts of up to 140°C, these cable ties offer reliable performance in demanding environments. Available in multiple colors including natural (white) and UV black, they are designed to resist heat and erosion, ensuring long-lasting use without aging.

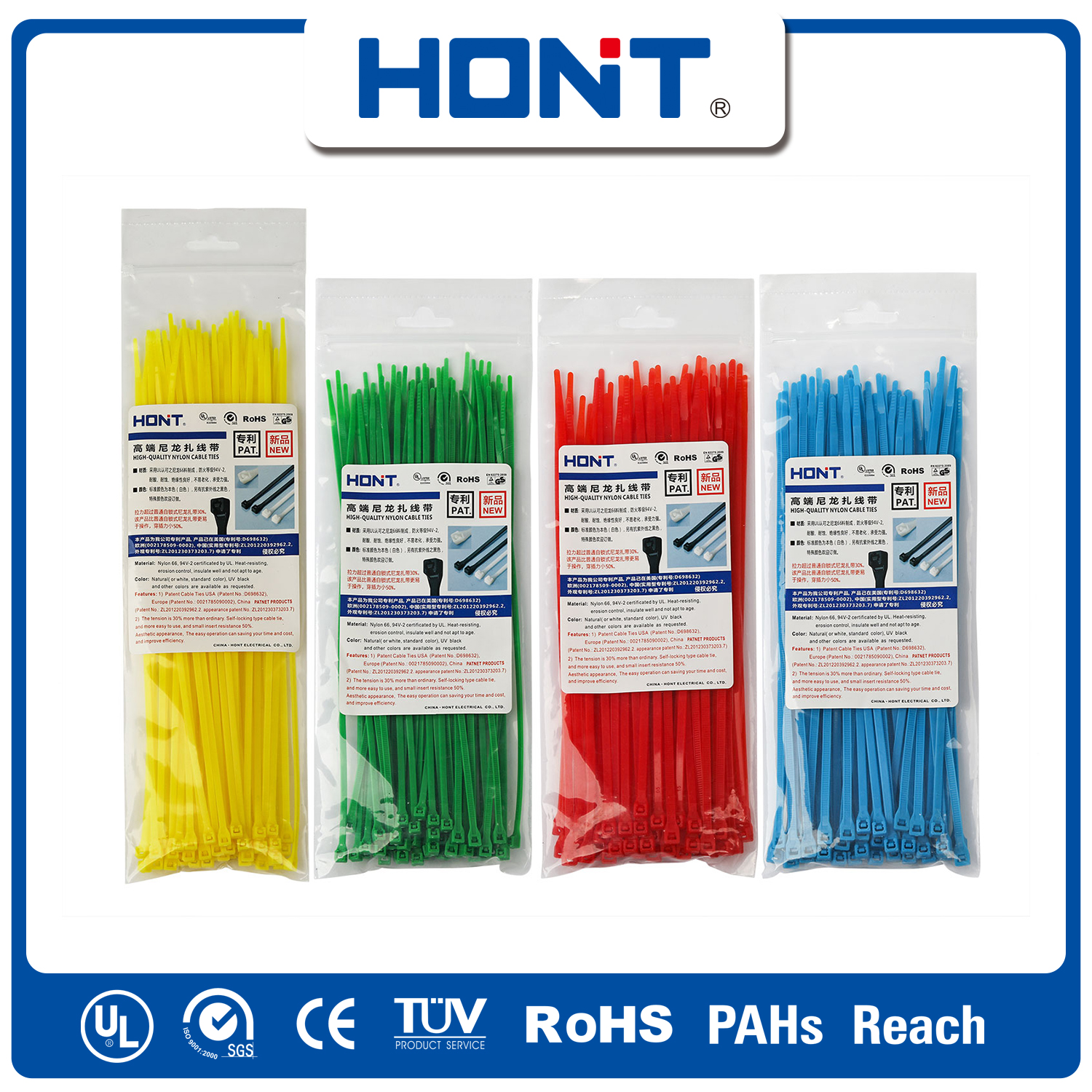

Each package contains 100 pieces, or can be customized according to customer requirements.
Specifications
| Item No. | Length | Width | BUNDLE DIAMETER (mm) | TENSILE STRENGTH | ||
|---|---|---|---|---|---|---|
| INCH | mm | mm | LBS | KGS | ||
| HTA-2.5X60 | 2.4″ | 60 | 2.5 | 2-11 | 24 | 11 |
| HTA-2.5X80 | 3.2″ | 80 | 2.5 | 2-16 | 30 | 14 |
| HTA-2.5X100 | 4.0″ | 100 | 2.5 | 2-22 | 40 | 18 |
| HTA-2.5X120 | 4.7″ | 120 | 2.5 | 2-30 | 50 | 22 |
| HTA-2.5X150 | 6.0″ | 150 | 2.5 | 2-35 | 60 | 27 |
| HTA-2.5X160 | 6.3″ | 160 | 2.5 | 2-40 | 70 | 32 |
| HTA-2.5X200 | 8.0″ | 200 | 2.5 | 3-50 | 80 | 36 |
| HTA-3.6X110 | 4.3″ | 110 | 3.4 | 3-25 | 50 | 22 |
| HTA-3.6X140 | 5.5″ | 140 | 3.4 | 3-33 | 60 | 27 |
| HTA-3.6X150 | 6.0″ | 150 | 3.4 | 3-35 | 70 | 32 |
| HTA-3.6X180 | 7.1″ | 180 | 3.4 | 3-42 | 80 | 36 |
| HTA-3.6X200 | 8.0″ | 200 | 3.4 | 3-50 | 90 | 41 |
| HTA-3.6X250 | 10″ | 250 | 3.4 | 3-65 | 100 | 45 |
| HTA-3.6X280 | 11″ | 280 | 3.4 | 3-70 | 110 | 50 |
| HTA-3.6X300 | 12″ | 300 | 3.4 | 3-80 | 120 | 55 |
| HTA-3.6X370 | 14.6″ | 370 | 3.4 | 3-105 | 130 | 59 |
| HTA-4.8X120 | 4.7″ | 120 | 4.4 | 3-30 | 65 | 29 |
Additional Information
These cable ties are designed to be versatile and can be used in various applications. They are recommended for bundling cables, wires, and other items in both industrial and commercial settings. When using, ensure that the ties are appropriately sized for your specific application to achieve optimal performance.
