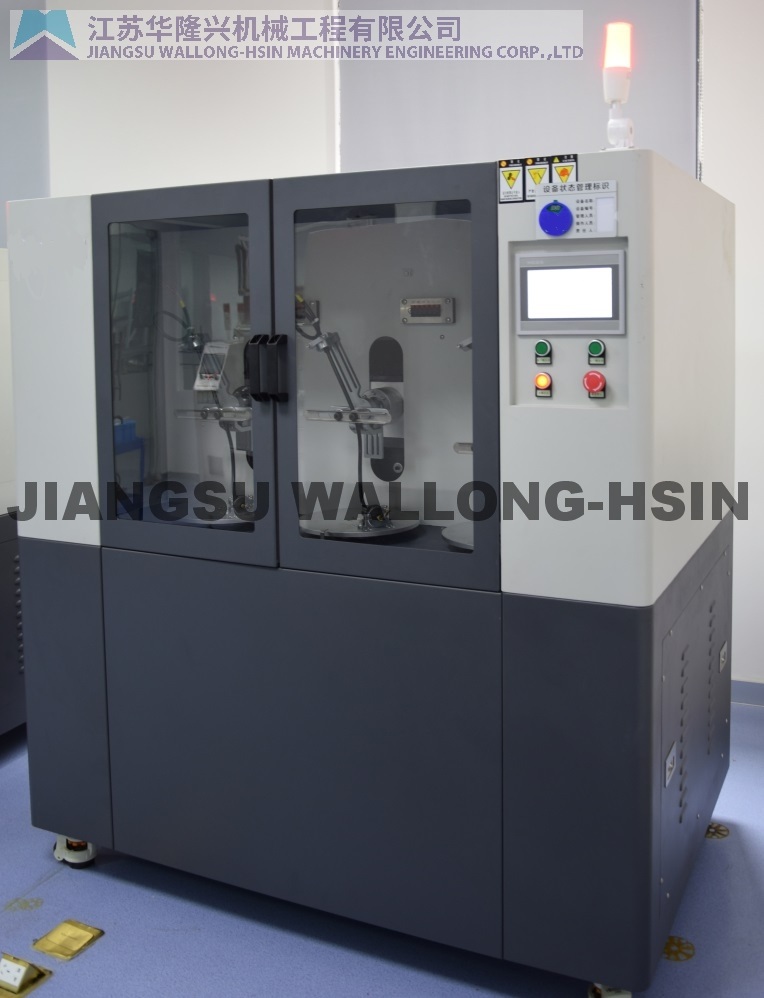

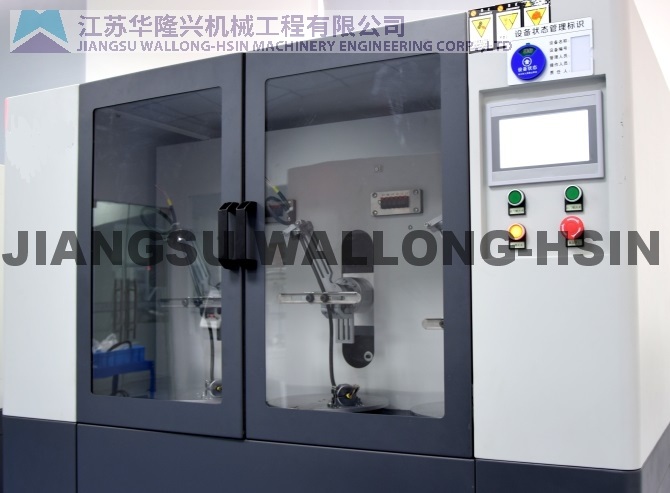

TH-5814 Cable 3D Torsion Testing Machine
Inquire NowDescription
The TH-5814 Cable 3D Torsion Testing Machine is an advanced testing solution designed for high flexible cable testing requirements, complying with standards such as TUV, VDE, and UL. This machine features a composite torsion-bending combined synchronous test structure, making it ideal for conducting repeated torsion-bending tests on metal wires. It effectively detects performance and defects in metal wires subjected to plastic deformation during testing.
Primarily utilized in industries such as quality supervision, metal manufacturing, machinery, and cable production, this machine is versatile enough to accommodate wires of varying diameters, thanks to its special fixtures. The TH-5814 is engineered for precision, reliability, and user convenience.
Main Functions:
- PLC Touch Screen Display: Monitors test parameters, conditions, and real-time performance metrics.
- Unattended Operation: Automatically detects sample disconnection and powers down for safety.
- Special Fixtures: Customizable clamping fixtures for different cable diameters.
- High-Performance Components: Equipped with top-tier imported components for smooth operation and longevity.
- Online Monitoring: Supports simultaneous monitoring of multiple wire pairs, enhancing efficiency.
- Expandable Device: Connects to multi-channel resistance monitors for comprehensive testing.
Specifications
| Attribute | Details |
|---|---|
| Test Stations | 3 (synchronous torsion-bending test or independent control) |
| Sample Diameter | 1.0-30mm |
| Test Speed | 0 ~ 60 times/minute (adjustable) |
| Bending Angle | ±12° (digital settings) |
| Torsion Angle | ±360° (digital settings) |
| Distance Between Points | 100-300 mm (adjustable) |
| Dimensions | W1500 x D1000 x H1650 mm |
| Power Supply | 220V, 50/60Hz, 10A |
Additional Information
The TH-5814 Cable 3D Torsion Testing Machine is constructed from high-quality materials, ensuring durability and reliability in demanding testing environments. Its user-friendly touch screen interface simplifies operation while providing comprehensive monitoring capabilities. This machine is essential for manufacturers and quality control professionals seeking to maintain high standards in cable and wire production.
