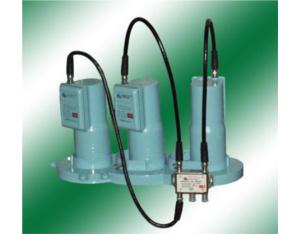

THREE LNBF IN ONE DISH(FOR THREE SATELLITE)
Inquire NowDescription
The THREE LNBF IN ONE DISH is an innovative solution designed for users who require access to multiple satellite signals through a single dish. This advanced device enables you to connect up to three satellites seamlessly, making it an essential component for satellite television enthusiasts. With its robust features and superior performance, you can enjoy uninterrupted viewing with excellent clarity and quality.
The model DP-3in1 is engineered to support a wide input frequency range, ensuring compatibility with various satellite systems. Its DiSEqc switching technology facilitates easy selection between satellites, promoting convenience and flexibility in usage. This product is built to withstand challenging environmental conditions, making it suitable for outdoor installations.
Specifications
| Attribute | Details |
|---|---|
| MODEL | DP-3in1 |
| SWITCHING | DiSEqc-A(1)-B(2)-C(3) |
| INPUT FREQUENCY | 3.4~4.2 GHz |
| L.O. FREQUENCY | 5.15 GHz ± 1 MHz |
| STABILITY | ±2 MHz (-40 ℃ ~ +70 ℃) |
| L.O. PHASE NOISE | -55 dBc/Hz@1KHz -85 dBc/Hz@10KHz -105 dBc/Hz@100KHz |
| OUTPUT FREQUENCY | 950~1750 MHz |
| CONVERSION GAIN | 65 dB (TYP) |
| GAIN FLATNESS | ±0.5 dB/36 MHz |
| NOISE FIGURE | 17°K |
| INPUT V.S.W.R | 2.5:1 |
| OUTPUT V.S.W.R | 2.5:1 |
| LOCAL LEAKAGEAT INPUT | -45 dBm |
| IMAGE REJECTION | 50 dB |
| OUTPUT POWER | + 5 dBm (AT 1 dB COMPRESSION) |
| CROSS POLAR ISOLATION | 23dB MIN |
| DC SUPPLY VOLTAGE | 11-14.5 V (V), 15.5-22 V (H) |
| SUPPLY CURRENT | 130 mA (MAX) |
| OPERATING TEMPERATURE | -40 ℃ ~ +70 ℃ |
| RELATIVE HUMIDITY | 0%~95% |
| RF INPUT CONNECTER | WAVE GUIDE WC-229 |
| IF OUTPUT CONNECTER | “F” TYPE FEMALE |
| OUTPUT IMPEDANCE | 75 OHMS |
| The color of LNB’s shape is up to you | |
Additional Information
This versatile device is not only effective but also customizable based on your preferences. The sleek design allows for easy installation and adaptability to various settings.
