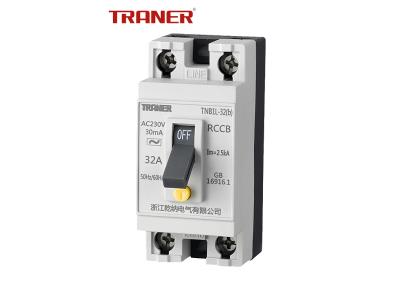

TNB1L-32(h) 32A, High Quality NT50 ELCB with 16A 20A 25A 32A
Inquire NowDescription
The TNB1L-32(h) represents the pinnacle of safety in electrical circuits with its advanced Earth Leakage Circuit Breaker (ELCB) functionality. This mini safety breaker not only adheres to stringent international standards (IEC/EN 61008-1, GB 16916.1) but also offers exceptional protection against ground faults, ensuring electrical safety in various applications. With its compact design and easy assembly, the TNB1L-32(h) is perfect for both residential and commercial settings. The patented design guarantees reliability and efficiency, making it a vital component for safeguarding electrical installations.
Specifications
| Attribute | Details |
|---|---|
| Product Code | TNB1L-32(h) |
| Protection | Earth leakage protection (Ground fault protection) |
| Rated Current | 16A, 20A, 25A, 32A |
| Rated Residual Current |
Operating, IΔn: 15mA, 30mA Non-operating, IΔno: 7.5mA, 15mA |
| Poles | 2 poles |
| Rated Voltage | 110V AC, 220V AC |
| Residual Current Off-Time | 0.1s |
| Standard | IEC/EN 61008-1, GB16916.1 |
| Approval | CE, CCC |
| Type of Trip | Ground fault – Electronic |
| Rated Switch-On Breaking Capacity, Im | 500 A |
| Rated Limited Short Circuit Current, Inc | 2.5 KA |
| Endurance |
Electrical: 1000 operations Mechanical: 2000 operations |
| Material of Body |
Base: Bakelite / Plastic Cover (Grey): Plastic Cover (Black): Bakelite |
| Type of Operation | AC |
| Dimensions (Length x Width x Height) | 70mm x 32mm x 53mm |
Additional Information
- Advantages:
- Compact size for easy installation.
- User-friendly assembly process.
- Innovative patented design for enhanced safety.
