Topkit/hammerhead tower crane
Inquire NowDescription

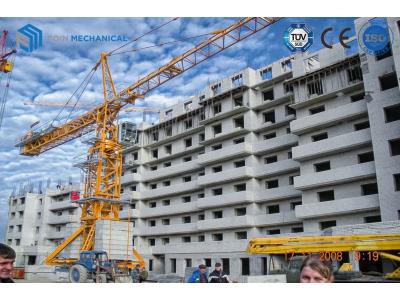

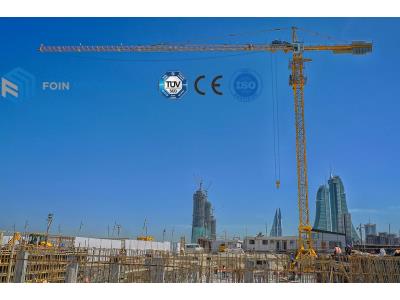

The Topkit Tower Crane combines traditional design with robust functionality, making it an essential asset for construction projects requiring high lifting capabilities. Featuring a classic appearance, this crane can handle a maximum lifting capacity ranging from 4 to 50 tons. With an impressive working radius of 30 to 70 meters, it caters to a variety of construction needs, while its maximum free height reaches up to 70 meters and a towering maximum height of 280 meters. The mast section is compatible with both POTAIN and LIEBHERR models, ensuring versatility in its application. This crane’s A-shaped or #-shaped tower cap is ingeniously connected to the boom and balance jib via a pull rod, reflecting the classic structural design. While assembly and disassembly may be more complex compared to topless tower cranes, its suitability for low installation density environments makes it a reliable choice for various construction sites.
Hot-selling Models: TK4810; TK5013; TK5513; TK6015; TK6024; TK7015
Specifications
| Model | Jib Length (m) | Max Load (t) | Tip Load (t) | Free Height (m) | Max Height (m) | Mast Section Type |
|---|---|---|---|---|---|---|
| TK900 | 70 | 32/50 | 11/9.1 | 70 | 280 | split |
| TK7050 | 70 | 25 | 5.0 | 60 | 220 | split |
| TK7032 | 70 | 12/16 | 3.2 | 60 | 220 | split |
| TK7027 | 70 | 12/16 | 2.7 | 60 | 220 | split |
| TK7015 | 70 | 10/12 | 1.5 | 60 | 236 | split |
| H3 36B | 60 | 10/12 | 3.6 | 60 | 236 | split |
| TK6024 | 60 | 10/12 | 2.4 | 40/60 | 180/236 | fixed/split |
| TK6018 | 60 | 8/10 | 1.8 | 40/60 | 160 | fixed/split |
| TK6015 | 60 | 8/10 | 1.5 | 40/60 | 160 | fixed/split |
| TK6013 | 60 | 6/8 | 1.3 | 40/60 | 160 | fixed/split |
| TK6010 | 60 | 6 | 1.0 | 40 | 145 | fixed/split |
| TK5513 | 55 | 6/8 | 1.3 | 40/44 | 145 | fixed/split |
| TK5510 | 55 | 6 | 1.0 | 40 | 132 | fixed/split |
| TK5013 | 50 | 6 | 1.3 | 40 | 132 | fixed/split |
| TK5010 | 50 | 4/5 | 1.0 | 40 | 120 | fixed/split |
| TK4513 | 45 | 4 | 1.3 | 40 | 120 | fixed/split |
| TK4810 | 48 | 4 | 1.0 | 40 | 145 | fixed/split |
