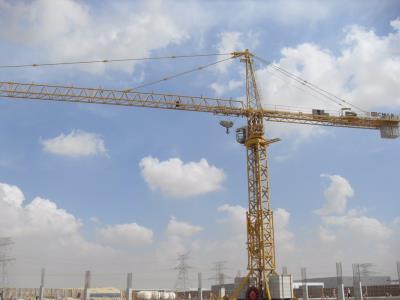

Tower Crane TC7021
Inquire NowDescription
The Tower Crane TC7021 represents the pinnacle of modern engineering, integrating the latest technological advancements in its design. This crane is engineered to meet global standards in safety, efficiency, and reliability, making it a top choice for construction projects of any scale. Its structure has been meticulously designed using three-dimensional software, ensuring high safety and optimal performance. With a maximum lifting height of 200 meters and a lifting capacity of 12 tons, the TC7021 is well-suited for heavy-duty tasks.
Specifications
| Attribute | Value |
|---|---|
| Independent height (m) | 54 |
| Max height with attachment (m) | 200 |
| Working range (m) | 40, 45, 50, 55, 60, 65, 70 |
| Min working range (m) | 3.1 |
| Max lifting capacity (t) | 12 |
| Tip load @ 70m (t) | 2.1 |
| Hoist mechanism falls | 2 |
| Lifting capacity (t) | 0-12 |
| Speed (m/min) | 0-85 |
| Motor | YZPBF250M1-4 45KW |
| Climbing speed (m/min) | 0.5 |
| Counterweight (t) | 21.3 |
| Mast section size (L×W×H) (m) | 2×2×3 |
| Working temperature (°C) | -40 to +60 |
| Power supply requirement (KVA) | 220KVA for generator, 235KVA for transformer booster |
| Cable type | 50mm2 (3+2, 5 cores) |
| Startup voltage & current | 380V × 0.95=361V 260A |
| Rated working voltage & current | 380V 150A |
Additional Information
For optimal performance and safety, ensure regular maintenance and inspections are performed on the TC7021. Following the manufacturer’s guidelines for operating conditions and load limits will help in extending the crane’s lifespan and efficiency.
