TPE Copper Lug, Naked Cable Accessories, Bare Terminal Connector
Inquire NowDescription

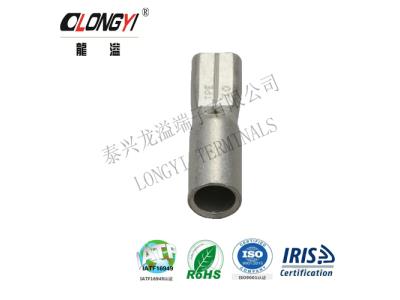

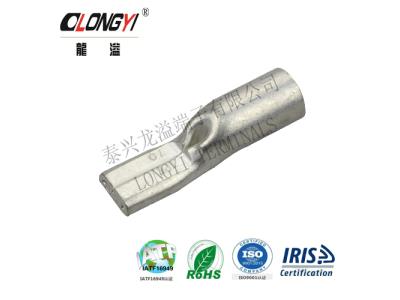

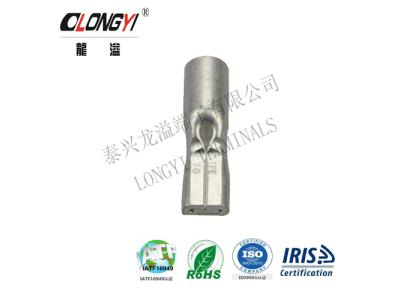

The TPE Copper Lug is an essential component designed for connecting copper conductors ranging from 50 to 240 mm² in power cables and electronic equipment. Crafted from 99.99% pure copper tube (T2), these lugs are tin-coated to enhance conductivity and durability. With a temperature range of -55°C to 150°C, they are ideal for various demanding applications including electrical cabinets, transformers, and renewable energy systems such as solar and wind power. Manufactured by Taixing Longyi Terminals Co., LTD, established in 1991, these copper lugs are produced in compliance with international standards, ensuring reliability and excellence in performance. The company is renowned for its extensive product range, which includes various types of copper lugs, terminals, and other copper products, trusted by over 800 prominent companies worldwide.
Specifications
| PART NO 2010-2012 |
PART NO 2008-2010 |
ITEM NO | DIMENSIONS | |||||
|---|---|---|---|---|---|---|---|---|
| φE | OD | ID | D | B | L | |||
| LY0009-0001 | LY009001 | TPE-50/8 | 8.5 | 12.6 | 9.8 | 15 | 22 | 50 |
| LY0009-0002 | LY009002 | TPE-50/10 | 10.5 | 12.6 | 9.8 | 15 | 22 | 50 |
| LY0009-0003 | LY009003 | TPE-70/8 | 8.5 | 14.7 | 11.5 | 15 | 24 | 55 |
| LY0009-0004 | LY009004 | TPE-70/10 | 10.5 | 14.7 | 11.5 | 15 | 24 | 55 |
| LY0009-0005 | LY009005 | TPE-95/8 | 8.5 | 16.9 | 13.5 | 15 | 27 | 60 |
| LY0009-0006 | LY009006 | TPE-95/10 | 10.5 | 16.9 | 13.5 | 15 | 27 | 60 |
| LY0009-0007 | LY009007 | TPE-120/8 | 8.5 | 19.9 | 15.6 | 21 | 31 | 65 |
| LY0009-0008 | LY009008 | TPE-120/10 | 10.5 | 19.9 | 15.6 | 21 | 31 | 65 |
| LY0009-0009 | LY009009 | TPE-150/10 | 10.5 | 20.9 | 16.5 | 21 | 33 | 72 |
| LY0009-0010 | LY009010 | TPE-150/12 | 12.5 | 20.9 | 16.5 | 21 | 33 | 72 |
| LY0009-0011 | LY009011 | TPE-185/10 | 10.5 | 23.7 | 18.8 | 26 | 35 | 75 |
| LY0009-0012 | LY009012 | TPE-185/12 | 12.5 | 23.7 | 18.8 | 26 | 35 | 75 |
| LY0009-0013 | LY009013 | TPE-240/10 | 10.5 | 26.2 | 21.2 | 26 | 42 | 85 |
| LY0009-0014 | LY009014 | TPE-240/12 | 12.5 | 26.2 | 21.2 | 26 | 42 | 85 |
Additional Information
The TPE Copper Lugs are manufactured under strict quality controls and meet various international standards such as ROHS, European CE, and American UL certification. With a production capacity exceeding several billion units annually and more than 2000 tons of copper processed, these lugs deliver superior quality and performance for your electrical connections.
