Description

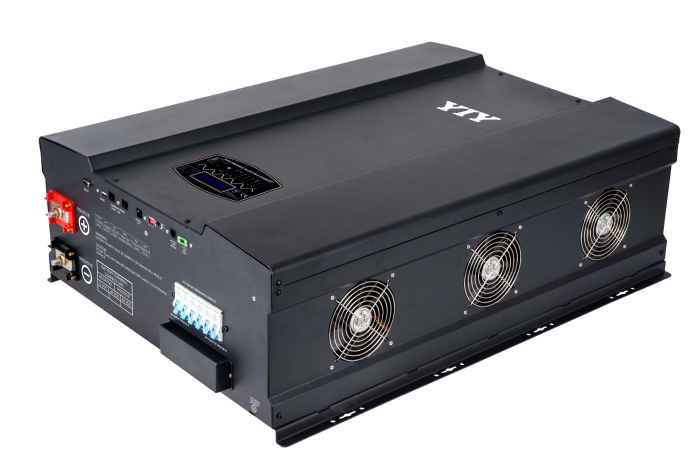

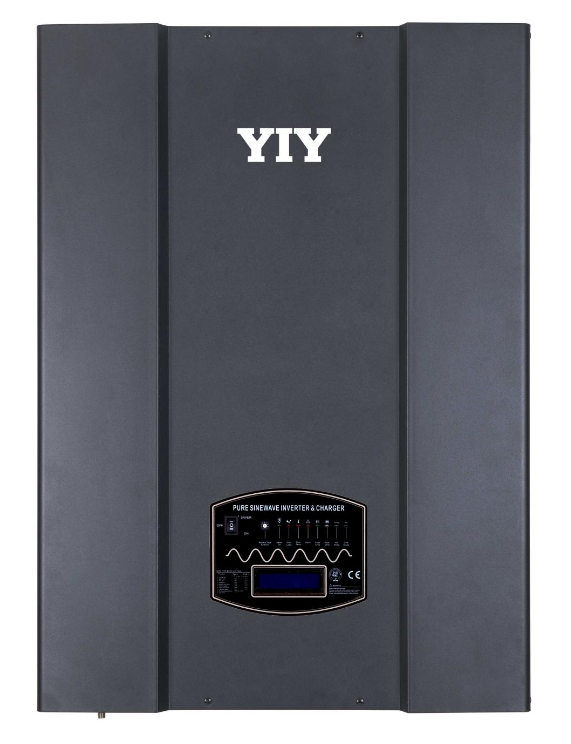

The TPP Low Frequency Solar Power Three Phase Big Power Inverter, with a capacity range from 3kW to 45kW, is engineered to provide high output performance while accommodating unbalanced loads. This inverter is designed with advanced features to ensure efficient power management in renewable energy systems. It operates with a minimal idle consumption of less than 100W in search mode when the power saver is activated, making it a cost-effective choice for solar power applications. With multiple DC input voltage options of 12VDC, 24VDC, and 48VDC, this inverter supports versatile installations. Its impressive maximum charge current of up to 450A (150A x 3) ensures rapid battery replenishment, making it ideal for demanding energy needs.

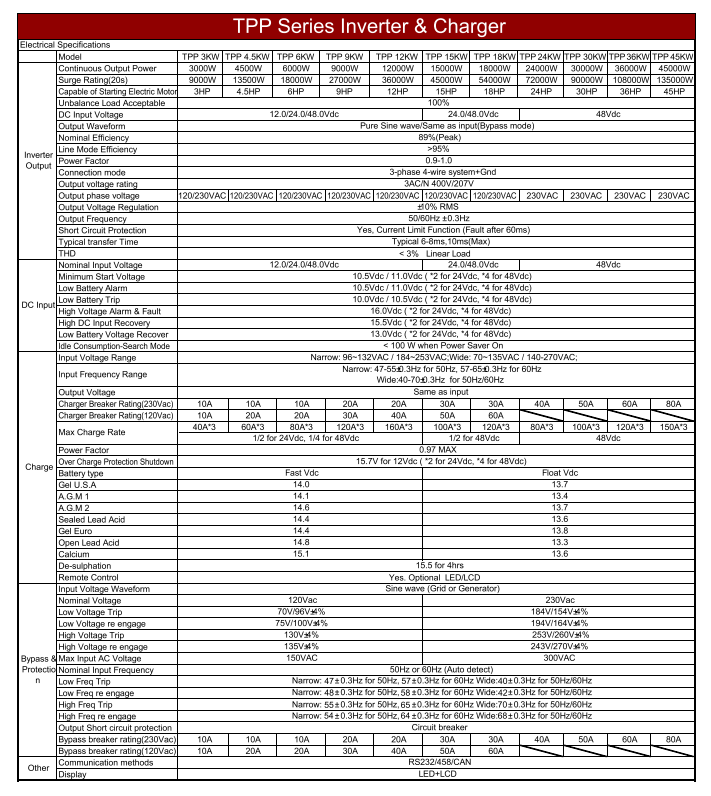

Specifications
| Feature | Details |
|---|---|
| Output Capacity | Up to 45 kW |
| Load Type | Unbalance Load Acceptable |
| Idle Consumption | Less than 100 W (Power Saver On) |
| DC Input Voltage | 12VDC / 24VDC / 48VDC |
| Charge Rate | Max charge current up to 450A (150A x 3) |

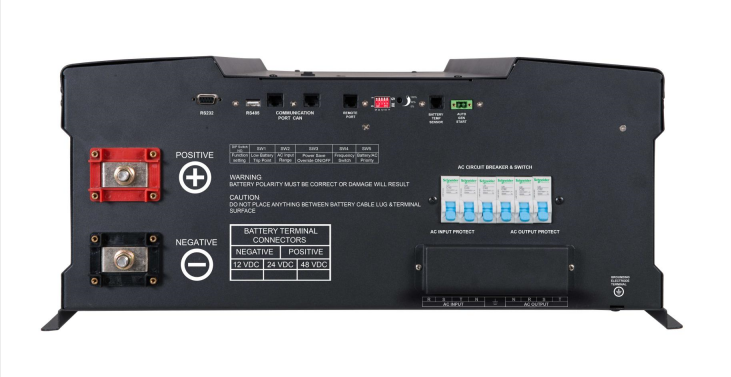

| Communication Ports | RS 232, RS 485, CAN port |
| MPPT Controller | Advanced MPPT solar charger controller available |
| Display | LED + LCD Display |
| Remote Control | Optional (LED or LCD remote) |
| Output Waveform | Pure Sine Wave Output |
| THD | Less than 3% under full linear load (battery low) |
| Battery Recovery Point | 13VDC, dedicated for renewable energy systems |
Additional Information
- Intelligent communication protocols for enhanced monitoring and control.
- Designed for optimal performance in renewable energy applications.
