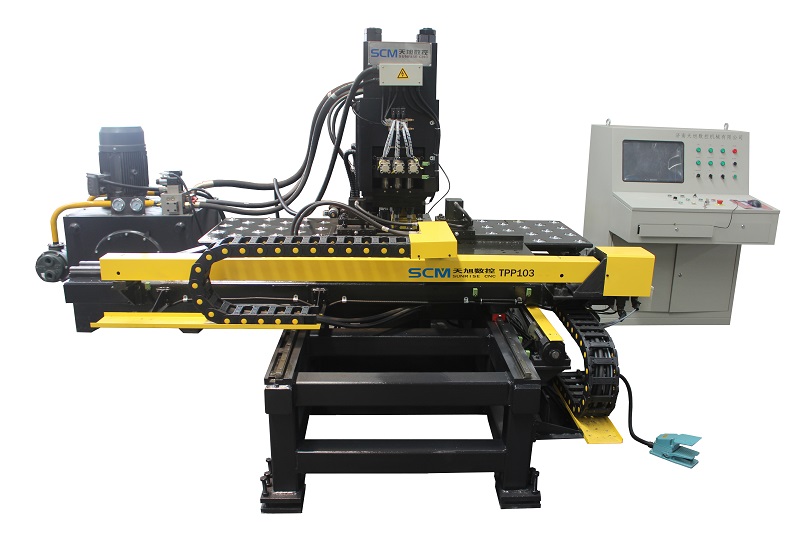

TPP103 CNC PLATE PUNCHING MACHINE
Inquire NowDescription
The TPP103 CNC Plate Punching Machine is a specialized tool designed for the efficient punching and marking of steel plates, primarily for the steel tower industry but also applicable to various other fields. Its robust construction features a C-type plate welding frame, ensuring optimal rigidity and a spacious handling area, catering to various workpiece sizes.
Key Features:
- The machine is equipped with three die-stations, comprising two for punching and one for marking, with automatic switching capabilities.
- Utilizes advanced CNC technology and servo motor infeeding to enhance operational efficiency and maintain precision.
- Modular assembly of key functional components facilitates easy repairs and maintenance.
- Enables simultaneous punching and marking on a single plate for increased productivity.
- Programming is user-friendly, accepting CAD drawings and files generated by lofting software, including NC1 format from TEKLA.
- Features a self-diagnosis function for failure detection.
- X and Y axes are driven by servo motors, ball screws, and linear guides, ensuring superior precision.
Specifications
| Attribute | Details |
|---|---|
| Model | TPP103 |
| Max size of work piece L×W (mm) | 1500×800 |
| Max. diameter of punching (mm) | Φ26 |
| Plate thickness of punching (mm) | 5～25 (Q 235) |
| Punching force (KN) | 1000 |
| Marking force (KN) | 800 |
| Min. distance between hole and plate edge (mm) | 25 |
| Dimensions of characters (mm) | 14×10×19 |
| Quantity of character | 12 |
| Die-stations | 3 |
| Programming mode | Auto CAD or lofting software |
| Overall dimensions L×W×H (mm) | About 3200×3000×1900 |
| Net Weight (kg) | About 5420 |
Additional Information
The hydraulic station of the TPP103 employs a dual-pump and single motor system, offering faster punching speeds compared to competitors, thus enhancing workshop efficiency. Additionally, the sleeve-type coupling for all pipelines prevents leakage, while the main communication cable is a shielded twisted pair from a world-renowned brand, ensuring excellent interference resistance.
