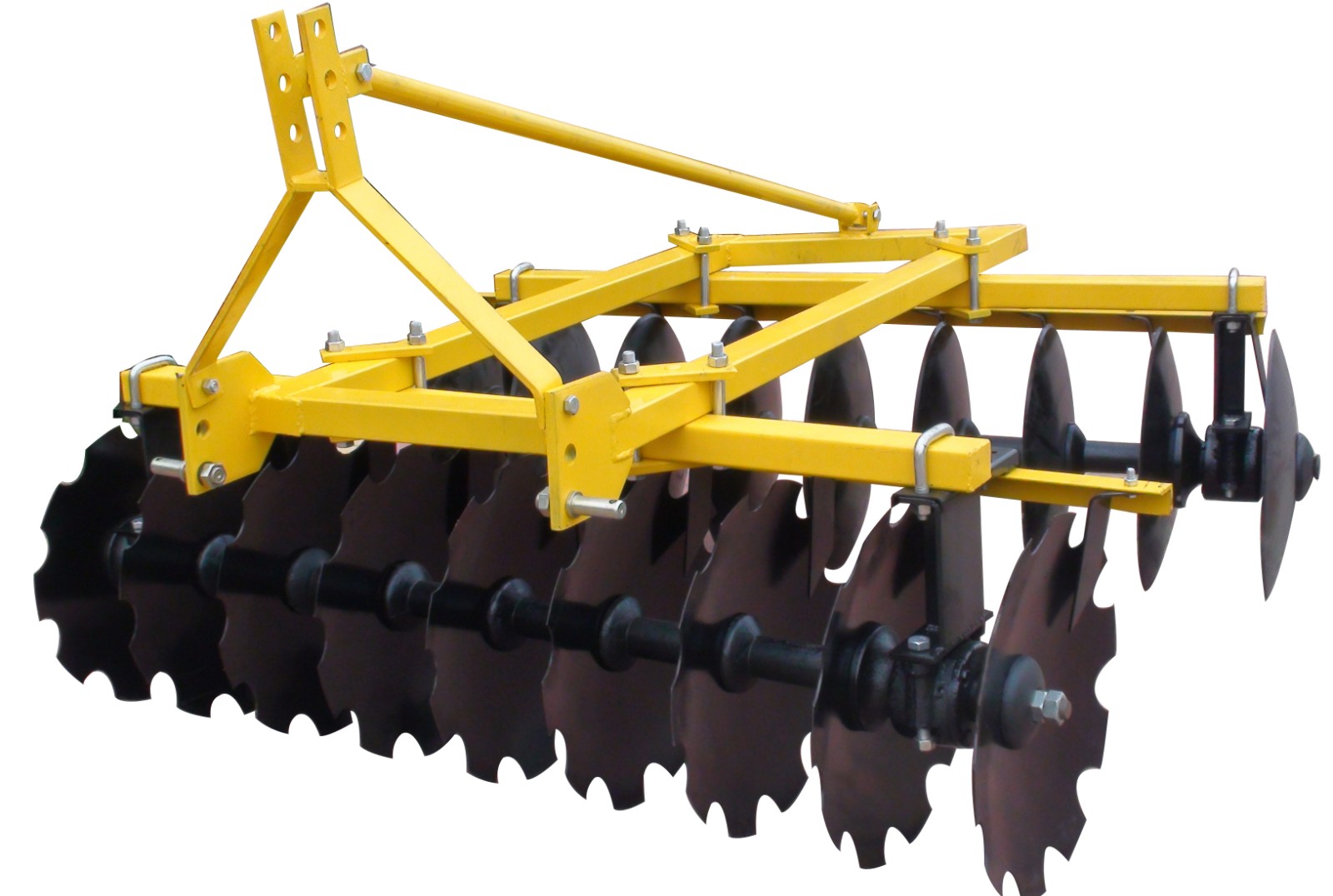

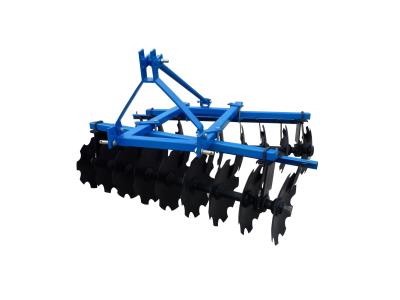

tractor mounted light duty offset disc harrow
Inquire NowDescription
The tractor mounted light duty offset disc harrow is an essential tool for farmers looking to optimize their tillage process. Designed for tractors with a horsepower range of 15 to 60hp, this versatile equipment serves multiple purposes. It effectively cleans crop residue before tillage, breaks hardened soil, and facilitates the return of chopped straw to the earth. Moreover, it excels in crushing soil after tillage and leveling the land to ensure a smooth and even surface.
Built for efficiency and durability, the small tractor disc harrow boasts impressive productivity and power utilization. Its cutting and shattering capabilities make it suitable for heavy clay soils, wastelands, and weedy fields. Experience enhanced soil structure and preparation with this robust implement.
Specifications
| Model | Unit | 1BQX-1.1 | 1BQX-1.3 | 1BQX-1.5 | 1BQX-1.7 | 1BQX-1.9 | 1BQX-2.3 |
|---|---|---|---|---|---|---|---|
| Working Width | mm | 1100 | 1300 | 1500 | 1700 | 1900 | 2300 |
| Working Depth | mm | 120 | |||||
| Q’ty of Disc | 12 | 14 | 16 | 18 | 20 | 24 | |
| Total Weight | kg | 200 | 220 | 240 | 260 | 310 | 360 |
| Matched Power | hp | 15 | 18 | 25 | 30 | 35 | 40 |
Additional Information
- Material of plough disc: 65Mn spring steel
- Robust bearing assembly for enhanced durability
- Fitted scraper for each disc blade to maintain cleanliness
- Working depth can be adjusted freely to suit various soil conditions
