tractor mounted Potato and Garlic Harvester
Inquire Now
It is a tractor mounted garlic harvester for 20-30hp tractor.
Dig the garlic safely without cutting or damaging single potato.
Not to affect the next crop’s growth.

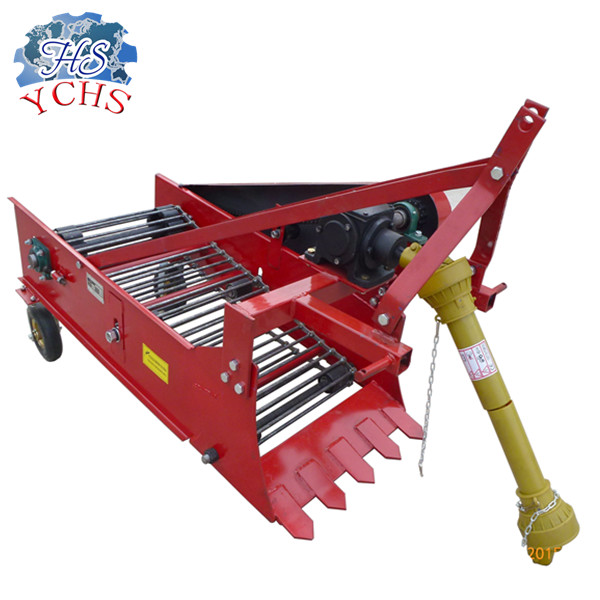

4U series of potato harvester is mounted with the tractor of 12-60hp with back power and side power output shaft.The working principle of this potato digger is that the digging shovel digs up the soil and crops through the impetus of the tractor. And the digging shovel make crop and soil separate though vibration sieve, the soil first drip down from the clearance of vibration sieve, finally the crop crashed down on to the road from the back.
Technical Specification
?It is a tractor mounted garlic harvester for 20-30hp tractor.
?Dig the garlic safely without cutting or damaging single potato.
?Not to affect the next crop’s growth.
|
Model |
Unit |
4U-1 |
4U-2 |
|
Harvesting rows |
1 |
2 |
|
|
Working width |
mm |
600 |
900/1300/1500 |
|
Working depth |
mm |
100-250 |
|
|
PTO Rotation speed |
r/min |
540-720 |
|
|
PTO shaft spline |
6 spline |
||
|
Total weight |
kg |
160 |
260/335/390 |
|
Matched power |
hp |
20-30 |
40/50/70 |
|
Linkage |
Three-point suspension I type |
Three-point suspension II type |
|
